Cansec MAP1 - Output Wiring

MAP1 Page 19 of 31
Installation Manual June 2018 • Rev. 1.6
 Output Wiring

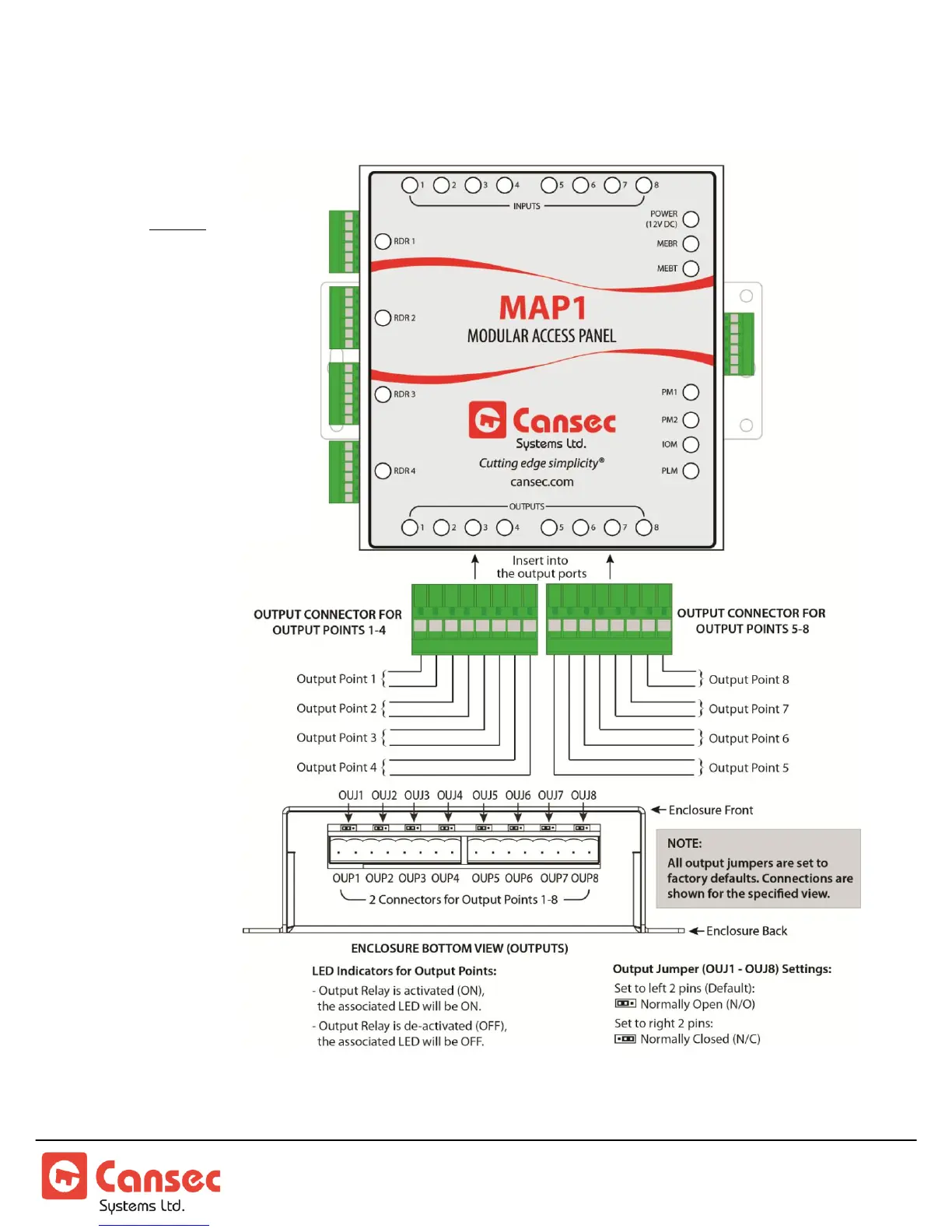

Figure 12
Caution: When moving
the MSJx - MicroShunt
jumpers (small and easily
dropped, accuracy is
important during
movement) it is advisable
to set up the MAP1
Controller prior to
attaching it to a surface.
It is highly recommended
that the MAP1 be
removed from the
attached surface to do a
change of the MSJx
position.
