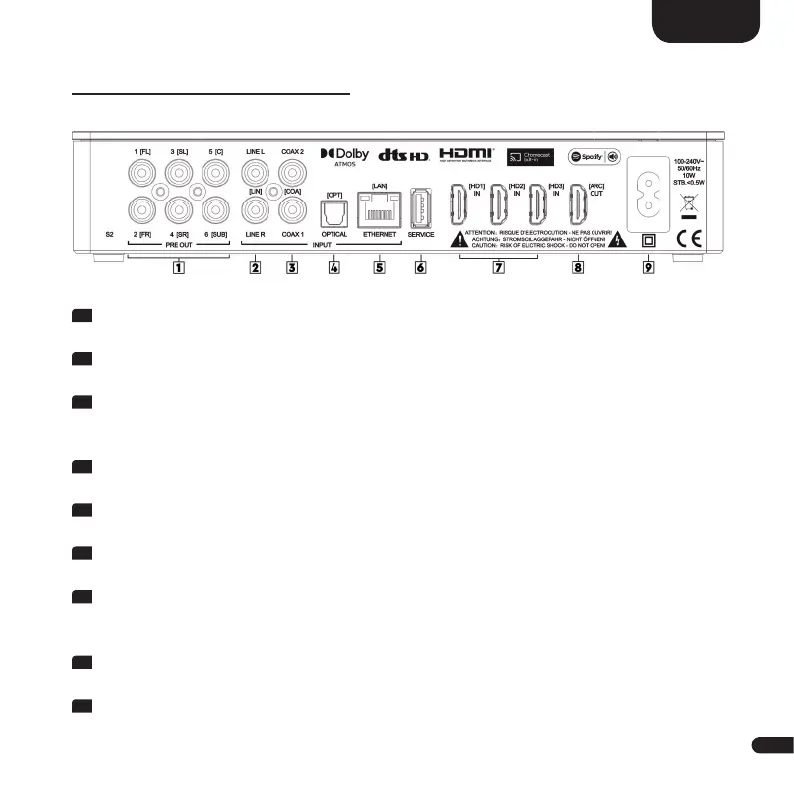

PRE OUT 1–6 (Preamplifi er Outputs)
For the connection of active loudspeakers and/or power amplifi ers.
2
LINE L + LINE R / LIN / [AUX]
For the connection to the analog line output of your playback device.
3
COAX 1 / CX1 / [DVD] and COAX 2 / CX2 / [PAD]
Two individual inputs for the connection to the coaxial digital audio output of
your TV or digital device.
4
OPTICAL / OPT / [CD]
For connecting to the optical audio output of your TV or digital device.
5
ETHERNET / LAN / [NET]
For the connection to the internet via network cable (RJ45, 8-pin).
6
SERVICE
For service purposes, only! No charging, no audio or video playback!
7
HDMI IN / HD1/[BDP], HD2/[SAT], HD3/[PS] (supports 3D, 4K, HDR,
HDCP 2.2, CEC)
For the connection to the HDMI
®
output of your digital devices.
8
HDMI OUT / ARC / [TV] (supports eARC/ARC, 3D, 4K, HDR, HDCP2.2, CEC)
For the connection to the HDMI
®
(eARC/ARC) input of your TV.
9
POWER INPUT
For the connection to the mains supply (IEC C8).
CONNECTION TERMINAL
