Maintenance
-66-
5

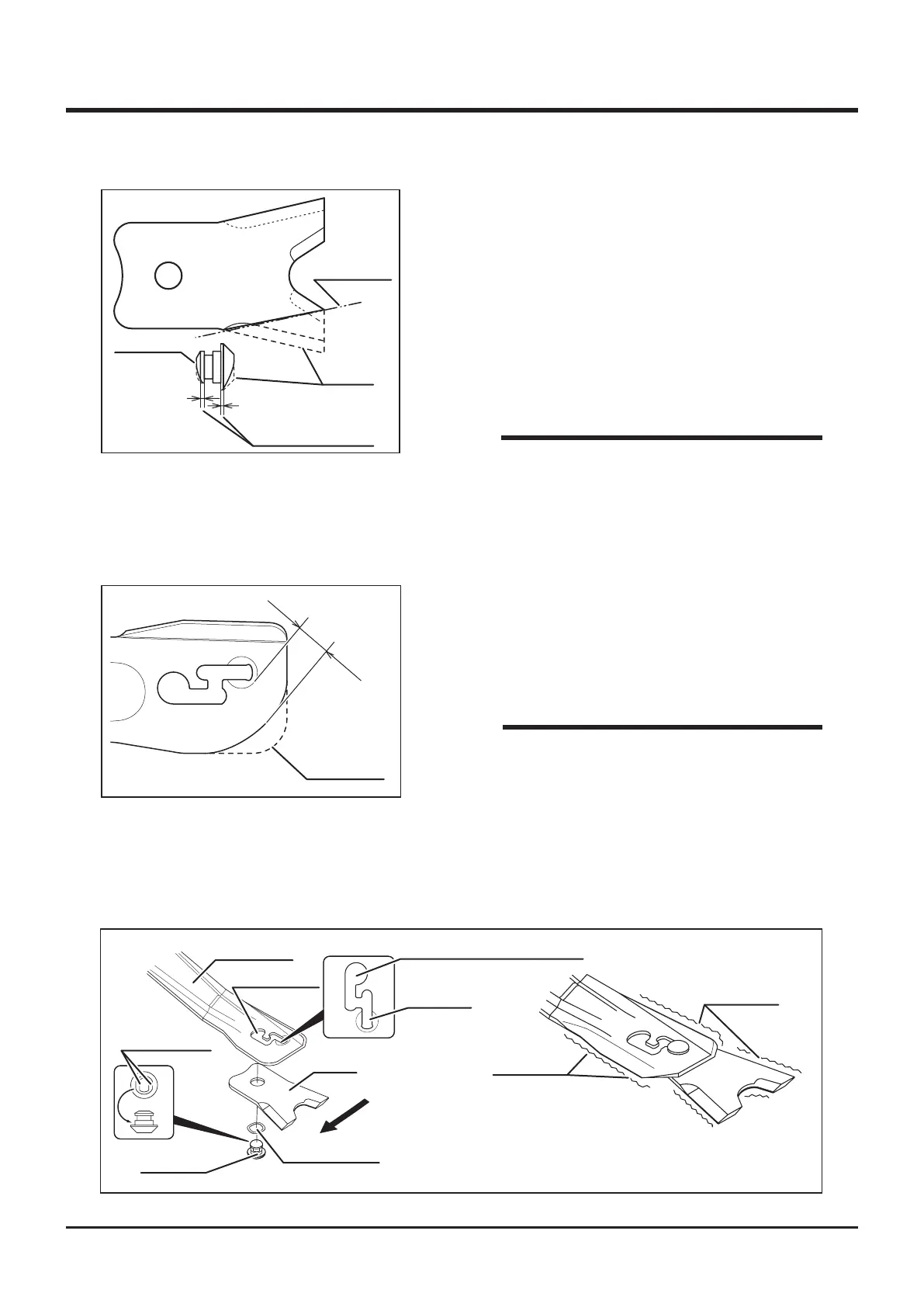

Inspecting
5331M-0508-010E
New
Wear Limit
Blade Pin
Replace when either
of the part wears out
• Wear Limit
Blade: Up to line connecting outer edge and
inner edge.
Blade Pin: Up to either of the shoulder.
NOTE
1. Open cutting blade shield.
2. Visually inspect blades and pin for wear
and damage. If blades are worn normaly,
turn them over and use. Replace if both
edges are worn. If blades or pin are worn
excessively, deformed, damged, or missing,
replace them with new components.
3. Inspect cutting rotor stay. If stay is worn
excessively, deformed or damged, replace
with a new component.
4. Close blade sheild.
• Wear Limit: Up to the solid line in the
left figure (should have more than 15mm
clearance between edge of rotor stay and
mounting slot.)
• Contact your CANYCOM representative for
replacement of rotor stay.
NOTE
5332M-0508-020E
Blade
Rotating Direction
Flat Surfaces
Blade Pin
Wave Washer
Mounting, Dismounting Hole
Wear Area
Mounting Slot
Lug Hole
Rotor Stay
Wear Area
Handle with care.
These parts may become sharp
5332M-0508-040E
15mm
When New
To Next Page
