INSTALLATION

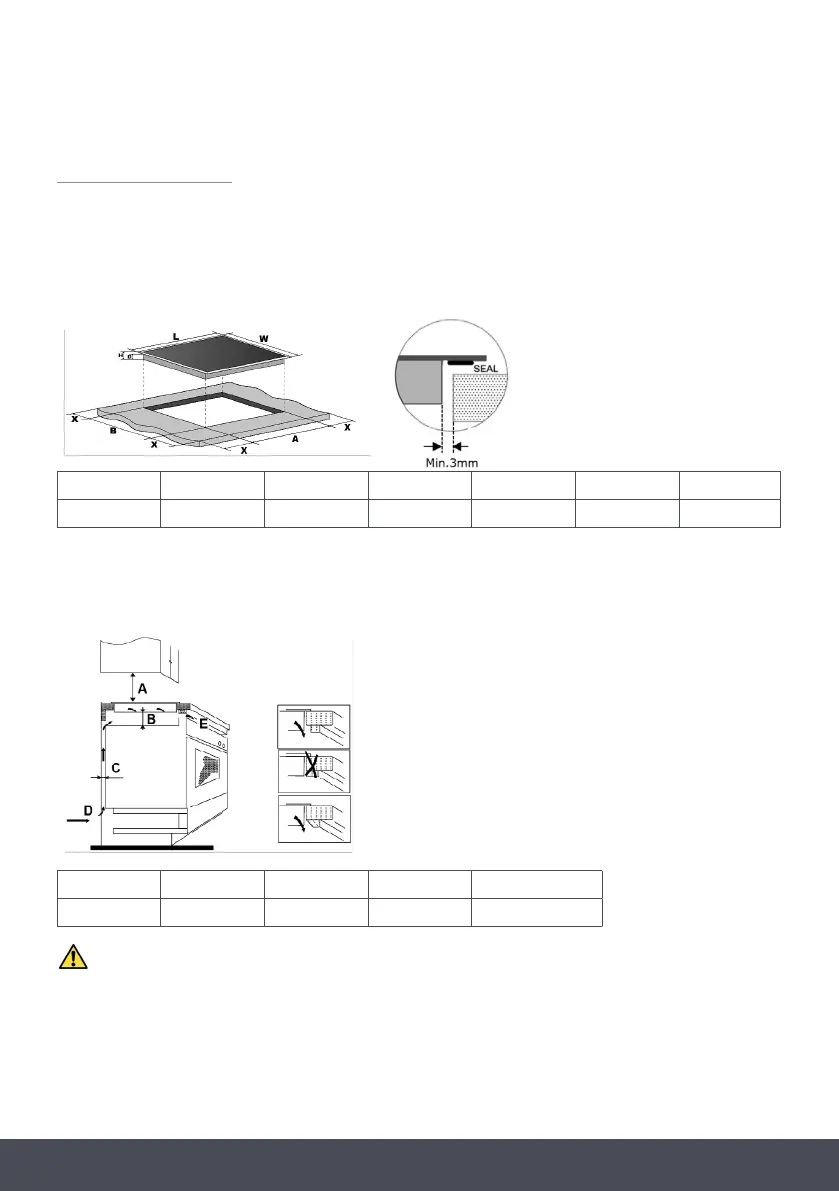

Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation
and use, a minimum of 50mm space must be left around the hole. Be sure the thickness of the work
surface is at least 30mm. Please select heat-resistant work surface material to avoid deformation
caused by the heat radiation from the hob. See below:
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
590 520 55 51 564 494 50 (min)
WARNING:
Always ensure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the
ceramic hob is in good working order. See below:
A (mm) B (mm) C (mm) D E
760 50 (min) 20 (min) Air intake Air exit (5mm)
Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture). This will
ensure the hob is properly secured to the underside of the work surface.
NOTE:
For safety, the distance between the hob and the cupboard above should be at least 760mm.
There are ventilation holes around the outside of the hob. YOU MUST ensure these holes are not
blocked by the worktop when you place the hob in position.
The rear wall, adjacent and surrounding surfaces must be able to withstand an temperature of 90°C.
