15Instruction manual C886G, C887G & C889GPlease keep this instruction manual for future reference
GAS HOB INSTALLATION
The gas hobs are prepared with protection degree
against excessive heating of type X, the appliance can
therefore be installed next to cabinets, provided the
height does not exceed that of the hob. For a correct
installation of the cooking hob the following precautions
must be followed:
› The hob may be located in a kitchen, a kitchen/diner
or bed sitting room, but not in a bathroom or shower
room.
› The furniture standing next to the hob, that is higher
than the worktop, must be placed at least 110mm
from the edge of the hob.

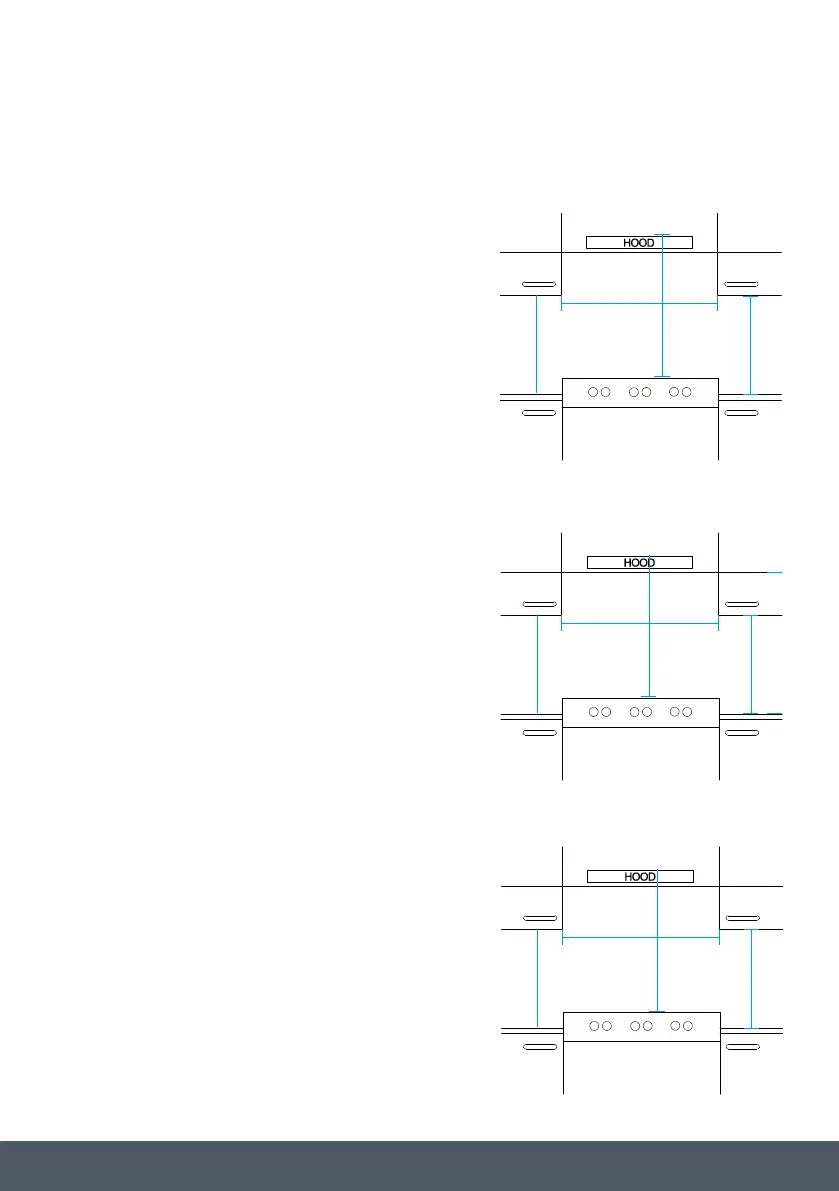

› The cabinets positioned next to the hood should be at
a height of at least 420mm (Fig. 5).
› You must have a gap of at least 25mm bewteen the
underside of the hob and any surface that is directly
below it.
FIG.5
C886G
C887G
C889G
Fig.5 Fig.6
d) Should the hob be installed directly under a cupboard, the cupboard should be at least 700mm from the
worktop, as shown in Fig.5.
e) The cut out dimensions for the worktop must be those indicated in the figures shown below. Fixing hooks
are provided which allow place the hob plate on work tops that measure 20 to 40 mm in thickness (see
Fig. 6).To obtain a of the hob plate it is advisable to use all the fixing supplied.
Fig.6
Hook position for Hook position for Hook position for
H=30mm top H=40mm top H=20mm top
N.B: Use the hook contained in the "accessories set"
In the event the hob is not installed above a built-in oven, a wood panel must be inserted as insulation.
This panel must be placed at least 20 mm from the bottom of the hob itself.
Important: When installing the hob above a built-in oven, the oven should be placed on two wooden strips;
in the case of a joining cabinet surface, remember to leave a space of at least 45 x 560 mm at the back.
Min 420 mm
Min 600mm
Min 650mm with hood
Min 700mm without hood
Min 420 mm
Min 420 mm
Min 700mm
Min 420 mm
Min 900mm
Min 420 mm
Min 420 mm
C886G
C887G
C889G
Min 650mm with hood
Min 700mm without hood
Min 650mm with hood
Min 700mm without hood
Fig.5 Fig.6
d) Should the hob be installed directly under a cupboard, the cupboard should be at least 700mm from the
worktop, as shown in Fig.5.
e) The cut out dimensions for the worktop must be those indicated in the figures shown below. Fixing hooks
are provided which allow place the hob plate on work tops that measure 20 to 40 mm in thickness (see
Fig. 6).To obtain a of the hob plate it is advisable to use all the fixing supplied.
Fig.6
Hook position for Hook position for Hook position for
H=30mm top H=40mm top H=20mm top
N.B: Use the hook contained in the "accessories set"
In the event the hob is not installed above a built-in oven, a wood panel must be inserted as insulation.
This panel must be placed at least 20 mm from the bottom of the hob itself.
Important: When installing the hob above a built-in oven, the oven should be placed on two wooden strips;
in the case of a joining cabinet surface, remember to leave a space of at least 45 x 560 mm at the back.
Min 420 mm
Min 600mm
Min 650mm with hood
Min 700mm without hood
Min 420 mm
Min 420 mm
Min 700mm
Min 420 mm
Min 420 mm
C886G
C887G
C889G
Min 650mm with hood
Min 700mm without hood
Min 650mm with hood
Min 700mm without hood
Fig.5 Fig.6
d) Should the hob be installed directly under a cupboard, the cupboard should be at least 700mm from the
worktop, as shown in Fig.5.
e) The cut out dimensions for the worktop must be those indicated in the figures shown below. Fixing hooks
are provided which allow place the hob plate on work tops that measure 20 to 40 mm in thickness (see
Fig. 6).To obtain a of the hob plate it is advisable to use all the fixing supplied.
Fig.6
Hook position for Hook position for Hook position for
H=30mm top H=40mm top H=20mm top
N.B: Use the hook contained in the "accessories set"
In the event the hob is not installed above a built-in oven, a wood panel must be inserted as insulation.
This panel must be placed at least 20 mm from the bottom of the hob itself.
Important: When installing the hob above a built-in oven, the oven should be placed on two wooden strips;
in the case of a joining cabinet surface, remember to leave a space of at least 45 x 560 mm at the back.
Min 420 mm
Min 600mm
Min 650mm with hood
Min 700mm without hood
Min 420 mm
Min 420 mm
Min 700mm
Min 420 mm
Min 900mm
Min 420 mm
C886G
C887G
C889G
Min 650mm with hood
Min 700mm without hood
Min 650mm with hood
Min 700mm without hood
