Caple CR 9207 - Triple Ring Burner Correct Assembly and Positioning

46
Fig. 8.5
T
S
Fig. 8.3
A
B
Fig. 8.4

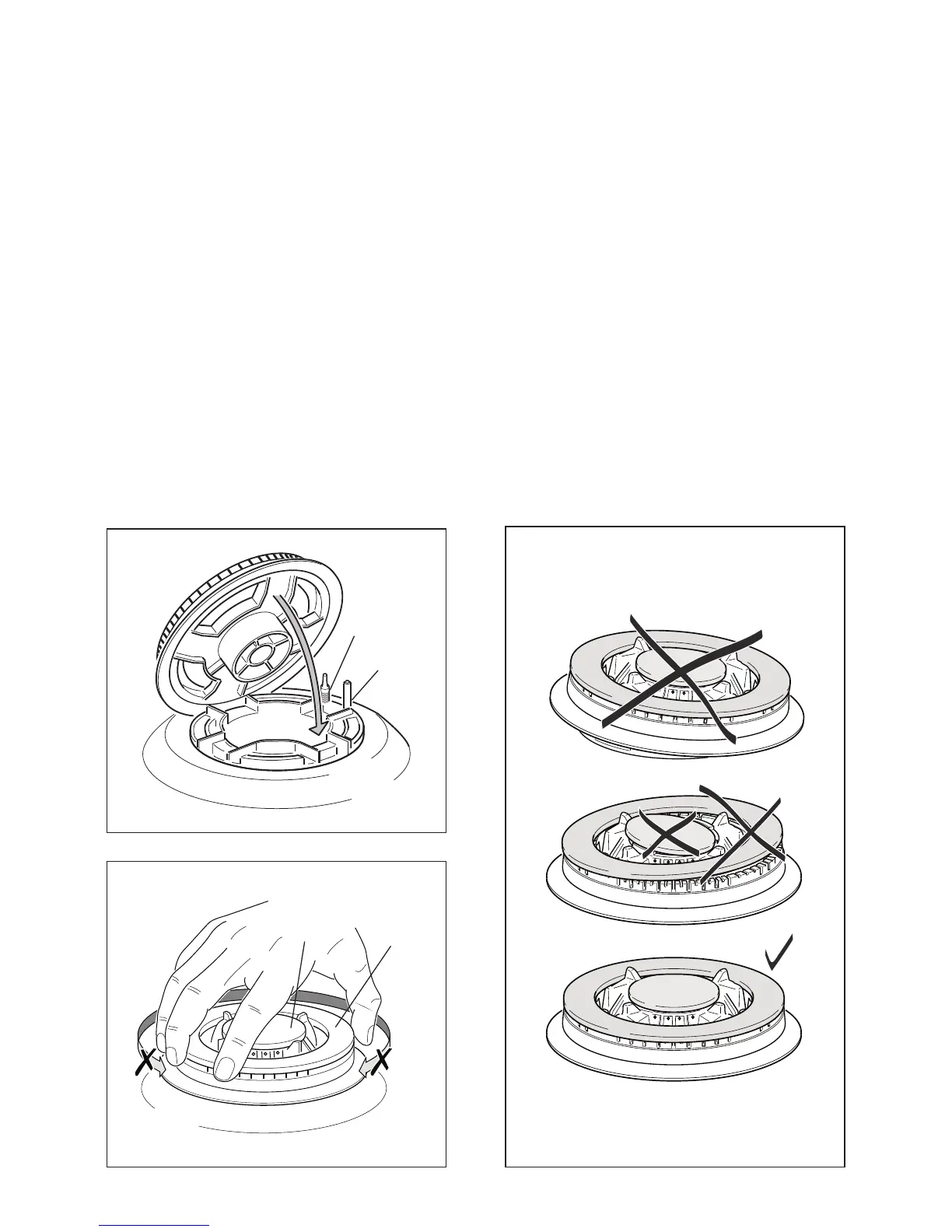

Triple ring burners
The triple ring burner must be correctly positioned (see fig. 8.5); the burner rib must be
enter in their logement as shown by the arrow see fig. 8.3).
Then position the cap “A” and the ring “B” (fig. 8.4 - 8.5).
The burner correctly positioned must not rotate (fig. 8.4).
