Caple CR 9207 - Dual Burner Correct Assembly and Positioning

47
Fig. 8.8
T
S
Fig. 8.6
Fig. 8.7
Fig. 8.9

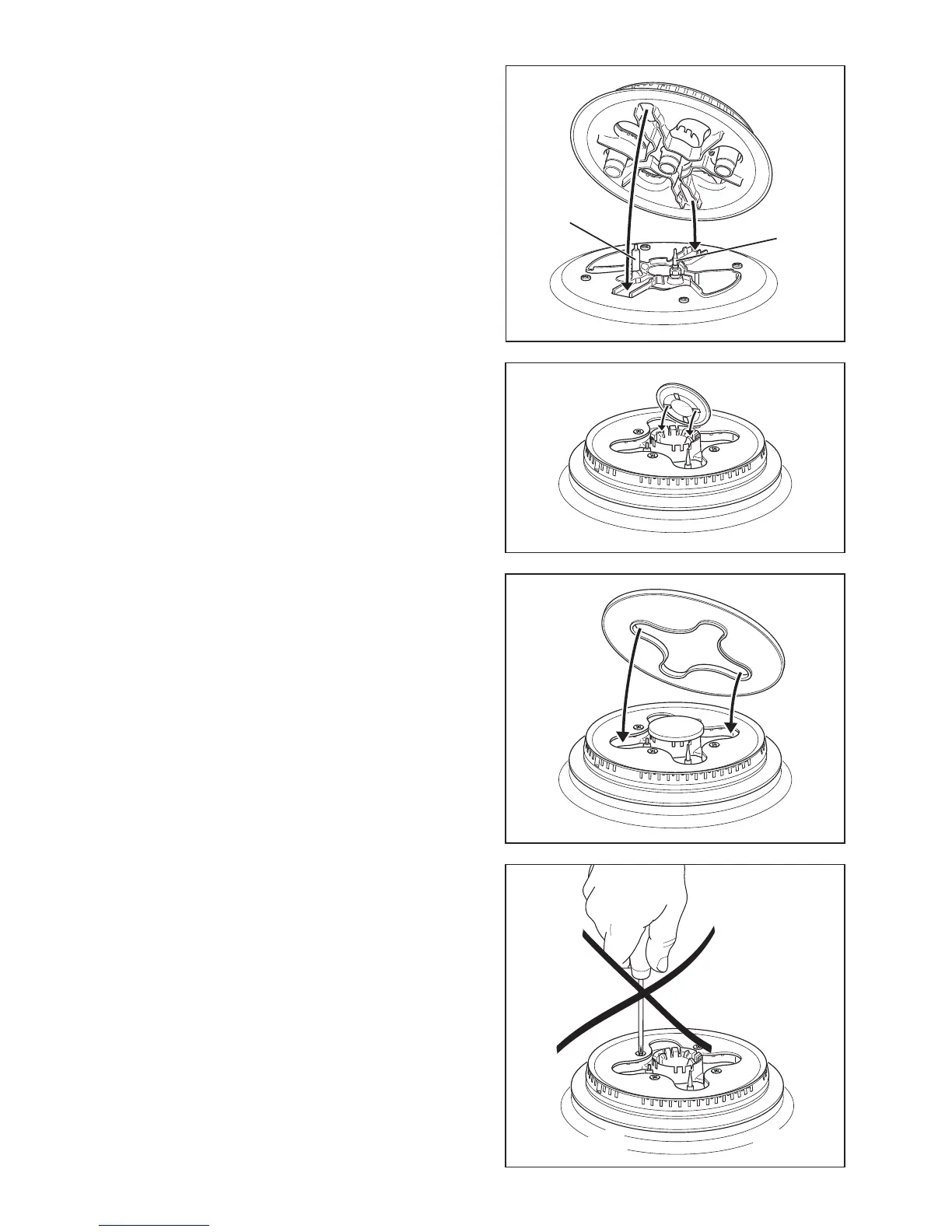

Correct position of
dual burners
The DUAL burner must be correctly
positioned (see fig. 8.6); the burner rib
must be fitted as shown by the arrows.
Position the central small cap in its
housing as shown by the arrows
(fig. 8.7).
Position the big cap in its housing as
shown by the arrows (fig. 8.8).
IMPORTANT: NEVER unscrew the
burner screws (fig. 8.9).
