Caple DD912BK - Dimensions

Instruction manual DD912BK
8
Please keep this instruction manual for future reference

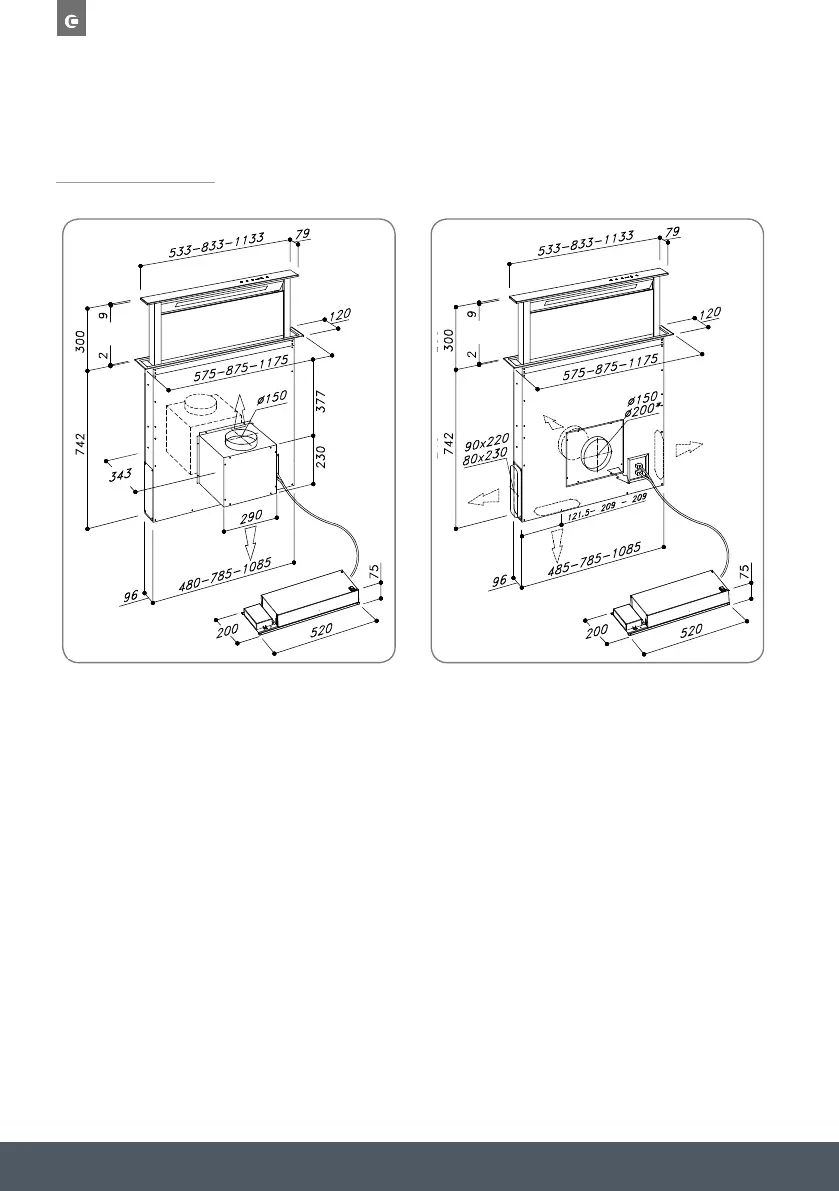

DIMENSIONS
NOTE:
The Downdraft worktop cutout can be connected to the hob cutout, but only for electric hobs.
For gas hobs, a minimum 50mm gap must be left between the edge of the gas hob and the
downdraft frame.
The minimum distance between the Down-draft (closed) and the surface above it must be at
least 400mm. It is the manufacturer of the hob who determines the clearance required and the
clearance quoted by the hob manufacturer must be followed.
In the absence of any instructions supplied with a gas hob, there must be a minimum space of
50mm between the edge of a gas hob and the downdraft frame.
Dimensions
INC
Note: The Downdraft worktop cutout can be connected to the hob cutout,
but only for electric hobs.
For gas hobs, a minimum 50mm gap must be left beetween the edge of
the gas hob and the downdraft frame
