BULB REPLACEMENT
This product is supplied with LED lamps. To replace, isolate the electrical supply,
release the spring holding the lamp and remove the lamp. Then replace a new
damp of the identical type.
NOTE:
The bulb is a consumable part and it not covered by the guarantee.
Always switch off the electricity supply prior to changing the bulb.
Electrical Connections
IMPORTANT:
ENSURE THAT THE ELECTRICITY SUPPLY IS SWITCHED OFF BEFORE
CONNECTING.
Your appliance must be connected to fix wiring via the use of a double pole
switched fused spur outlet with at least 3 mm contact separation, and preferably
with a pilot lamp. (See technical data for fuse rating). We strongly recommend the
appliance is connected by a qualified electrician who is a member of the N.I.C.E.I.C
or Corgi who will comply with the I.E.E and any local regulations.
NOTE:
The terminology “DOUBLE POLE” means that both the live and neutral supplies are
switched and disconnected at the same time.
Bulb Replacement
This product is supplied with LED lamps. To replace, isolate the electrical supply, release the spring
holding the lamp and remove the lamp. Then replace a new damp of the identical type.
Note: The bulb is a consumable part and it not covered by the guarantee.
Always switch off the electricity supply prior to changing the bulb.
Electrical Connections
IMPORTANT: ENSURE THAT THE ELECTRICITY SUPPLY IS SWITCHED OFF BEFORE
CONNECTING.
Your appliance must be connected to fix wiring via the use of a double pole switched fused
spur outlet with at least 3 mm contact separation, and preferably with a pilot lamp. (See
technical data for fuse rating). We strongly recommend the appliance is connected by a
qualified electrician who is a member of the N.I.C.E.I.C or Corgi who will comply with the
I.E.E and any local regulations
NOTE: The terminology “DOUBLE POLE” means that both the
live and neutral supplies are switched and disconnected at the
same time.

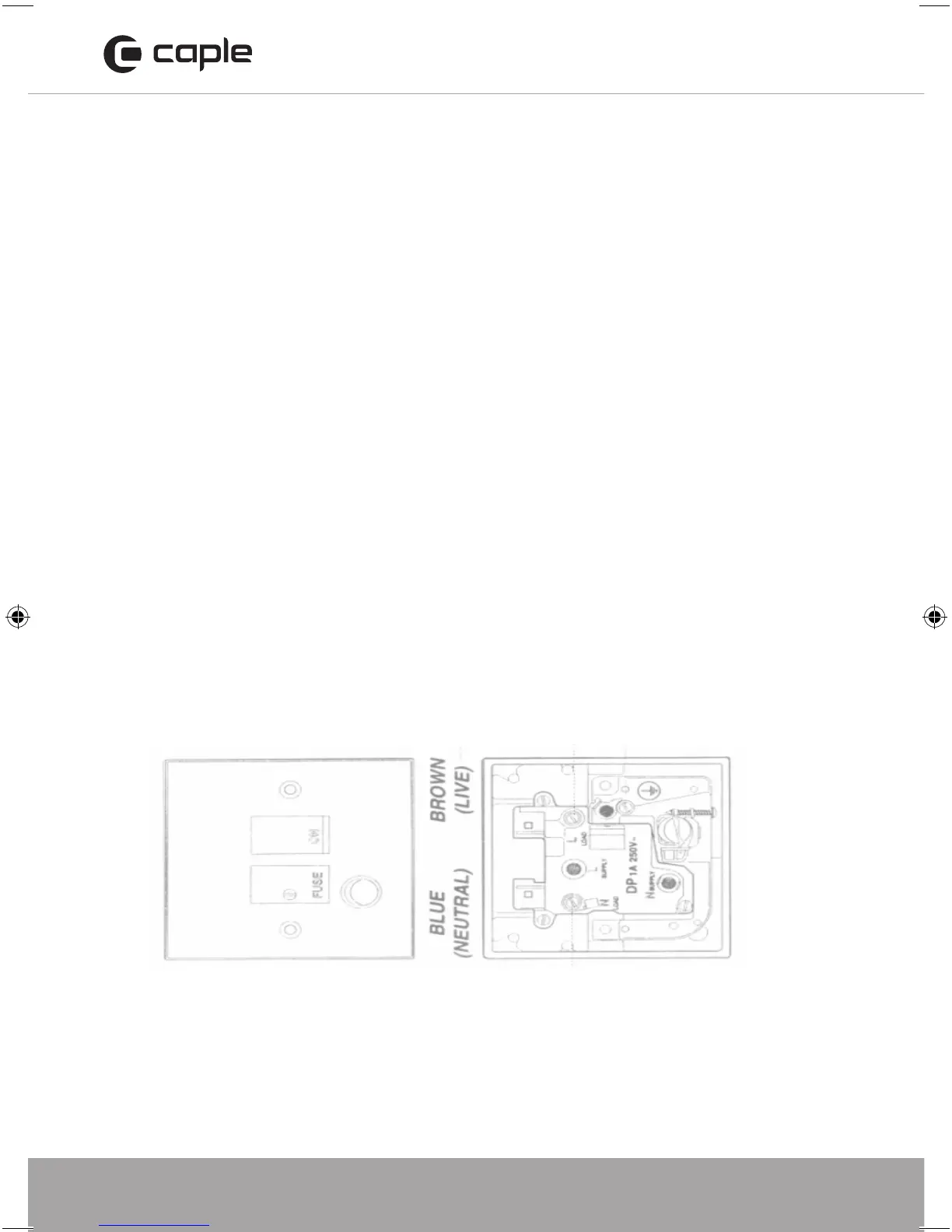

The terminations labelled SUPPLY are for the connection of the internal house wiring and
the terminations labelled LOAD are for connection of the appliance.
Important:
The wires in this mains lead are coloured in accordance with the following code:
Blue Neutral
Brown Live
As the colors of the wires in the mains lead of this appliance may not correspond with the colors markings
identifying the terminals in your spur box, proceed as follow:
The wire which is colored blue must be connected to the terminal which is marked with the letter “N” or
colored black. The wire which is colored brown must be connected to the terminal which is marked with
the Letter ‘L’ or colored red.
7
The terminations labelled SUPPLY are for the connection of the internal house
wiring and the terminations labelled LOAD are for connection of the appliance.
