Instruction manual INCH
Please keep this instruction manual for future reference
12
IMPORTANT NOTE:
After the extractor has been positioned correctly the extractor must be fixed to the
adjacent through the fixing holes in the sides of the extractor.
All that remains is to fix the front wooden door panel to the extractor by using the
diagram below fix the front panel
Ensuring there is a minimum distance if 65cm between the bottom of the extractor and hob surface.,

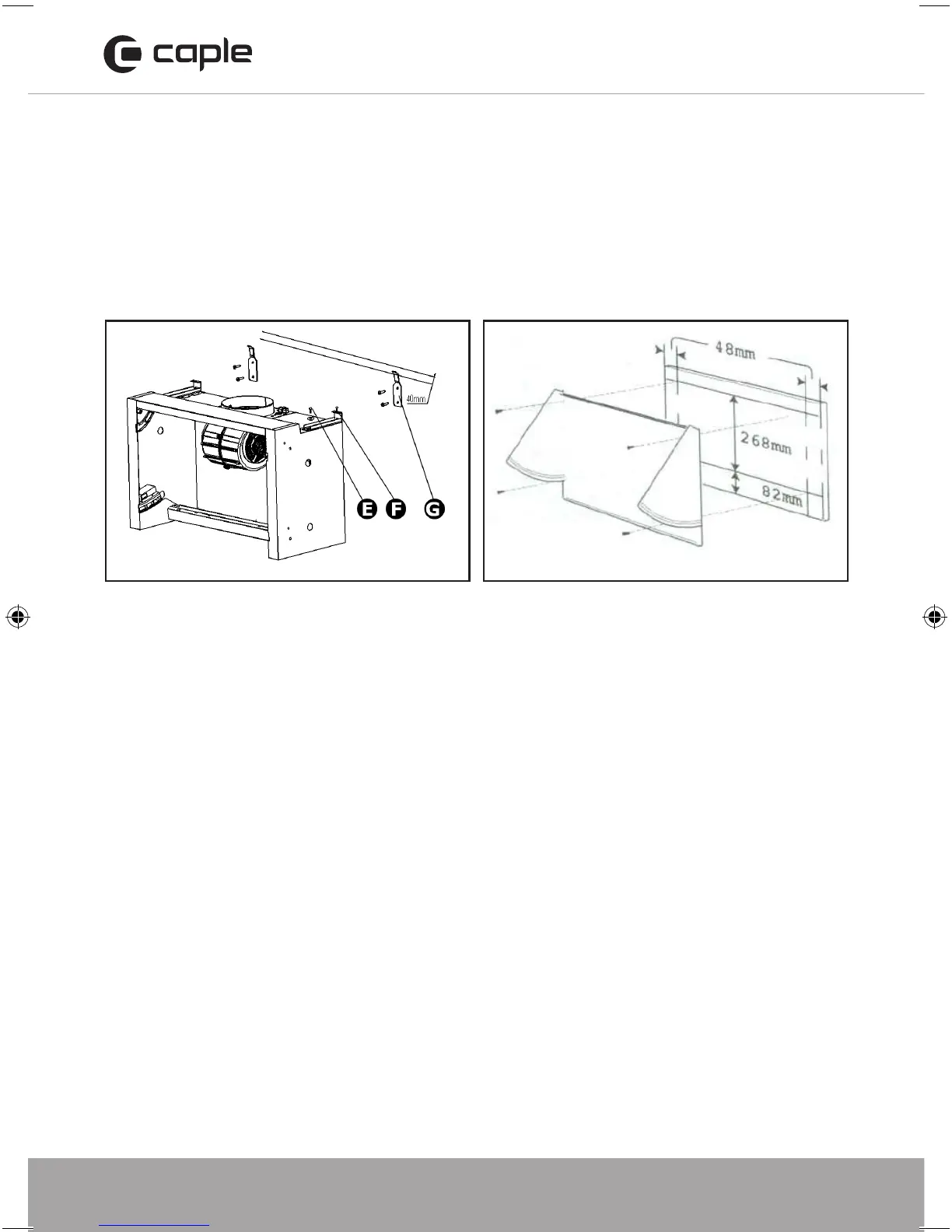

the two mounting brackets (G) to the rear wall.
Once the two mounting brackets are in position hook the extractor mounting bracket (D) onto the wall
mounting bracket
Some adjustment is provide within the brackets. For forward and backward adjustment use screw (E)
and for height alignment adjust screws (F).
Once the adjustment is complete fully tightening all screws.
If after installation there is a gap between the rear wall and the extractor a spacer is provided. This
can be fixed to the rear of the extractor and cut to accommodate the gap.
IMPORTANT NOTE : After the extractor has been positioned correctly the extractor must be fixed to
the adjacent through the fixing holes in the sides of the extractor.
All that remains is to fix the front wooden door panel to the extractor by using the diagram below fix
the front panel
Electrical Safety
Before you think about installing this extractor, give careful consideration to the power connection. It
is vital that the supply cable should be well shielded from your grill, hob or oven. If it isn’t, heat from
any one of these sources may damage the cable insulation and give rise to a fire risk. Under no
circumstances should the exposed power supply cable come within 70cm of a direct source of heat.
Ideally it should be channeled into the wall, well out of harm’s way.
3
Ensuring there is a minimum distance if 65cm between the bottom of the extractor and hob surface.,
the two mounting brackets (G) to the rear wall.
Once the two mounting brackets are in position hook the extractor mounting bracket (D) onto the wall
mounting bracket
Some adjustment is provide within the brackets. For forward and backward adjustment use screw (E)
and for height alignment adjust screws (F).
Once the adjustment is complete fully tightening all screws.
If after installation there is a gap between the rear wall and the extractor a spacer is provided. This
can be fixed to the rear of the extractor and cut to accommodate the gap.
IMPORTANT NOTE : After the extractor has been positioned correctly the extractor must be fixed to
the adjacent through the fixing holes in the sides of the extractor.
All that remains is to fix the front wooden door panel to the extractor by using the diagram below fix
the front panel
Electrical Safety
Before you think about installing this extractor, give careful consideration to the power connection. It
is vital that the supply cable should be well shielded from your grill, hob or oven. If it isn’t, heat from
any one of these sources may damage the cable insulation and give rise to a fire risk. Under no
circumstances should the exposed power supply cable come within 70cm of a direct source of heat.
Ideally it should be channeled into the wall, well out of harm’s way.
3
ELECTRICAL SAFETY
Before you think about installing this extractor, give careful consideration to the
power connection. It is vital that the supply cable should be well shielded from
your grill, hob or oven. If it isn’t, heat from any one of these sources may damage
the cable insulation and give rise to a fire risk. Under no circumstances should the
exposed power supply cable come within 70cm of a direct source of heat. Ideally it
should be channeled into the wall, well out of harm’s way.
INCH Instruction manual.indd 12 06/07/2017 14:45
