Instruction manual OM600 OM900
12
Please keep this instruction manual for future reference

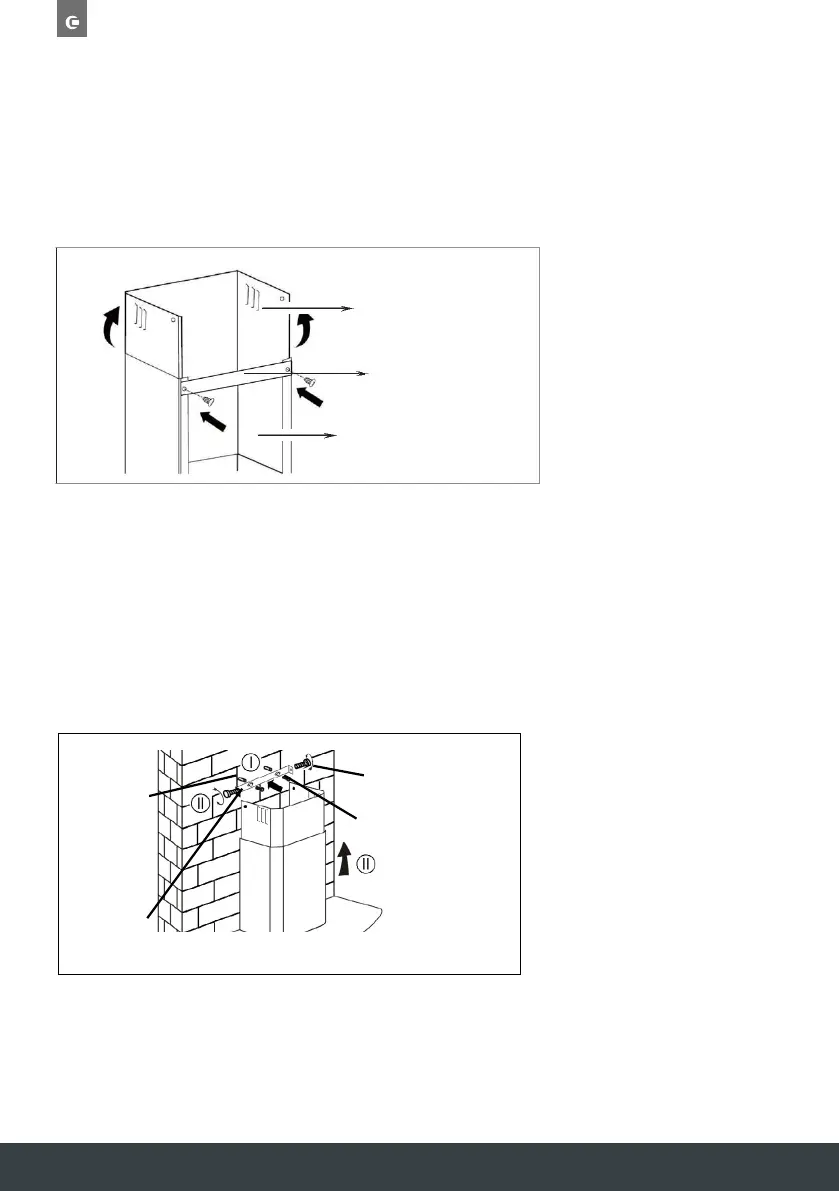

CHIMNEY INSTALLATION
The lower chimney bracket is used to fix the upper decorative chimney and lower decorative
chimney. Use 2pcs 4x8mm screws to attach lower chimney and lower chimney bracket together.
Put the lower chimney on the cooker hood and mark the location of lower chimney bracket fixing
holes on the wall.
Note: Do not fasten screws too much, make sure upper decorative chimney can be telescopically
adjusted once assembled.
Put the chimney on the cooker hood. Fix the lower chimney bracket on the wall by 2 screws
(4mm x 30mm).
Then pulling out the upper chimney upwards to the target height. Adjust to reach the
height required.
Fix the upper chimney on the upper chimney bracket by 2 screws (4x8mm). Then fix the upper
chimney bracket on the wall. Before fixing the bracket on the wall, you can decide the upper
chimney bracket fixing holes for installation.
7
The lower chimney bracket is used to fix the upper decorative chimney and lower decorative
chimney.
Use 2pcs 4x8mm screws to attach lower chimney and lower chimney bracket together. Put
the lower chimney on the cooker hood and mark the location of lower chimney bracket fixing
holes on the wall.
Noted: Do not fasten screws too much, make sure upper decorative chimney can be
telescopically adjusted after assembled.
Upper Chimney (Inner)
Lower Chimney bracket
3
Chimney installation
Put the chimney on the cooker hood. Fix the lower chimney bracket on the wall by 2 screws
(4mm x 30mm).
Then pulling out the upper chimney upwards to the target height. Adjust to reach the height required.
Fix the upper chimney on the upper chimney bracket by 2
screws (4x8mm). Then fix the upper chimney bracket on the wall. Before
fixing the bracket on the wall, you can decide the upper chimney bracket fixing holes for
installation.
Use image from original manual here
Lower Chimney (Outer)
Upper
chimeny
bracket
NOTE:
The chimney installation is optional. This extractor can be installed without the chimney section.
Screw
(4mm x 30mm)
Wall Plug
Screw
(4mm x 8mm)
