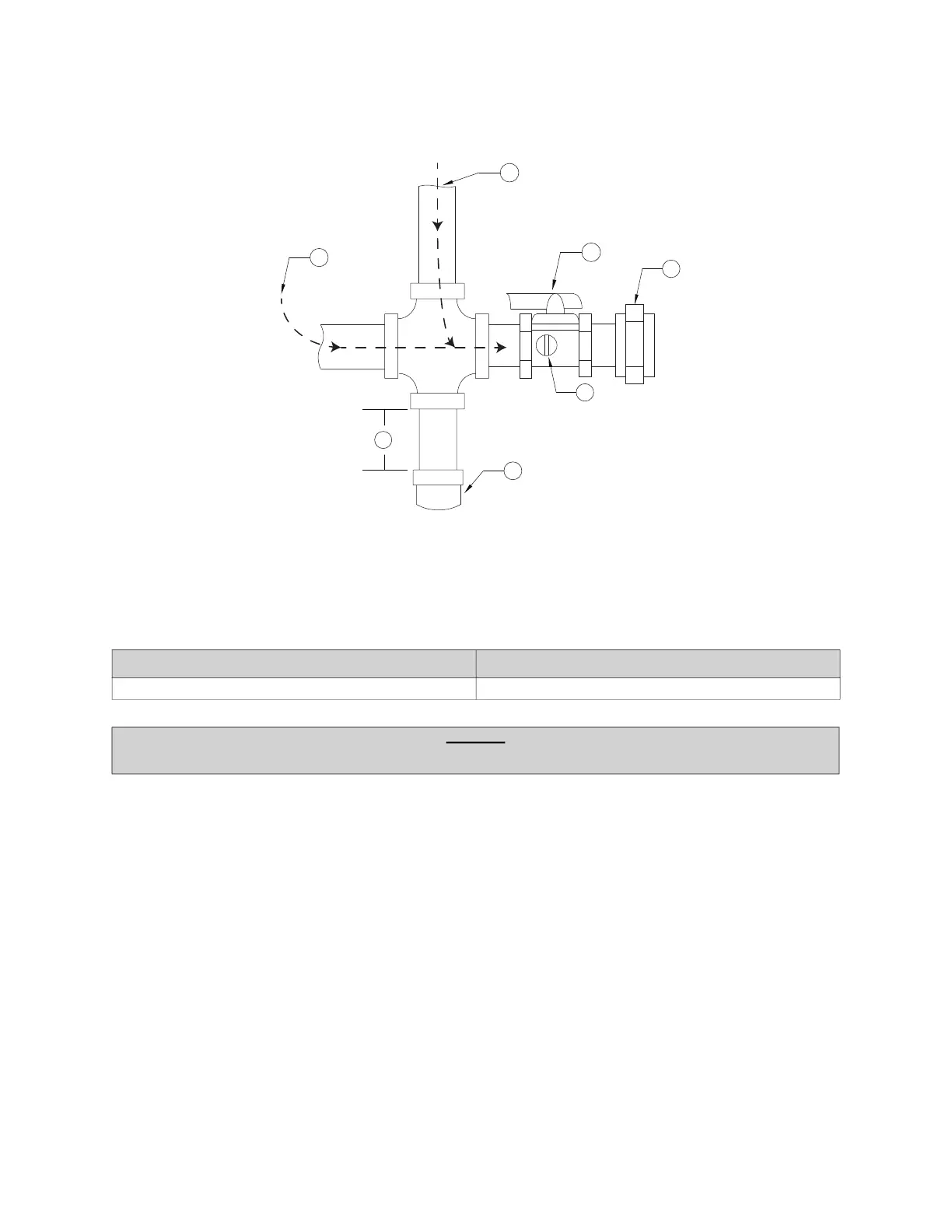

Figure 5 - Gas Connection Diagram
Table 3 - Gas Pressure
Gas Pressure Type Gas Pressure
Natural/LP 5 - 14 Inches WC Maximum
NOTICE
Refer to the heater’s rating plate for determining gas supply pressures and requirements.
1
1
2
3
4
5
A
1. Gas Supply Line Connection
2. Manual Gas Shut-off Valve
3. Ground Joint Union with Brass Seat
4. Plugged 1/8” NPT Test Gauge Connection
5. Sediment Trap
A. Minimum Depth = 3”
