CaptiveAire D76 - Input Threshold

18
Input Threshold

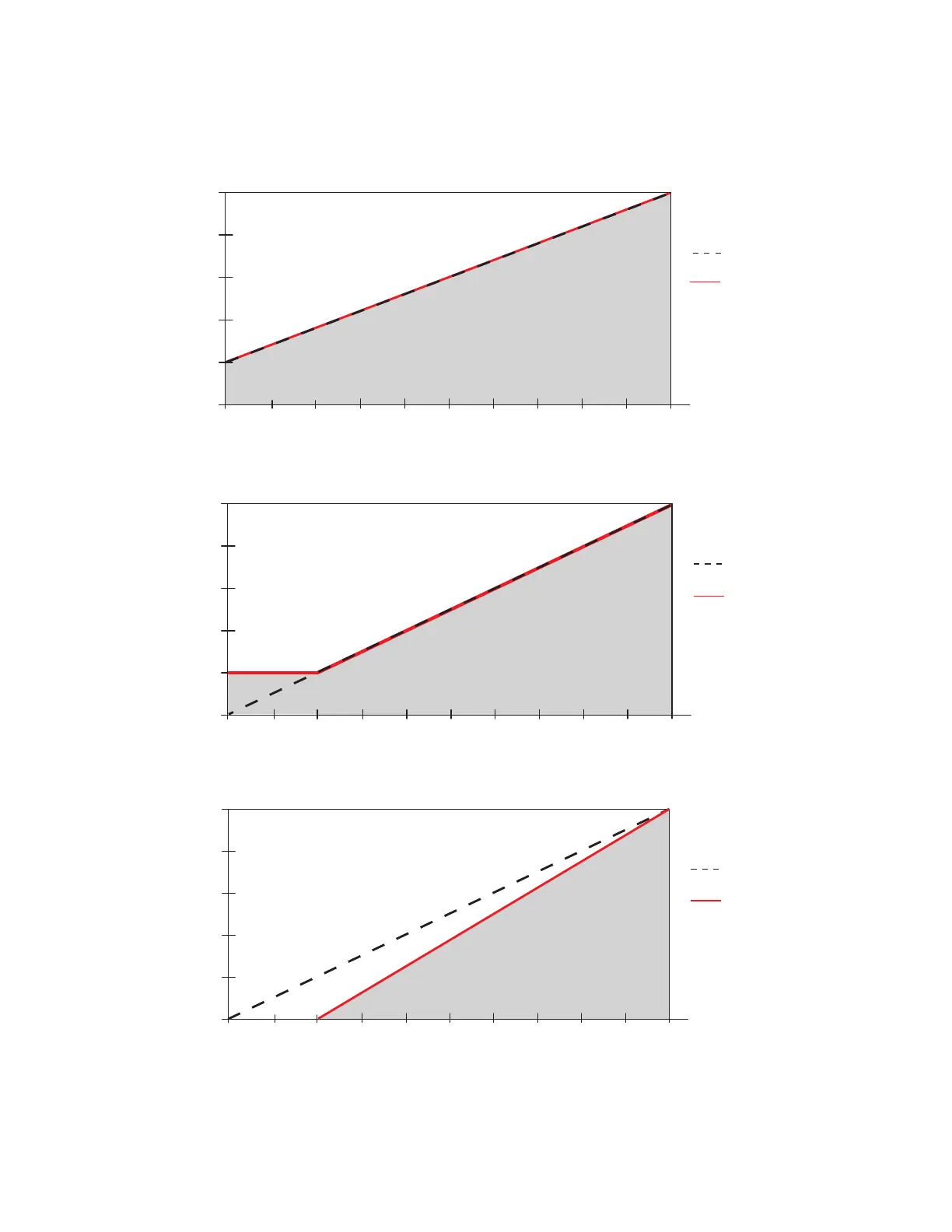

Figure 11 - Input Threshold Examples
OFF
HIGH SPEED
01 423 6785910
OPERATING
BAND
INPUT VOLTS
0-10V OR PWM
OUTPUT SIGNAL
DEPENDANT ON
SETTINGS
0-10V INPUT
Factory Default: Zero operation set to low speed, threshold set to 0V.
LOW
SPEED
DEVICE OUTPUT
HIGH SPEED
01 423 6785910
OPERATING
BAND
INPUT VOLTS
0-10V OR PWM
OUTPUT SIGNAL
DEPENDANT ON
SETTINGS
0-10V INPUT
DEVICE OUTPUT
LOW SPEED
Zero operation set to low speed, threshold set to 2V.
OFF
HIGH SPEED
01 423 6785910
OPERATING
BAND
INPUT VOLTS
0-10V OR PWM
OUTPUT SIGNAL
DEPENDANT ON
SETTINGS
0-10V INPUT
DEVICE OUTPUT
Zero operation set to off, threshold set to 2V.
