CaptiveAire D76 - Wiring Connections

12
Fan to Building Wiring Connection

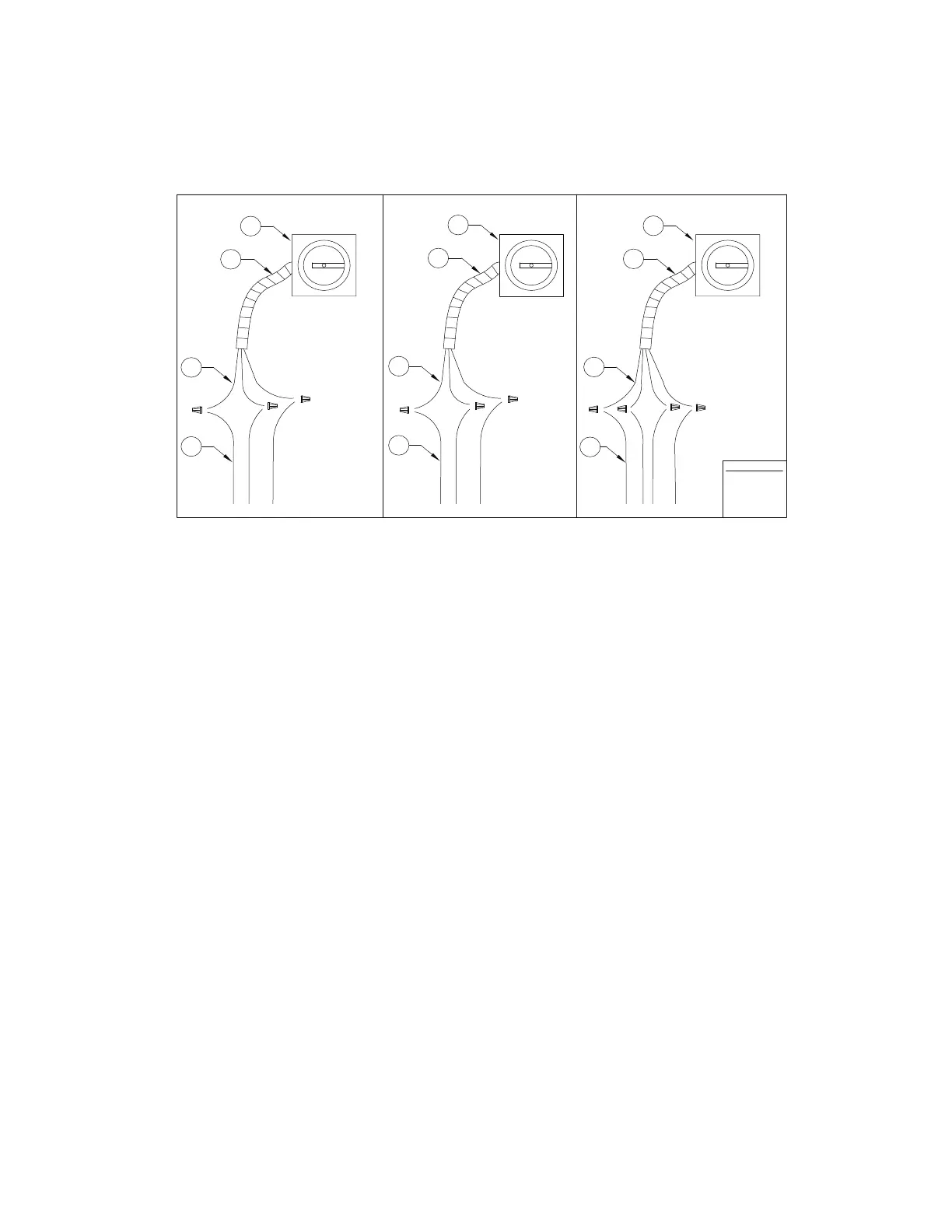

Figure 6 - Wiring Connection Details
1. Disconnect Switch
2. Galflex Conduit (In Unit)
3. Factory Wiring
4. Field Supplied Wiring - From building power or
pre-wired control panel.
WHBK GR
120V 1 PH.
RD
BK GR
208-240V 1 PH.
BKBK BK GR
208-240/460/600V 3 PH.
1
2
3
4
1
2
3
4
1
2
3
4
WH - WHITE
RD - RED
WIRE COLOR
BK - BLACK
GR - GREEN
Single Point Connection
