Upright Broiler/Salamander Protection
Install union in pipe leading to nozzle to allow for appliance removal and cleaning.
ADP Nozzle mounted within top 4” of broiler compartment, near the front opening, and aimed through grill
toward center of grease drain opening.
Discharge shall not be obstructed by any structural part of the broiler.
NOTE: Appliance Drop Fittings Must Not be Sealed with Pipe Dope or Teflon Tape.

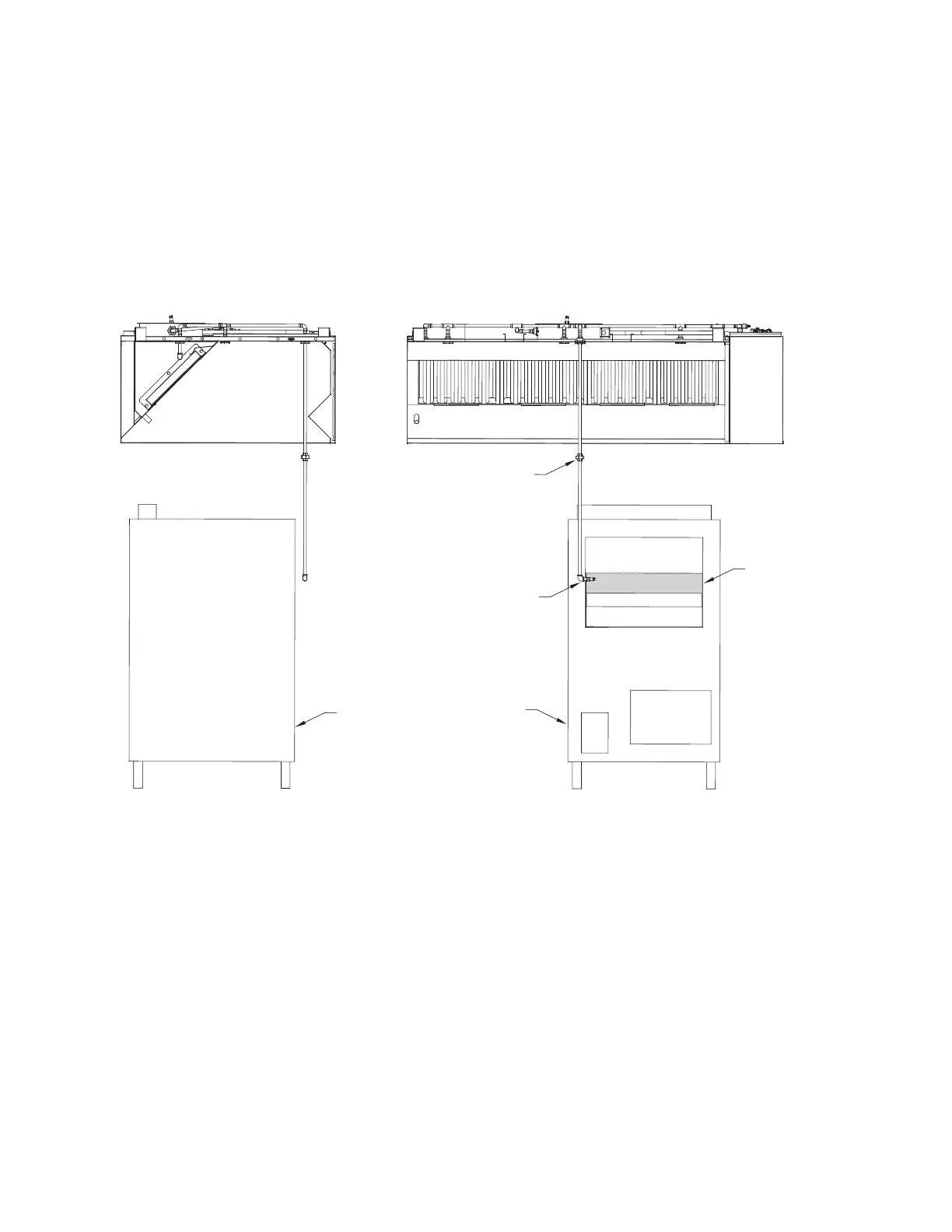

Figure 27 - Broiler/Salamander Protection
Cooking
Appliance
Cooking
Appliance
ADP
Nozzle
Union for
Pipe
Top 4” of
Broiler
