CaptiveAire EWC - Page 42

42

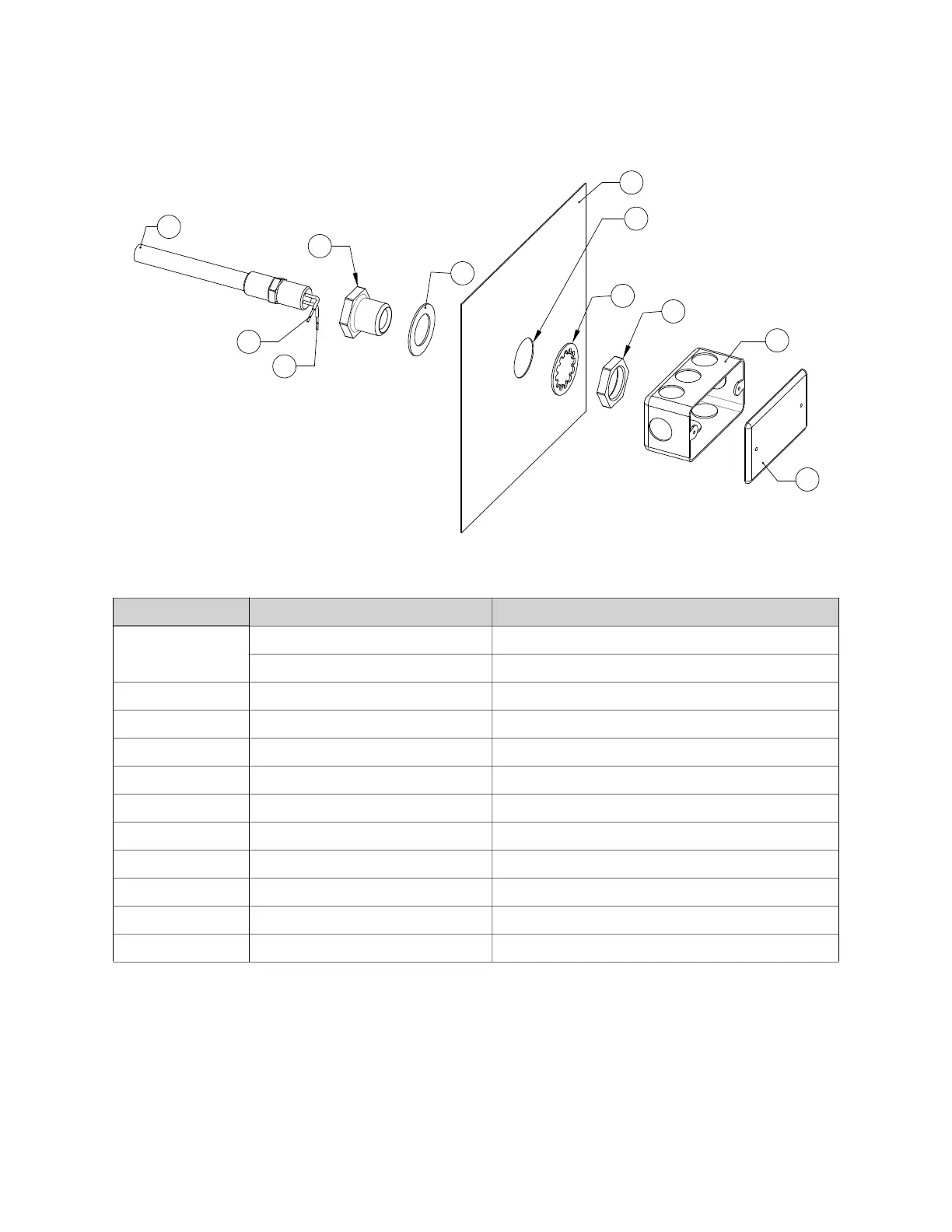

Figure 36 - Firestat
Table 13 - Firestat Components
Item Number Part Number Description
1
12-F28021-005360 Normally Open, Close on Rise @ 360°F
Series 08-80 Normally Open, Close on Rise @ 360°F
2 32-00002 1/2” NPT Quik Seal (Adapter Body)
3 32-00002 1/2” NPT Quik Seal (Gasket)
4 N/A Hood/Duct (External Surface)
5 N/A 1-1/8” – 1-1/4” Diameter Hole
6 32-00002 1/2” NPT Quik Seal (Lock Washer)
7 32-00002 1/2” NPT Quik Seal (Nut)
8 59361-1/2 Extension Ring
9 100-BW Extension Ring Cover
10 N/A 2 White Wires
11 N/A 2 Black Wires
1
2
4
5
7
6
8
9
3
10
11
