8526-M260-O1 C Series Operation
1
INSTALLATION
Unpacking
Before beginning installation of your C Series Digital Counting Scale, make certain the scale
has been received in good condition. Carefully remove the scale from the shipping carton
and inspect it for any evidence of damage (such as exterior dents or scratches) that may
have taken place during shipment. Keep the carton and packing material for return
shipment if it should become necessary. It is the responsibility of the purchaser to file all
claims for any damages or loss incurred during transit.
Placement
Place the scale on a stable, vibration-free level surface away from direct sunlight and from
any rapidly moving air source (heating/cooling vents, fans, etc.). Make certain the power
cord and peripheral cables are routed out of the way of normal traffic.
CAUTION! DO NOT place the scale on any unstable cart, stand or table. The
scale may fall causing injury to the operator, and seriously damage the unit,
or proper operation of the scale may be inhibited.
Level Adjustment

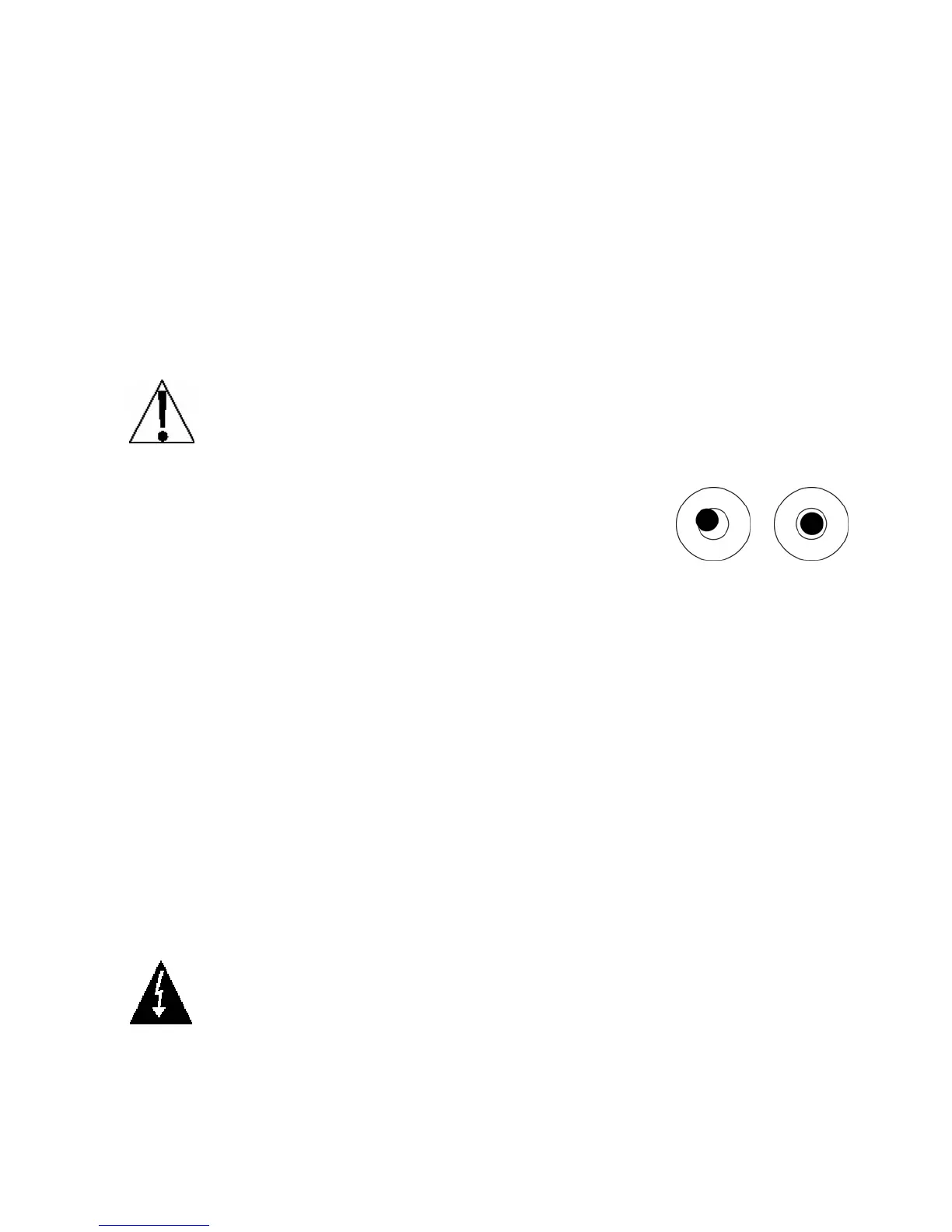

Check to make certain the scale is level. The level indicator is
located at the front of the scale. If the scale is not level (the bubble
will not be centered), loosen the locking ring on all four (4) mounting
feet and adjust them as required to center the bubble and attain a
level scale. Once a level condition has been obtained, lock the
mounting feet in place by tightening the adjustment locking rings
against the bottom of the scale.
Power Connection
The scale contains a power supply that converts the 110/120/220/240 VAC 50/60Hz wall
supply to the power required by the scale circuitry. The power supply also contains the
circuitry necessary to monitor and recharge the battery and is capable of operating the scale
and recharging the battery simultaneously.
AC Operation
Plug the power cord into a grounded, polarized wall receptacle that supplies 110/120 VAC
50/60Hz power. If it is necessary to use an extension cord, make certain it is a 3-wire, fully
grounded type using a minimum of 18-gauge wire. Be certain the power cord is routed out
of the way of normal traffic. If only an ungrounded wall receptacle is available, it is the
customer's responsibility to contact a qualified electrician to replace the ungrounded
receptacle with a properly grounded polarized wall receptacle or have a grounding adapter
properly installed.
WARNING! To avoid electrical hazard, DO NOT under any circumstances,
cut, remove, alter, or in any way bypass the power cord-grounding prong.
It is the responsibility of the customer to contact a qualified electrician to install the
proper power cord connector. Plug the power cord into a grounded, polarized wall
receptacle that supplies 220/240 VAC 50/60Hz power. Be certain the power cord is routed
out of the way of normal traffic.
Not Level Level
