7
ENGLISH
EVD
4
+030220227 - rel. 2.1 - 12.06.2008
1. INTRODUCTION
EVD
4
is an evolved PID controller complete with driver for stepper motors specially designed for the ma-
nagement of electronic expansion valves in refrigerant circuits. It features sophisticated control functions
and can be used in many operating confi gurations in refrigeration and air-conditioning systems, such as:
- PID control of superheat with protection and safety compensation functions;
- PID control on one measurement (pressure or temperature);
- positioner for electronic expansion valves controlled by 4 to 20 mA or 0 to 10 Volt signal.
The device is confi gured and the address set via serial interface and the user interface software is stored
in non-volatile memory.
1.1 Codes and accessories
Code Description
EVD000040*
Controller with tLAN serial already confi gured for operation with µC
2
and µC
2
SE (address 2) universal for EEV1 valves
EVD000041*
Controller with RS485 serial already confi gured for operation with pCO in pLAN (address 30) universal for EEV1 valves
EVD000042*
Controller with RS485 serial already confi gured for operation with supervisor (address 250) universal for EEV1 valves
EVD000043*
Controller with tLAN serial already confi gured for operation with µChiller (address 2) for CAREL valves
EVD000044*
Controller with RS485 serial already confi gured for operation with pCO via pLAN (address 30) for CAREL valves
EVD000045*
Controller with RS485 serial already confi gured for operation with supervisor (address 250) for CAREL valves
EVD00014** EEV valve controller with spade connector
(3)
EVD0001460 Controller with RS485 serial already confi gured for operation with Modbus®
EVD00004*1
Multiple packages of 10 pcs, without connectors
EVBAT00200
Battery charger module and step-up transformer for backup power supply
EVBAT00300
System made up of EVBAT00200 + 12 V 1.2 Ah battery + cable and connectors
EVBATBOX10
Metal battery case
CVSTDUTTL0
USB converter to connect a PC to the service serial port
CVSTD0TTL0
RS232 converter to connect a PC to the service serial port
EVDCAB0500
Package of 14 cables with terminals for MINIFIT connector, length 5 m, cross-section 1 mm
2
EVDCON0001
Packaging of connectors for 10 EVD
4
for multiple packages of 10 pcs
(1)
: See the table on the corresponding instruction sheet or APPENDIX II “DESCRIPTION OF THE
PARAMETERS”, “valve type” parameter
(2)
: For the other types of probes, see Chap. 4 “Technical and constructional characteristics”
(3)
: The EVD00014** series with spade and 4-pin connector on the valve side improves performance in terms of
electromagnetic emissions if used with shielded cable and the shield is connected to the spade.
RT–RT+GNX
NOCOM
G Vbat DI1 S4 V S3 S2 S1
G0 GND DI2 S4 I Vr1 Vr2 OC
3 4
1 2
NTC: low temperature
probes
CVSTDUTTL0: converter
E2V*: CAREL electronic expansion
valve
EVDCON0001:
10 connector kits
solenoid
valve
alarm
signal
EVDCON0001:
10 connector kits
personal computer for configuration
0 to 10 V
Probe1
Signal4
SPKT: 0 to 5 V ratiometric
probes
External controller
Pro bes
(2)
Important
Probe3
4 to 20 mA
1
digital input
EVBAT00200
EVBAT00300
battery modules
MC2*: µC
2
controller
PlantVisor for
configuration
PCO*: programmable controllers
PCO*: programmable controllers
S
pGD
1
user interface
pGD
1
user interface
RS485
voltage-free relay output
for utilities up to 230 Vac
NB: DANFOSS, SPORLAN and ALCO
electronic expansion valves can be
connected
EVDCAB0500:
14 pre-crimped cables
EVD 4
PC
EVD4 service USB adapter
EEV dr ive r
4
3
4
1
2
Faston connector electronic valve
(Cod. EVD00014**)
EVD****40* and EVD****43*:
tLAN version
EVD****41* and EVD****44*:
pLAN version
EVD****42* and EVD****45*:
RS485 version
EVD***1460:
Modbus
version
pGD
1
user interface
PCO*: programmable controllers
Modbus

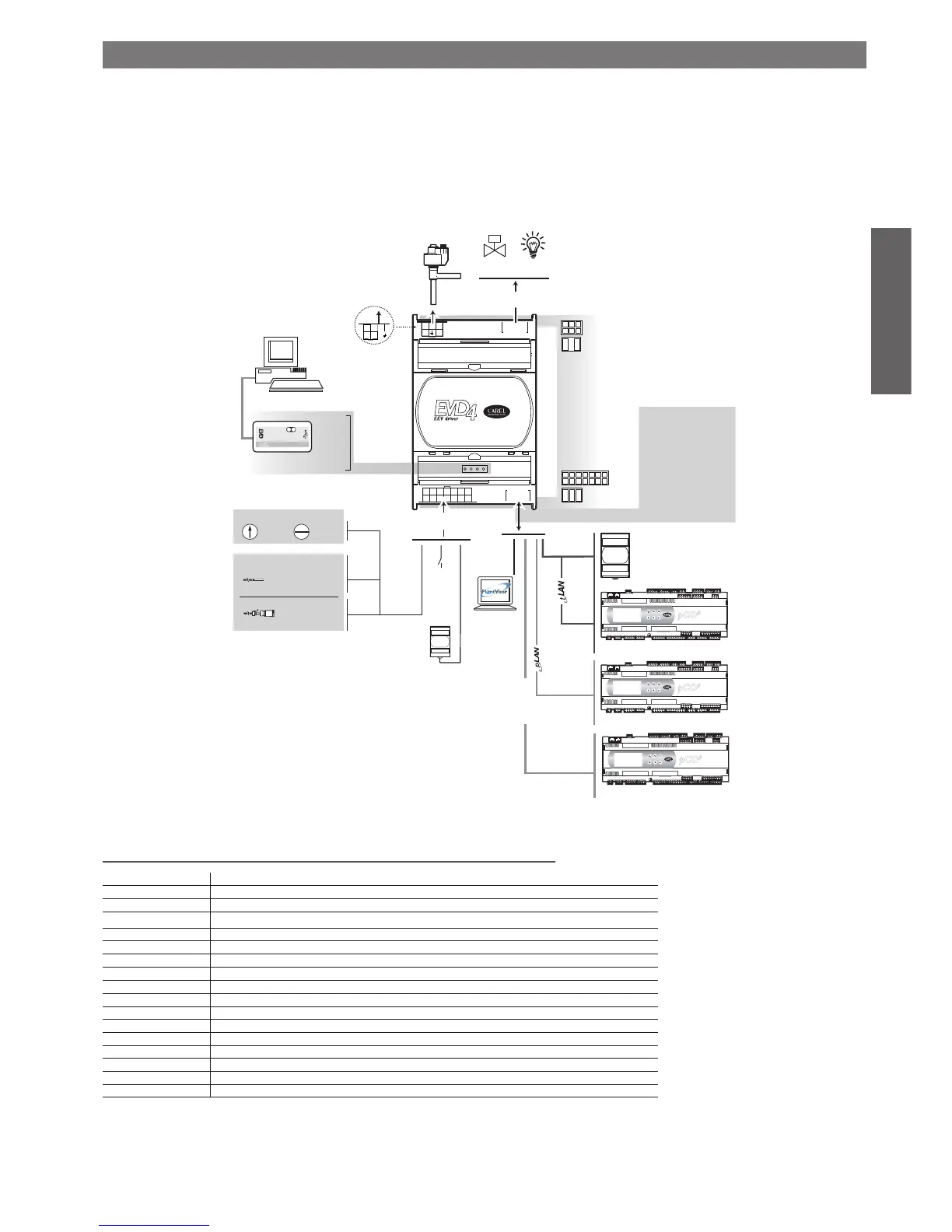

Fig. 1.0
