Carel EVD4 User Manual

14
Fig. 3.8
Fig. 3.6
GNX RT+ RT-
PHOENIX
®
MC1,5/3-ST-3,81
G
G0
G Vbat DI1 S4V S3 S2 S1
G0 GND DI2 S4I Vr1 Vr2 OC
EVD
4
0,8 A T
24 Vac
pCO
230 Vac
Fig. 3.7
ENGLISH
EVD
4
+030220227 - rel. 2.1 - 12.06.2008
3.2 Application with pCO (EVD000*40* and EVD000*43*) via tLAN
3.2.1 Connections

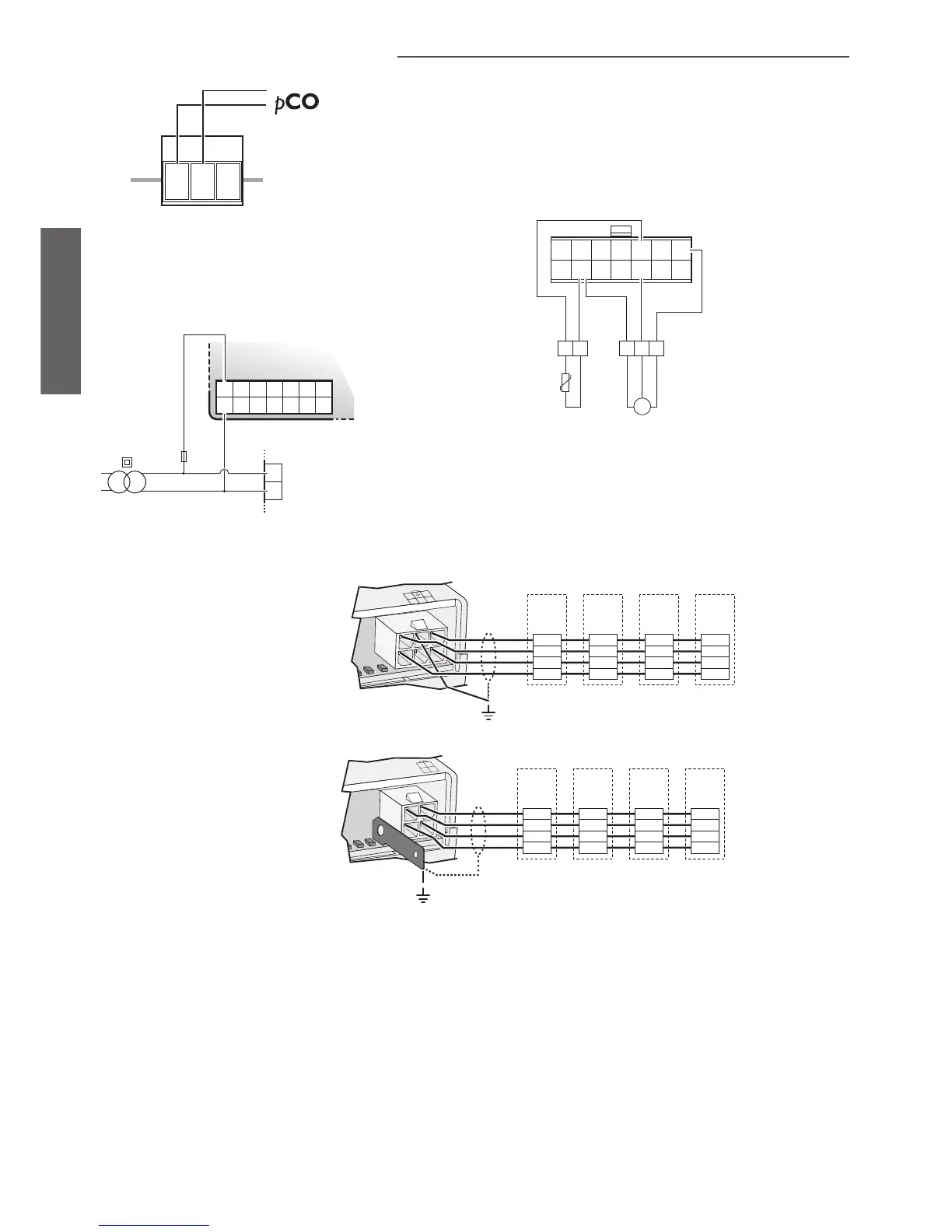

Communication: with reference to Fig. 3.6, connect GNX and RT+ to the pCO unit.
Power supply: with reference to Fig. 3.7, connect G and G0 to the 24 Vac power supply side;
Valve: with reference to Fig. 3.8, connect the valve according to the type set for the “Valve
type” parameter.
Probes: Connect the ratiometric pressure sensors and NTC temperature sensors to S1 and S3
respectively.
For other types of probes or connections, change the value of the “EVD probes type”
parameter and see chap. 4
3.2.2 List of parameters
Below is the list of parameters; the meaning of each is detailed in APPENDIX II, while APPENDIX III shows a
list of the values of the reference parameters in relation to the most common applications.
In the standard application, the EVD4 read and write parameters are organised into three groups, accessible
from a pCO terminal: input/output, maintenance and manufacturer
The SYSTEM SET level must be compiled, as this contains the information on what is physically installed
in the system. Selecting the type of driver and enabling any advanced functions will allow access to
specifi c fi elds/masks in this or other menus.
The AUTO SETUP level of parameters must also be compiled, and contains fundamental information on
the type of unit.
The ADVANCED SET branch is not required for standard superheat control and is provided for expert
users and/or to implement non-standard functions.
G Vbat DI1 S4V S3 S2 S1
G0 GND DI2 S4I Vr1 Vr2 OC
NTC -50T105 °C
S3
NTC*WF*
Temp.
GND
ratiometric +
OUT
Vr1
SPKT*R*
Press.
GND
P
S1
Sporlan
SEI
SEH
CAREL
DANFOSS
ETS
ALCO
EX5/6
2
1
4
3
1
2
3
4
Green
Black
Red
White
Green
Yellow
Brown
White
Green
White
Red
Black
Blue
White
Brown
Black
for code:
EVD00004**
Sporlan
SEI
SEH
CAREL
DANFOSS
ETS
ALCO
EX5/6
2
1
4
3
3
4
1
2
Green
Yellow
Brown
White
Green
Black
Red
White
Green
White
Red
Black
Blue
White
Brown
Black
for code:
EVD00014**
