14. Schemi di collegamento

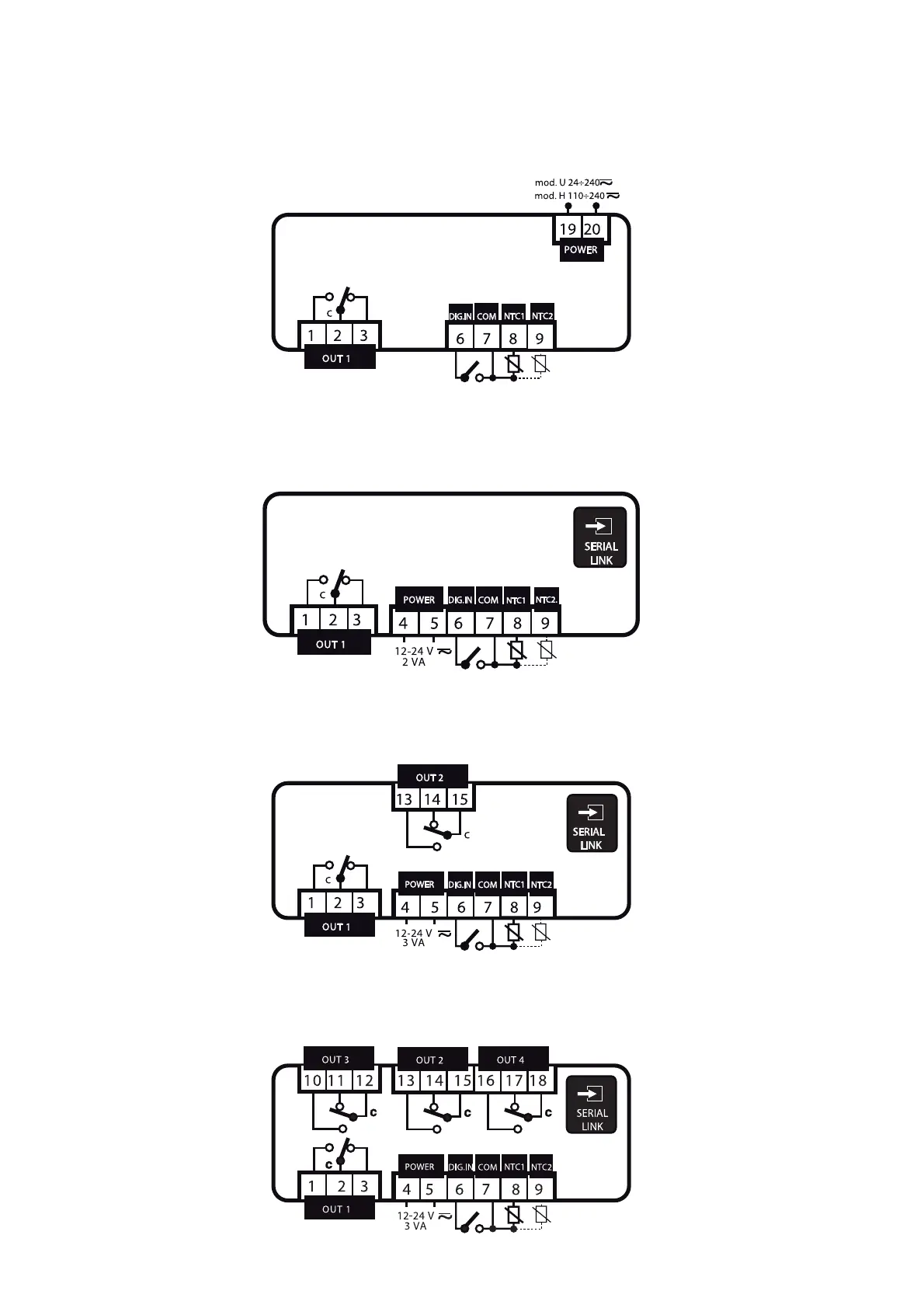

14.1 IR32 versioni con ingresso NTC
IR32V – NTC: Versione V, alimentazione 24/240 o 110/240 Vac-dc
IR32V – NTC: con alimentazione 12/24 Vac-dc
IR32W – NTC:, con alimentazione 12/24 Vac-dc
IR32Z – NTC:, con alimentazione 12/24 Vac-dc
14. Wiring diagrams
14.1 IR32 with NTC input
IR32V - NTC: V version, power supply 24/240 or 110/240Vac-dc
IR32V - NTC: power supply 12/24Vac-dc
IR32W - NTC: power supply 12/24Vac-dc
IR32Z - NTC: power supply 12/24Vac-dc
