3. INSTALLATION
Important
Important: avoid installing the drive in environments with the following characteristics:
• relative humidity higher than 95% or with condensation;
• strong vibrations or knocks;
• exposure to water sprays;
• exposure to aggressive and polluting atmospheres (e.g.: sulphur and ammonia fumes, saline mist, smoke) to avoid
corrosion and/or oxidation;
• strong magnetic and/or radio frequency interferences (thus avoid installation near transmitting antennae);
• exposure of the drive to direct sunlight and the atmospheric agents in general.

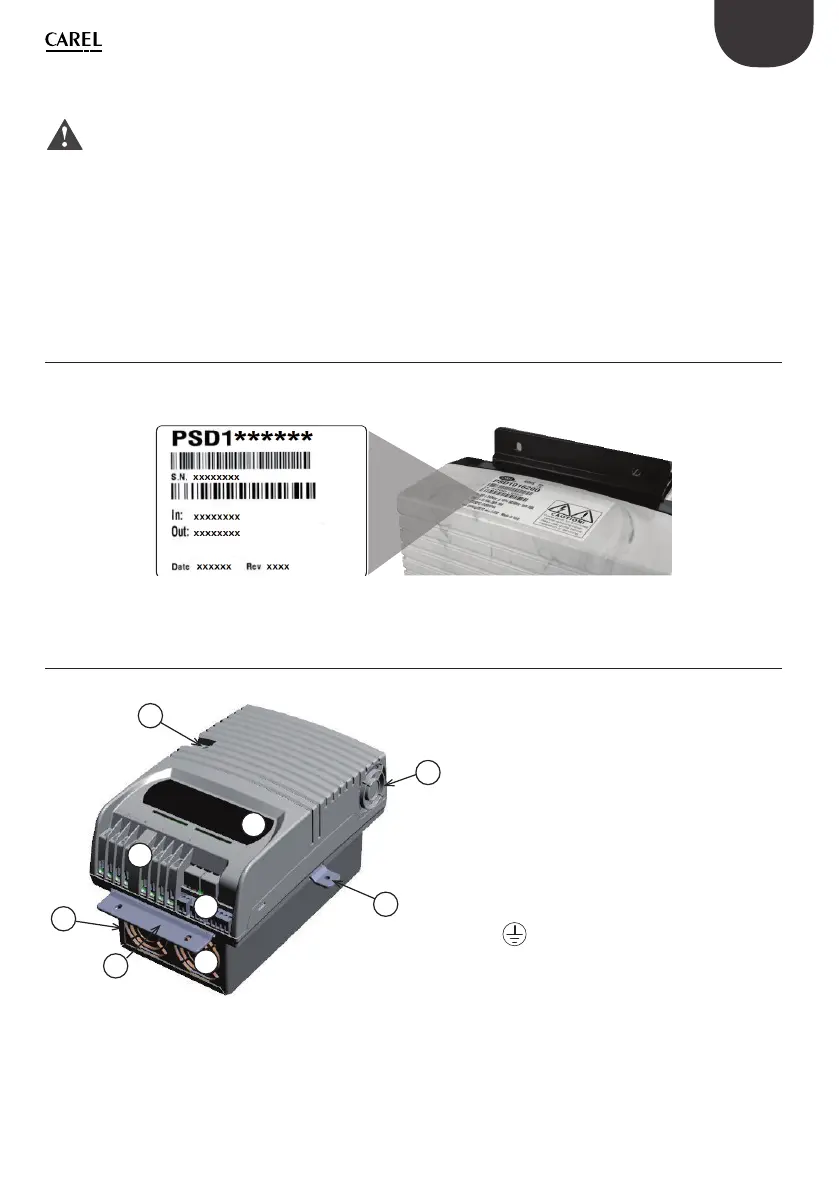

3.1 Identifi cation
Power+ is identifi ed by a rating plate located on the top of the device, which describes the code, serial number,
production date and revision number.
Fig. 3.a
3.2 Structure
A
B
C
D
E
F
C
D
G
Ref. Description
A. Terminal block for power connections
B. Terminal block for control connections
C. Fastening brackets
D. Cooling fans
E. PE
F. Operating status LED
G. Terminal block for optional DC Choke in
PSD10184** and PSD10244**
Fig. 3.b
