3.3 Dimensions
The overall dimensions of the drive vary based on cooling system (size 1 for models with forced air cooled fi nned
heatsink and size 2 for Coldplate models) and the type of assembly (panel or with heat sink outside of the panel, see the
paragraph on “Drilling and assembly”), as the position of the fastening brackets aff ects the total height. The side brackets
are only needed for assembly with the heat sink outside of the panel. All the brackets have 5.5 mm diameter holes.

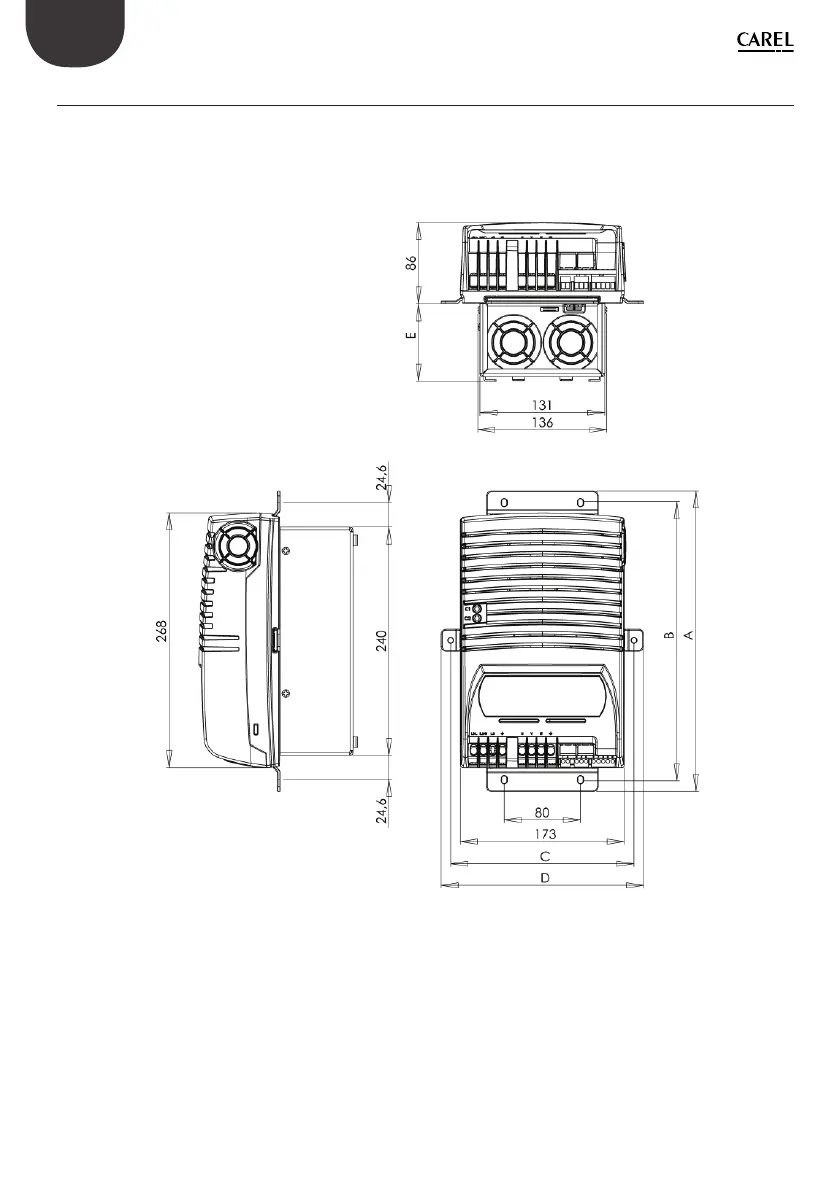

Fig. 3.c
