Carel Power + PSD1 Series User Manual

9 “Power+” +0500048IE - rel 2.2 - 06.11.2014
ENG
Dimensions (mm)
Assembly
weight
(kg)
Heat sink outside panel Panel
Model / size
EABCDAB
PSD1012200 / 1 82 316 289,2 192,3 213 296 269,3 4,3
PSD1016200 / 1 82 316 289,2 192,3 213 296 269,3 4,4
PSD10122A0 / 2 12 316 289,2 192,3 213 - - 2,8
PSD10162A0 / 2 12 316 289,2 192,3 213 - - 2,9
PSD1018400 / 1 82 316 289,2 192,3 213 296 269,3 4,0
PSD1024400 / 1 82 316 289,2 192,3 213 296 269,3 4,1
PSD10184A0 / 2 12 316 289,2 192,3 213 - - 2,4
PSD10244A0 / 2 12 316 289,2 192,3 213 - - 2,5
Tab. 3.c
3.4 Drilling and assembly
For installation with the heat sink outside of the panel (Fig. 3.d), make a hole with dimensions of the dashed rectangle,
where the heat sink will be fi tted, and holes for fastening the brackets. These are inserted in the slots located in the
plastic base.
For panel installation (Fig. 3.e), only use the top and bottom brackets, which are inserted in the slots above and below
the heat sink.

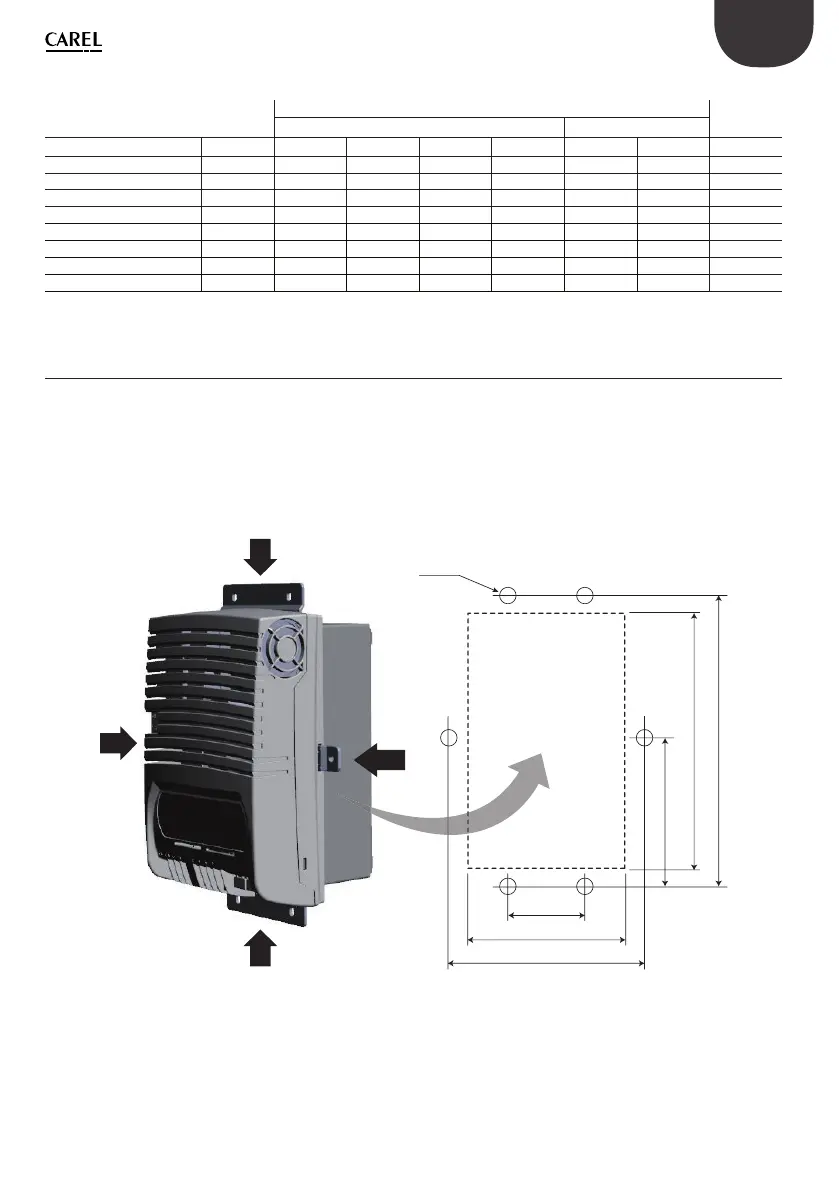

Installation with heat sink outside of the panel
80
145,6
243 289,2
138
192,3
M4
Fig. 3.d
