1. General Installation Rules
Mount the humidifier unit as close
to the steam distributor pipe or
Remote Distribution Unit as
possible to minimize condensate.
Mount the humidifier unit below the
steam distributor pipe or RDU
whenever possible. Insure that a
slope can be maintained in the
steam hoses. Avoid kinks and
gullys in steam hoses which can
trap condensate and cause
problems.

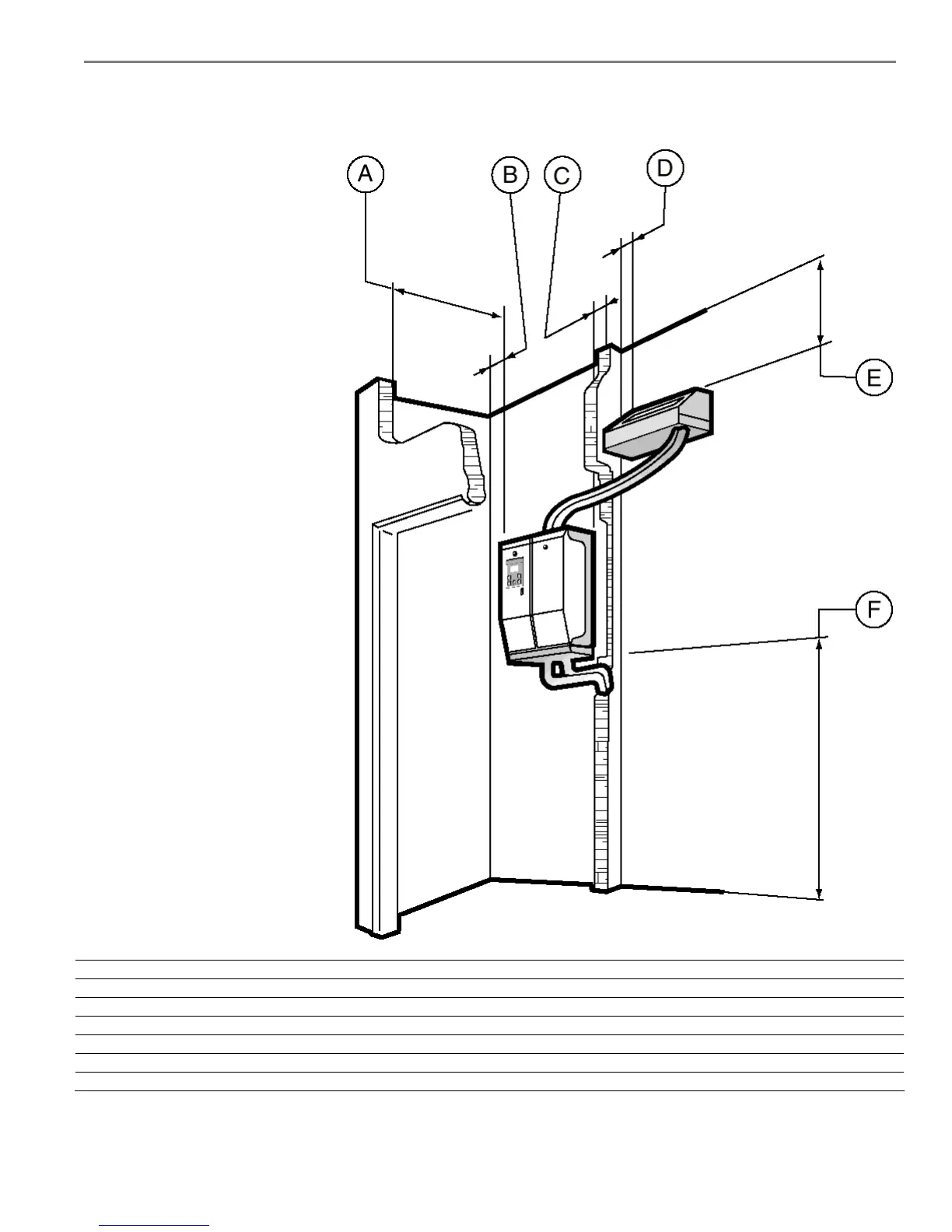

Certain mounting clearances must
be maintained to allow access for
maintenance, and for steam
discharge from an RDU:
DIMENSION 101-103, 303-305 106, 308-313 323-3B3
A 72” 72” 120”
B 12” 24” 36”
C 12” 24” 36”
D 12” 24” 36”
E 24” 24” 48”
F 12” 12” 12”
NOTE: Dimension A is clearance required in front for maintenance and RDU steam discharge.
NOTE: Maximum length of rubber steam hose is 20 feet. Insulated copper tubing to 40 feet.
