Carel SmartCella 3PH Quick Guide

9
ENG
“SmartCella 3PH” +0500119IE - rel. 1.3 - 21.11.2019

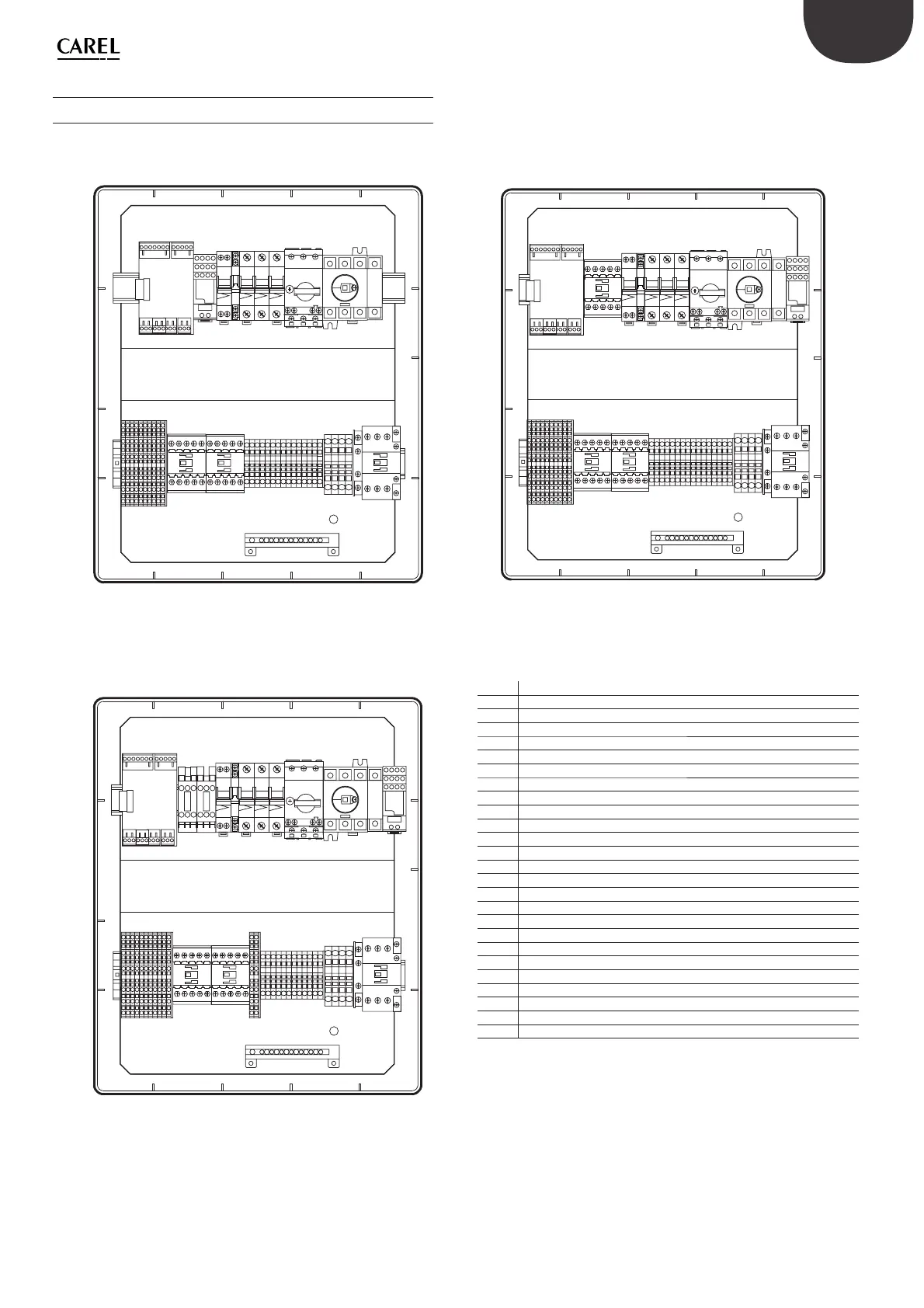

1.5 Layouts and components
1.5.1 SmartCella 3PH
WP00E11A100, WP00E21A100, WP00E31A100,
WP00E41A100, WP00E51A100
WP00E42A200, WP00E62A200, WP00E72A200
A1
KRI
QF2
QF1
KM2
KM3KM1
U1
PE2
QM1 QS1
XA1
XP1
A1
XA1
XP1
QF2
QF1
KM1
KM4
KM3
KM2
U1
PE2
KR1
QM1 QS1
Fig. 1.e Fig. 1.f
WP00E73B300
A1
KM5
XA1
XP1
KM4
QF2
QF1
KM1 KM3
KM2
U1
PE2
KR1
QM1 QS1
Fig. 1.g
P/N Description
A1 SmartCella electronic board
KR1 Alarm relay
HL1 Power light
HL2 Evaporator light
HL3 Compressor light
HL4 Alarm light
HL5 Defrost light
KM1 Evaporator fan contactor
KM2 Compressor contactor (condenser auxiliary contact)
KM3 Defrost heater contactor
KR1 Alarm relay
QF1 Evaporator/condenser fan/defrost heater circuit breaker
QF2 Auxiliary circuit breaker
QM1 Compressor motor protector
QS1 Main disconnect switch
XA1 Auxiliary terminal block
XP1 Power terminal block
KM4 Condenser contactor
KM5 Condenser contactor (capacity control)
KRI Compressor relay
PE2 Earth
PE1 Earth
PE3 Earth
U1 Earth terminal
FU1 Safety fuses
