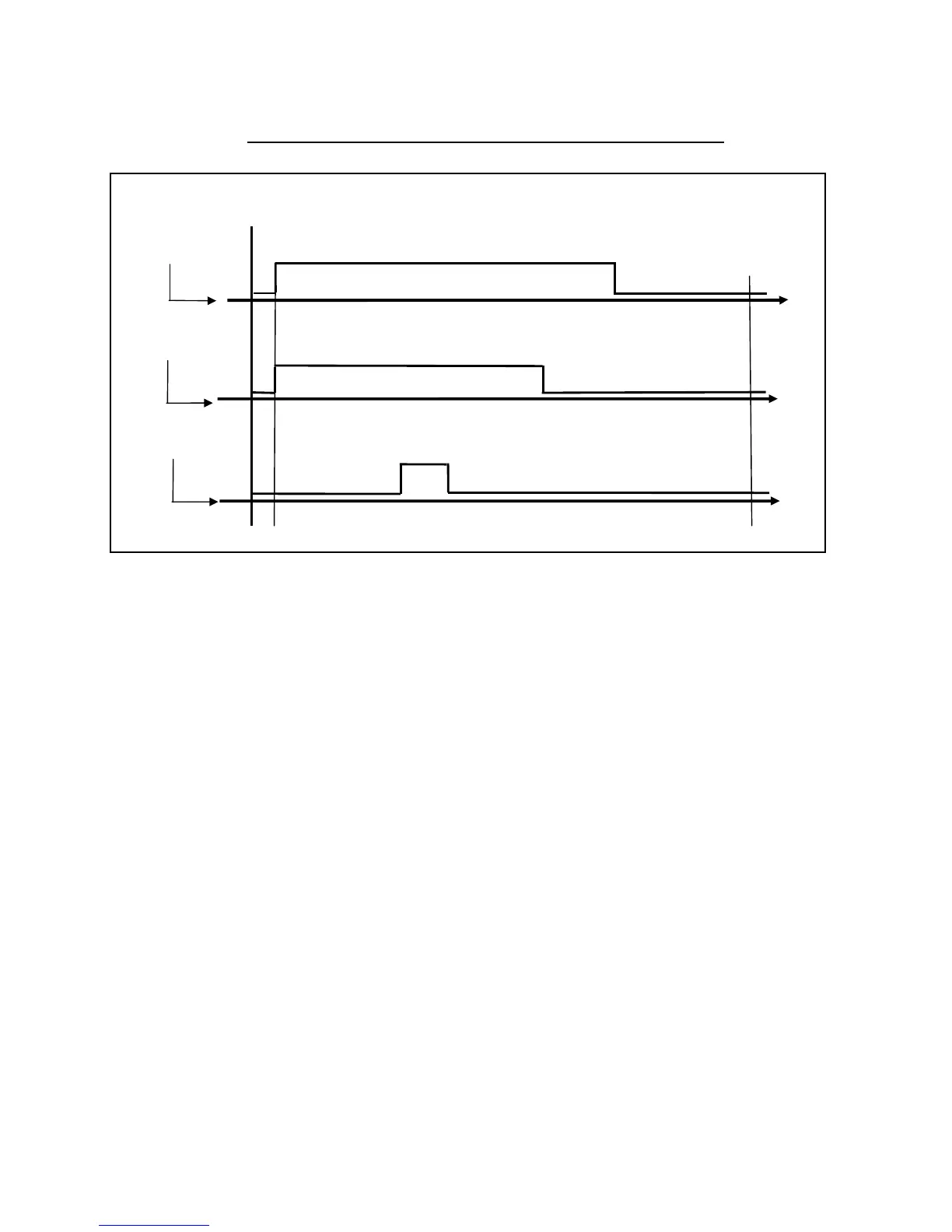

SCHEMATIC SUMMARY OF STEAM AND COFFEE BOILER HEATING PHASE
Heating element On
Temperature sensor ( Please Wait )
Steam boiler Heating element Off
ON Set-up ( Select Drink )
OFF
0 °C °C
Milk frother
solenoid valve Solenoid valve open
ON
OFF Solenoid valve close
0 °C 95°C °C
Coffee group
solenoid valve Rinsing phase
ON
OFF 50°C
°C
