Allow the brass cuff to spring back into place, locking the Boretrak2 probe in line with the deployment adaptor.
To disconnect the probe, retract the brass cuff, move the probe so it is at a 90° angle with respect to the deployment
adaptor and disengage the probe from the deployment adaptor.

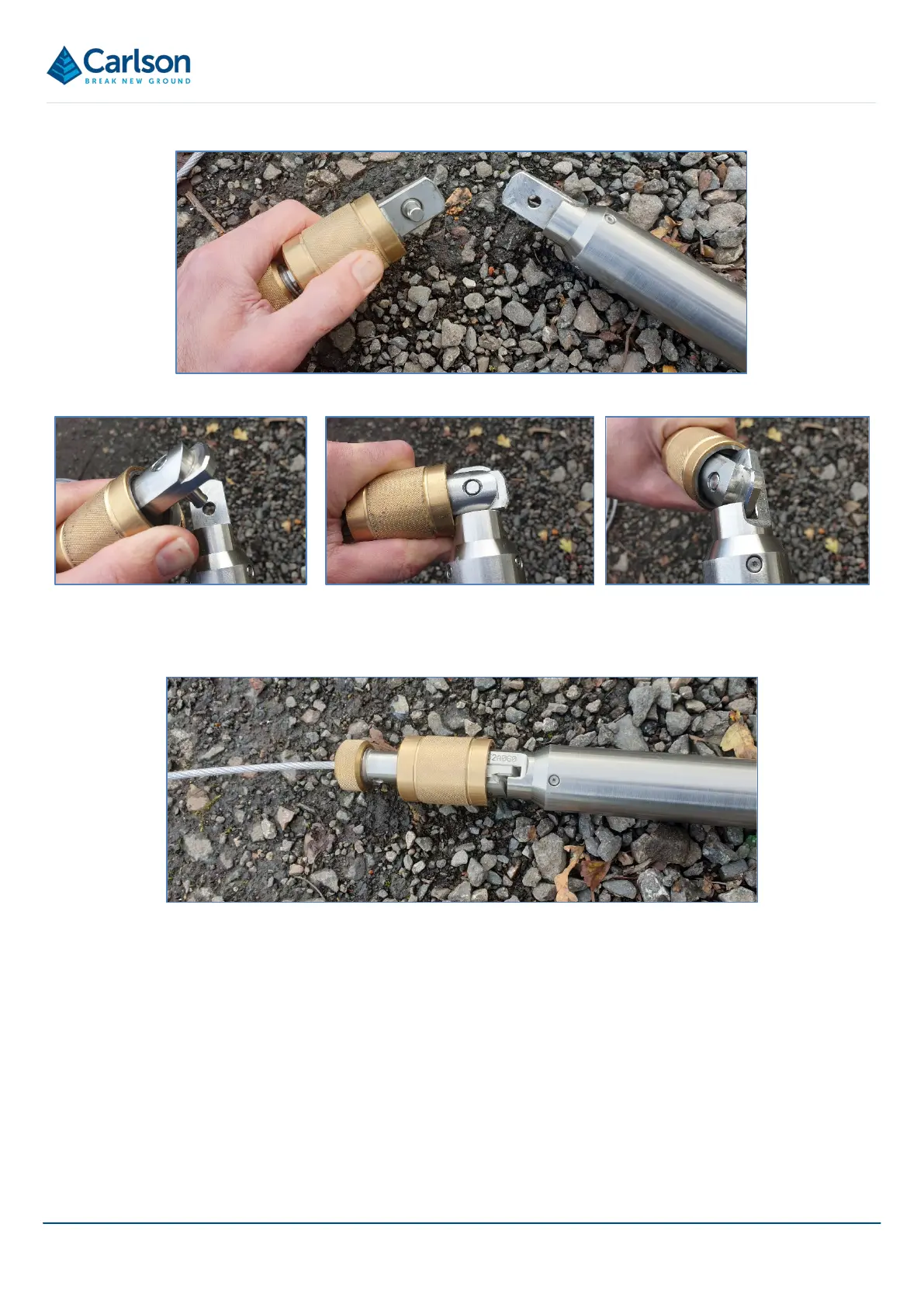

Figure 44 Connecting the deployment adaptor to the probe
Figure 45 Retracted deployment adaptor ready to connect to the probe
Figure 46 Deployment adaptor connected to the probe

Carlson Boretrak2 Specifications

General

Brand	Carlson
Model	Boretrak2
Category	Measuring Instruments
Language	English
