Carlton 3500D - SWING CYLINDER ASSEMBLY - 3 X 8

3500D HYDRAULIC ASSEMBLY
74

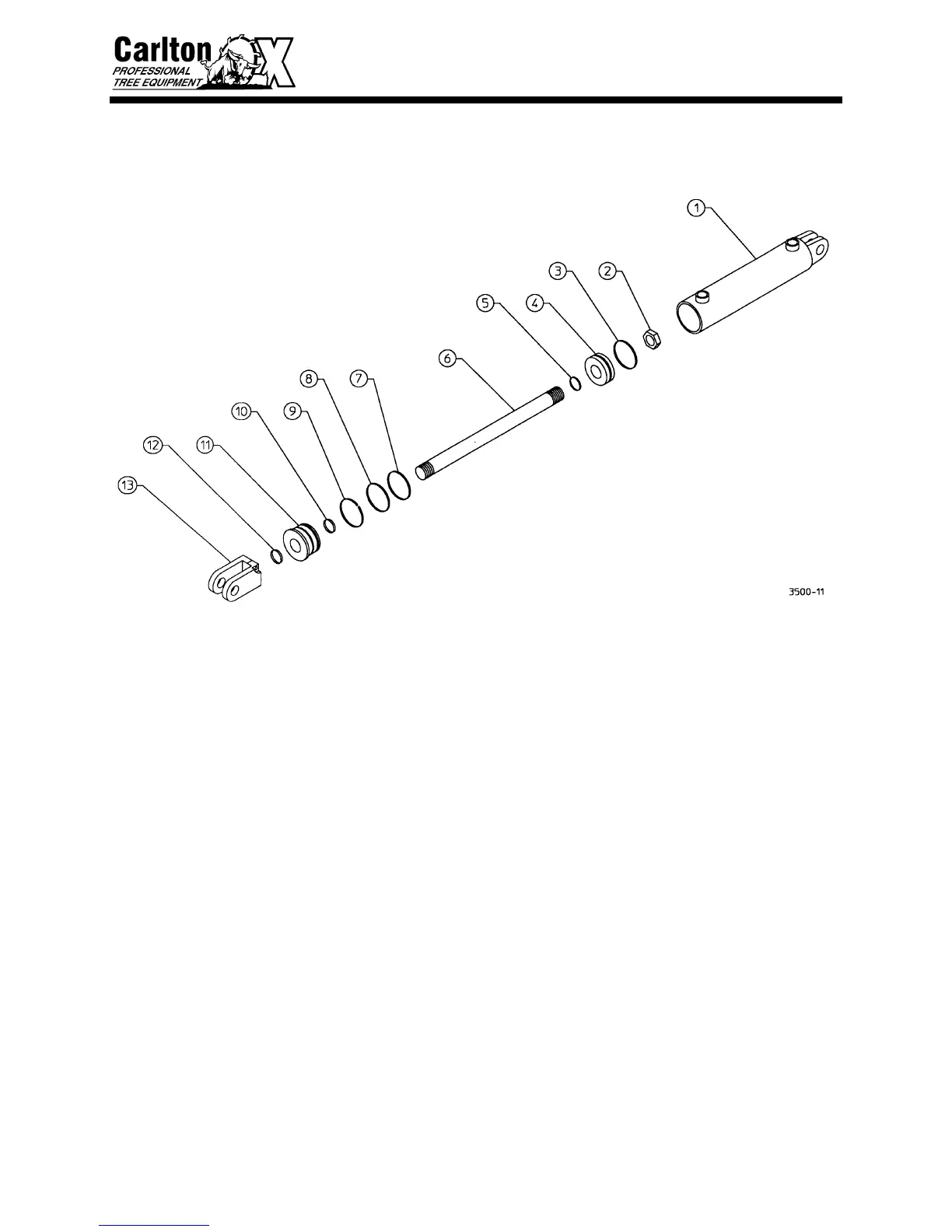

SWING CYLINDER ASSEMBLY – 3 X 8
(Assembly Part # 0300105D)
ITEM NO PART NO DESCRIPTION QTY
1 Body Assembly 1
2 Lock Nut 1”-14 1
*3 Crown Seal 1
4 Piston 1
*5 O-Ring 1
6 Piston Rod 1
*7 O-Ring 1
*8 Bu-Washer 1
*9 Square Retaining Ring 1
*10 U-Cup 1
11 End Cap 1
*12 Rod Wiper 1
13 0300195 Clevis 1
** 030011OD Packing Kit (includes all * items)
