3500D HYDRAULIC ASSEMBLY
75

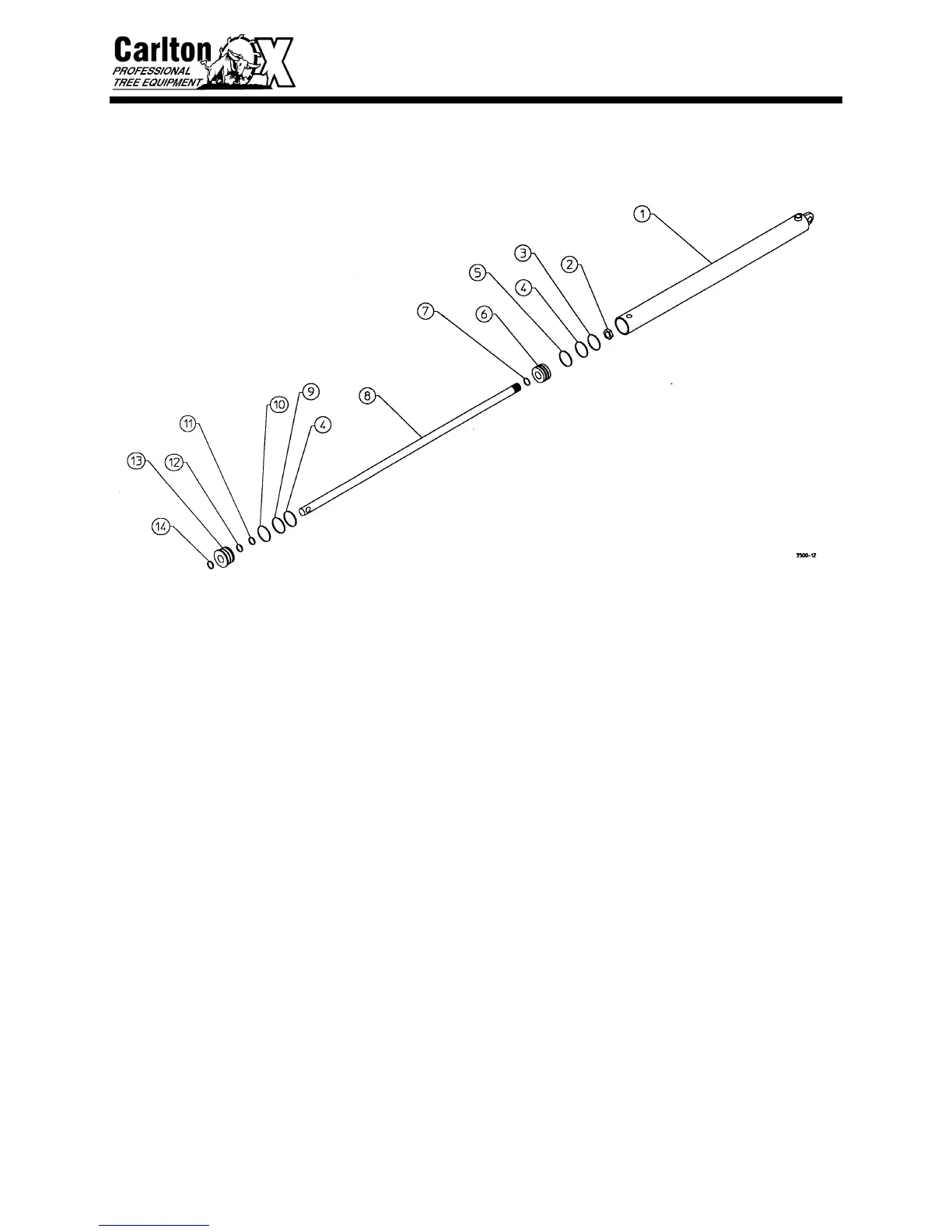

TONGUE CYLINDER ASSEMBLY – 3 X 48
(Assembly Part # 0300105G)
ITEM NO PART NO DESCRIPTION QTY
1 0300089 Body Assembly 1
2 0150222 Lock Nut 1”-14 1
*3 0300164 Piston Ring 1
*4 0300151 O-Ring 2
*5 0300166 Bu-Washer 1
6 0300161 Piston 1
*7 0300149 O-Ring 1
8 0300090 Piston Rod 1
9 0300169 Bu-Washer 1
*10 0300163 Snap Ring 1
*11 0300165 Quad Ring 1
*12 0300167 Bu-Washer 1
13 0300162 End Cap/Gland 1
*14 0300168 Rod Wiper 1
** 0300110F Packing Kit (includes all * items)
