Revised 3.15.05
SERIAL NUMBERS
OWNER DOMAIN
J.P. CARLTON COMPANY DIV. DAF INC.
STUMPCUTTERS
2 VALVE BOX/ENGINE/ELECTRICAL
DESCRIPTION
ISSUE
R2

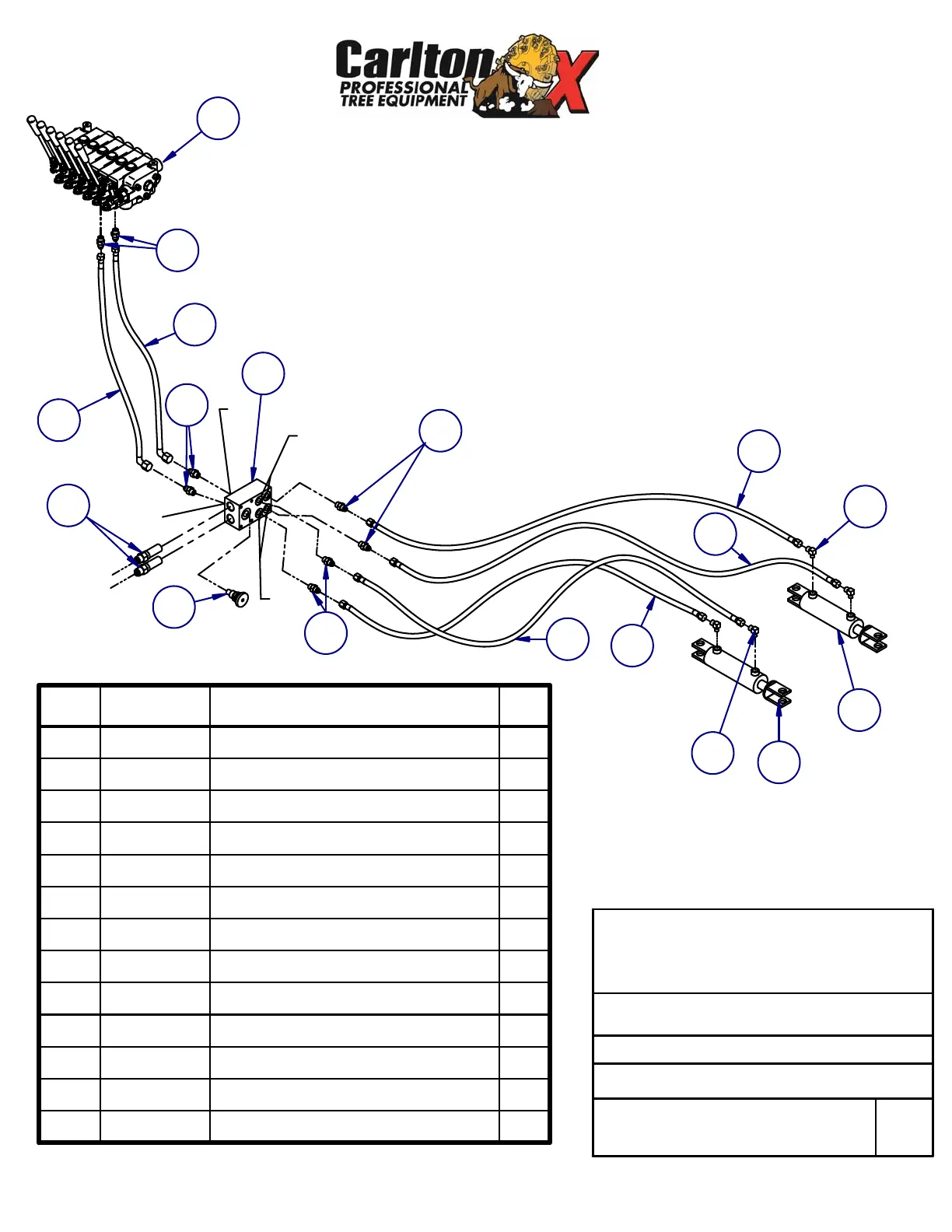

MANUAL VALVE SWING HYD, ASSEMBLY
DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
BUSINESS LINE
FUNCTION GROUP
12
PART ITEM DESCRIPTION QTY
1 0300377 Control Valve 5014TRX Manual 1
2 0300138 VICKERS NEEDLE CARTRIDGE 1
3 0300127A 25-4 SWG MANFLD W/ NDLE CVTY 1
4 0300120A C/B CARTRIDGE VALVE-CBCG-LKN 2
5 0300105Z1 HYDRAULIC CYLINDER-2X4 2
6 03002257 3/8 JIC-3/8 ORB-6400-6-6 8
7 0300219 1/2 JIC-1/2 ORB 90-6801-8 4
8 HSP501415 HOSE ASSEMBLY 1
9 HSP501414 HOSE ASSEMBLY 1
10 HSP501418 HOSE ASSEMBLY 1
11 HSP501416 HOSE ASSEMBLY 1
12 HSP501417 HOSE ASSEMBLY 1
13 HSP501419 HOSE ASSEMBLY 1
V1
V2
C1
C2
13
12
7
5
7
11
10
6
3
6
4
2
6
8
9
6
5
1
To Next Page
