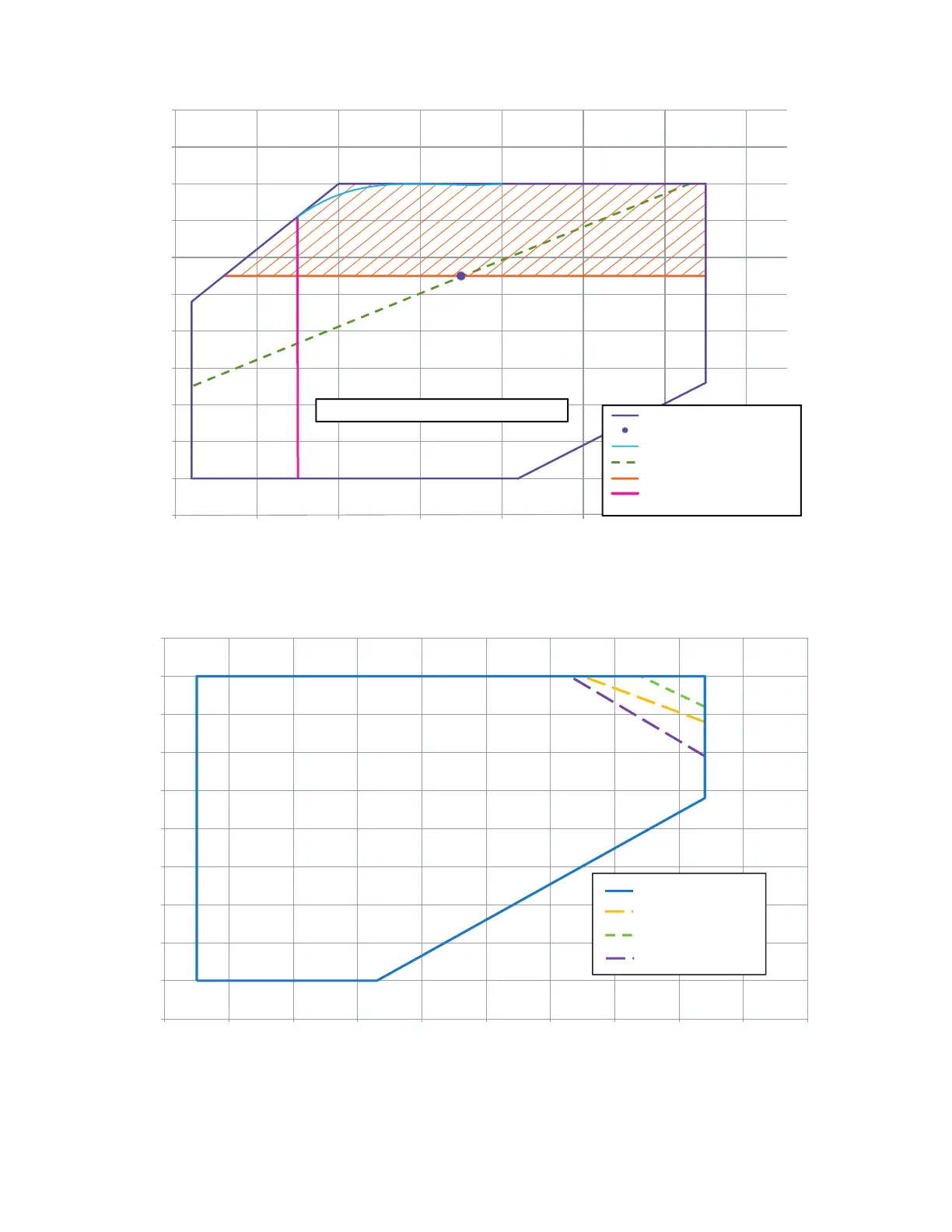

Fig. 11 — Paragon Low Temperature Operating Envelope
Saturated Discharge Temperature (ºF)
150
140
130
120
110
100
RangPoint
90
80
70
60
50
-45° F
40
Liquid Injecon Mass Flow < 30% Sucon Mass Flow
R-404A/ R-507A Envelope
Rang Point (-25 / 105)
50% Load Line
Unloaded
Motor Cooling Required in this Region
SaturatedSucon Temperature Limit of
R-407A, R407C, R407F, R448A, R449A
-60 -50 -40 -30 -20 -10 0 10
Saturated Suction Temperature (ºF)
Fig. 12 — Paragon Medium Temperature Operating Envelope
Saturated Discharge Temperature (°F)
140
130
120
110
100
90
80
06TSM137 & All Models
70
06TSM155 Limit Line
06TTM266 Limit Line
60
06TTM301 Limit Line
50
40
-30 -20 -10 0 10 20 30 40 50 60 70
Saturated Suction Temperature (°F)
