34
5.3.7 CCM Controller Display Features
The CCM controller requires the user to install the Virtual
BACview6 software to their laptop. This software can be
obtained at www.carlylecompressor.com under software.
Once installed, using the USB-L interface cable, the user
can configure and setup the controller, view inputs, out-
puts, status, and fault codes.
BACview6 Virtual Display
The virtual BACview so
ftware (see Fig. 28) simulates the
BACview6 Handheld keypad and display. It has all the
same functionality as the BACview6 device except that it
is a software-based application that is easily displayed on
any laptop.
Once the BACview6 software is installed, the user will
use the 12-ft interface cable (Carlyle Part# USB-L) to
communicate between the laptop and the CCM. Drivers
are supplier with the
USB-L cable. Install the drivers to
the laptop. See Fig. 29. This is also covered in the
BACview User Guide.

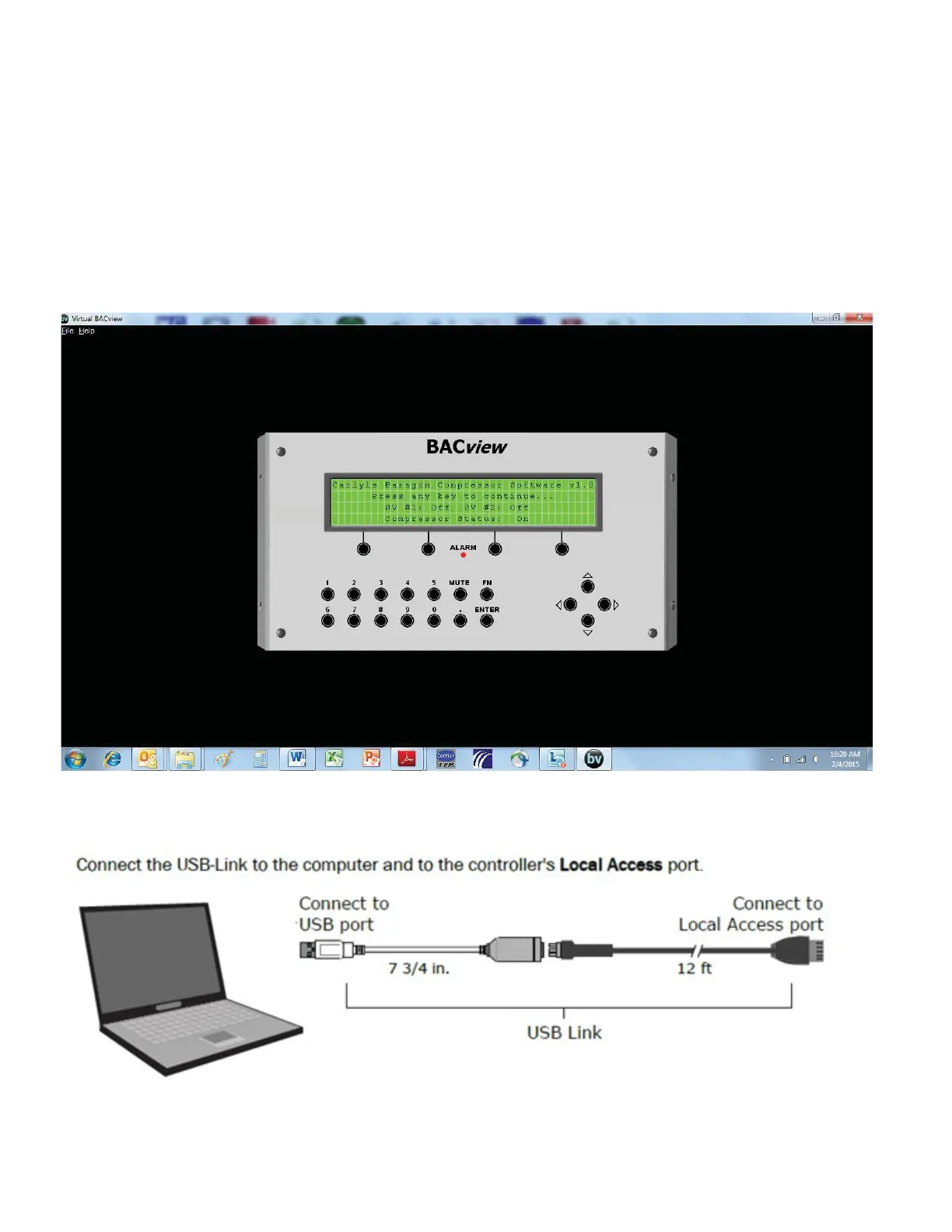

Fig. 28 — BACview6 Laptop Display
Fig. 29 — Laptop-to-BACview6 Connection Schematic
