6. E-bike operation - LCD Compact EX
⚠
CAUTIONS
Before you ride:
• Regardless of your experience level, you should read the “Introduction” chapter of
this Owner’s Manual and carry out all important safety checks.
• The e-bike system can only be activated when the battery is suciently charged.

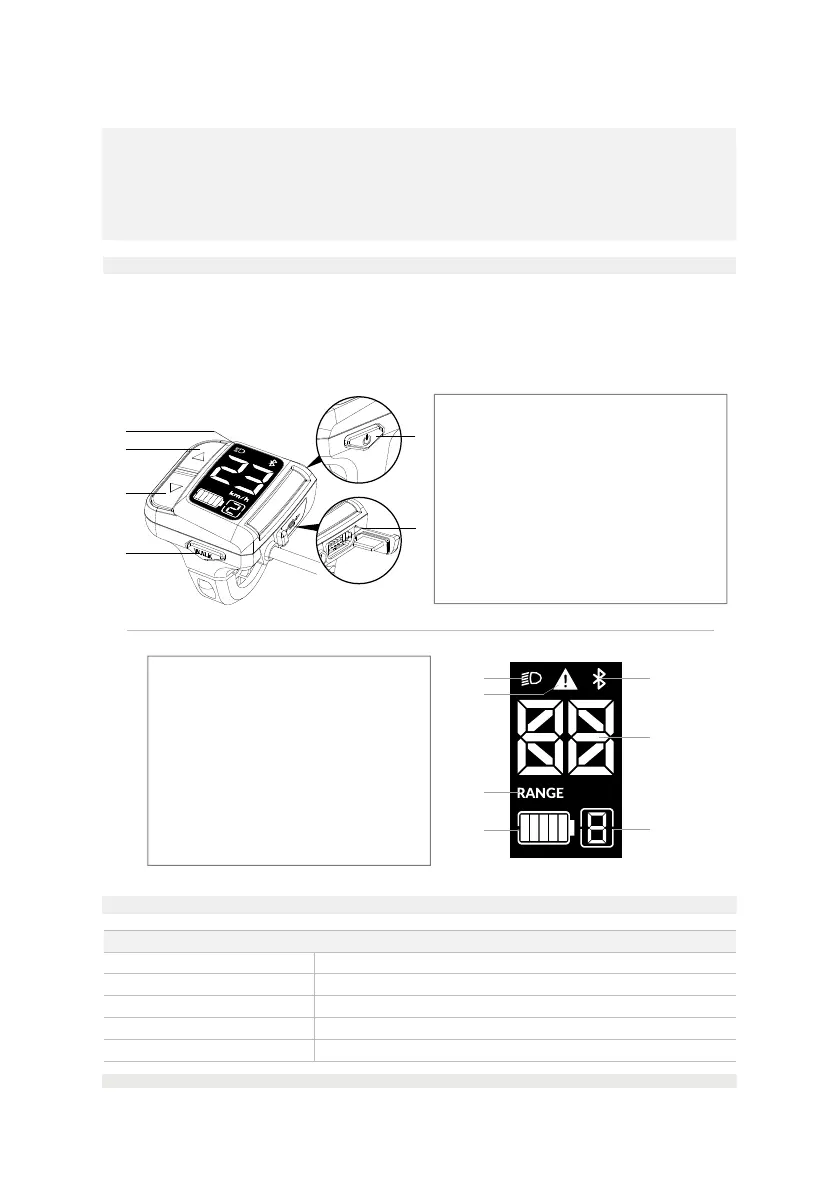

A. Display screen
B. Up & Increase support level button
C. Down & Decrease support level
button
D. Walk-assist button
E. Poweron/o󰀨button
F. USB connection/charging port
a. Light
b. Error indicator
c. Display information type
d. Battery Level
e. Bluetooth status
f. Speed/range
g. Support level
6.1. Technical data of the console
Item Specication
Product model
LCD Compact EX
Operating temperature -10°C(14°F)to60°C(140°F)
Storage temperature -20°C(-4°F)to70°C(158°F)
Protection rating IPX5
Weight, approx. <0.05kg(<0.11lbs)
A
E
B
C
F
D
a
b
c
d
e
f
g
6.2. Console overview and display element
Control the e-bike with the
LCD Compact EX
console,includingswitchingon/o󰀨,selecting
thelevelofridingsupport,turnthelightson/o󰀨,andusingthewalkassistancefunction.
