Carrier 19FA Series Installation Instructions

Service Clearance
Component
A (Diameter) B (Length)
ft-in. mm ft-in. mm
Motor DM-DQ 1 - 11 1/4 591 3 - 7 1/2 1105
Motor EA-EE 2 - 2 3/4 679 4 - 1 1/4 1251
Nozzle
Type
Nozzle Sizes (in.)
Cooler Passes Condenser Passes
1 2 1 2 3 4
Marine 14 14 18 18 14 12
NIH 20 12 24 18 14 12
Condenser Tube Pull
Condenser Size
C (Length)
ft-in. mm
32 12-3 3734
32L 17-1 1/2 5220

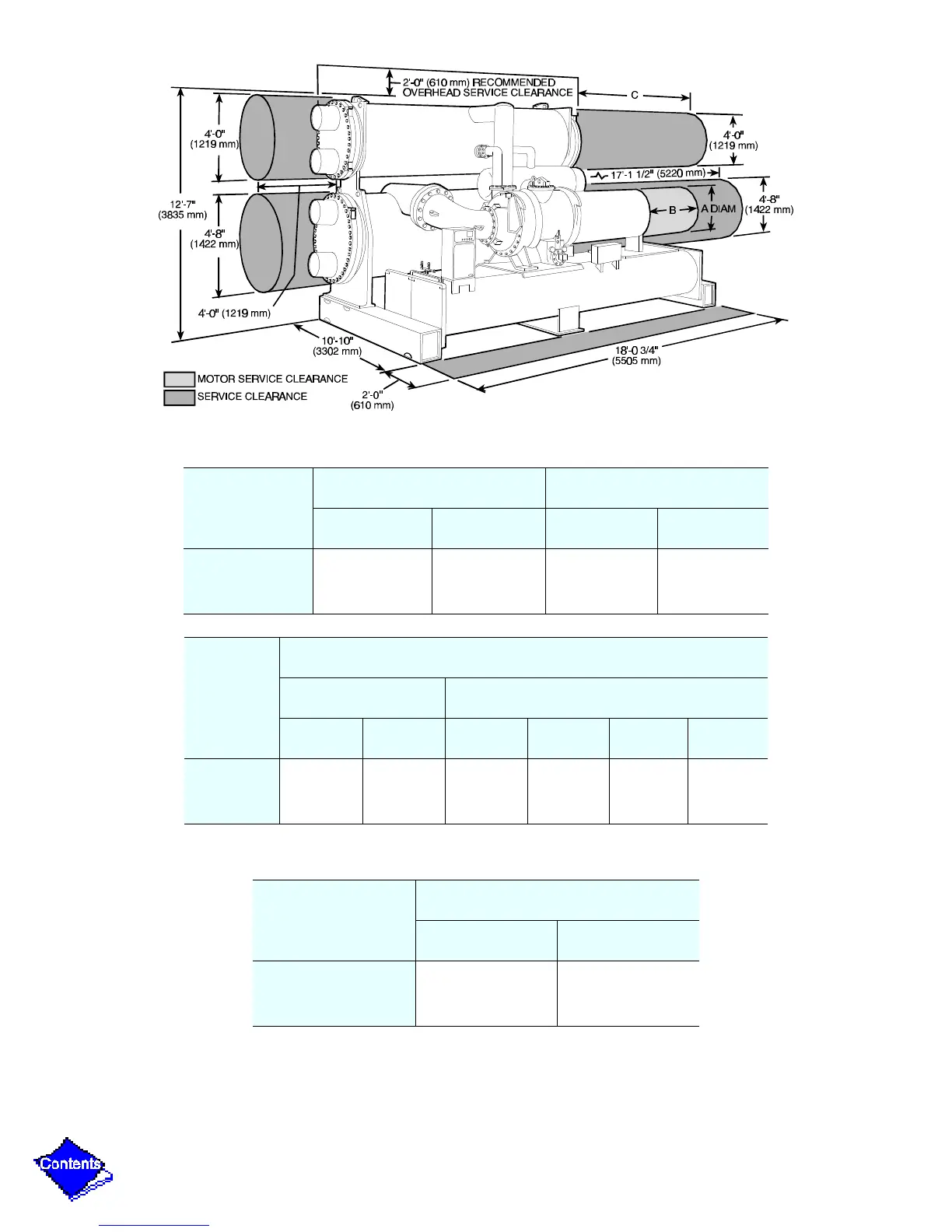

Figure 4 — 19FA Dimensions
