Carrier 19FA Series Installation Instructions

Legend
ANSI — American National Standards Institute
RF — Raised Face
Cooler Nozzle No.
No. of Passes
In Out
1 42 47
1 42 18
1 42 49
1 43 47
1 43 48
1 43 49
1 44 47
1 44 48
1 44 49
1 47 42
1 47 43
1 47 44
1 48 42
1 48 43
1 48 44
1 49 42
1 49 43
1 49 44
Cooler Nozzle No.
No. of Passes
In Out
2 40 42
2 40 43
2 40 44
2 41 42
2 41 43
2 41 44
2 45 47
2 45 48
2 45 49
2 46 47
2 46 48
2 46 49
Nozzle Arrangements
Cooler Marine Waterboxes

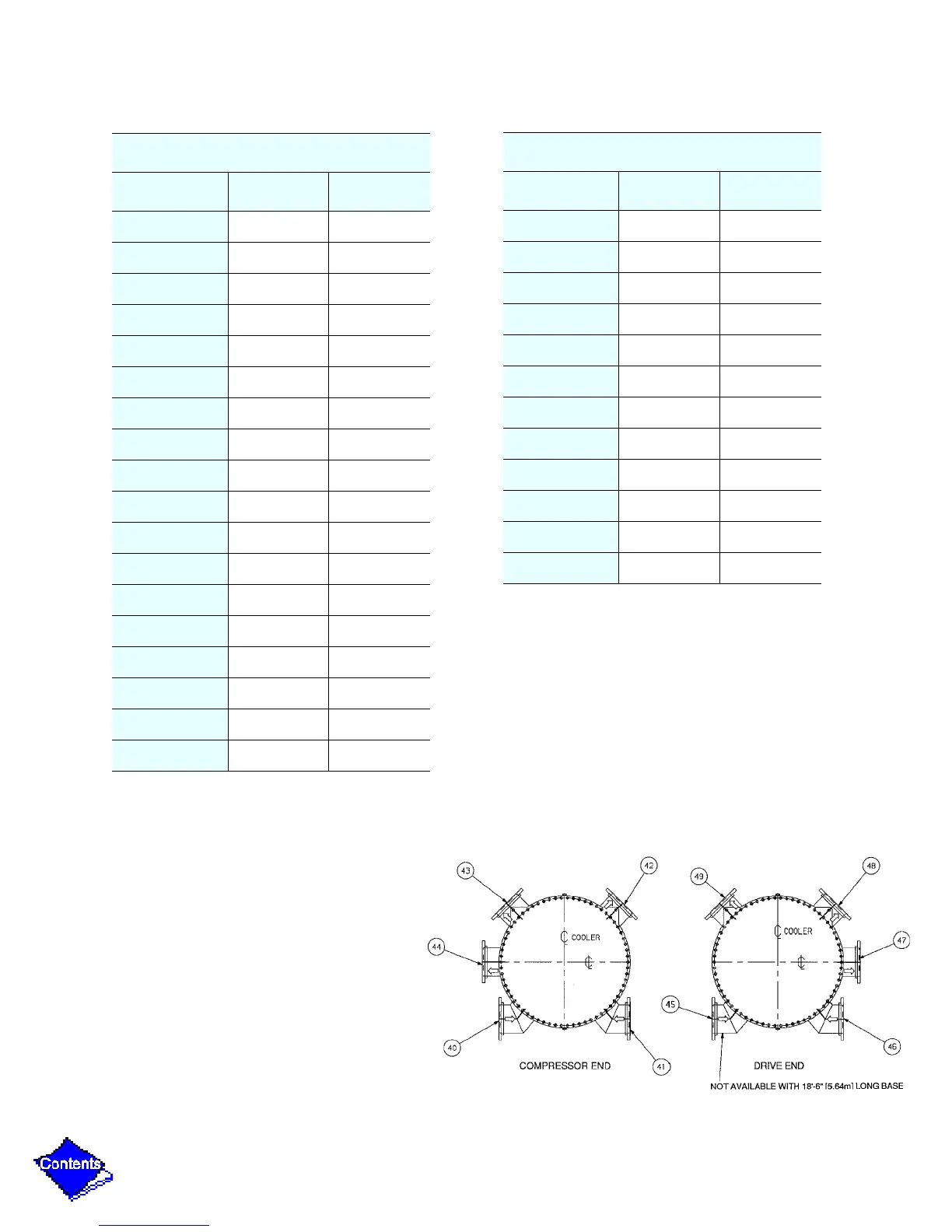

Figure 8 — Piping Flow Data (Cooler, Marine Waterboxes)
