Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Replaces: 38MGR-03SM

DISASSEMBLY INSTRUCTIONS SIZES 36 AND 48 (CONT)

6The

expansion

valve

How to remove the expansion

valve

1) Complete the steps in the

Fan Assembly and Panel

Plate sections.

2) Remove the electrical parts

as described in the

Electrical Parts section.

3) Remove the coil.

4) Detach the welded parts of

the expansion valves and

the pipes.

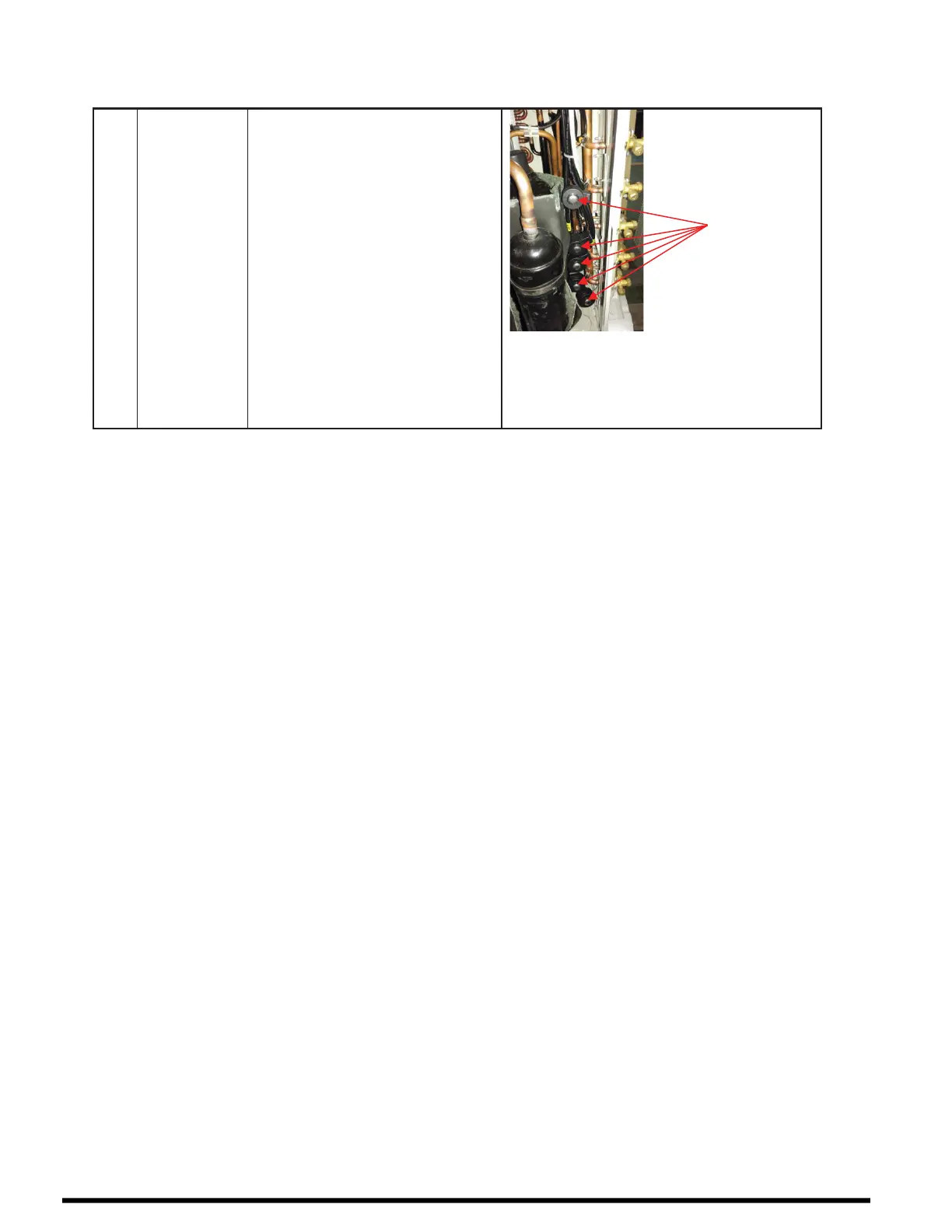

Expansion

valves
