CLEARANCES

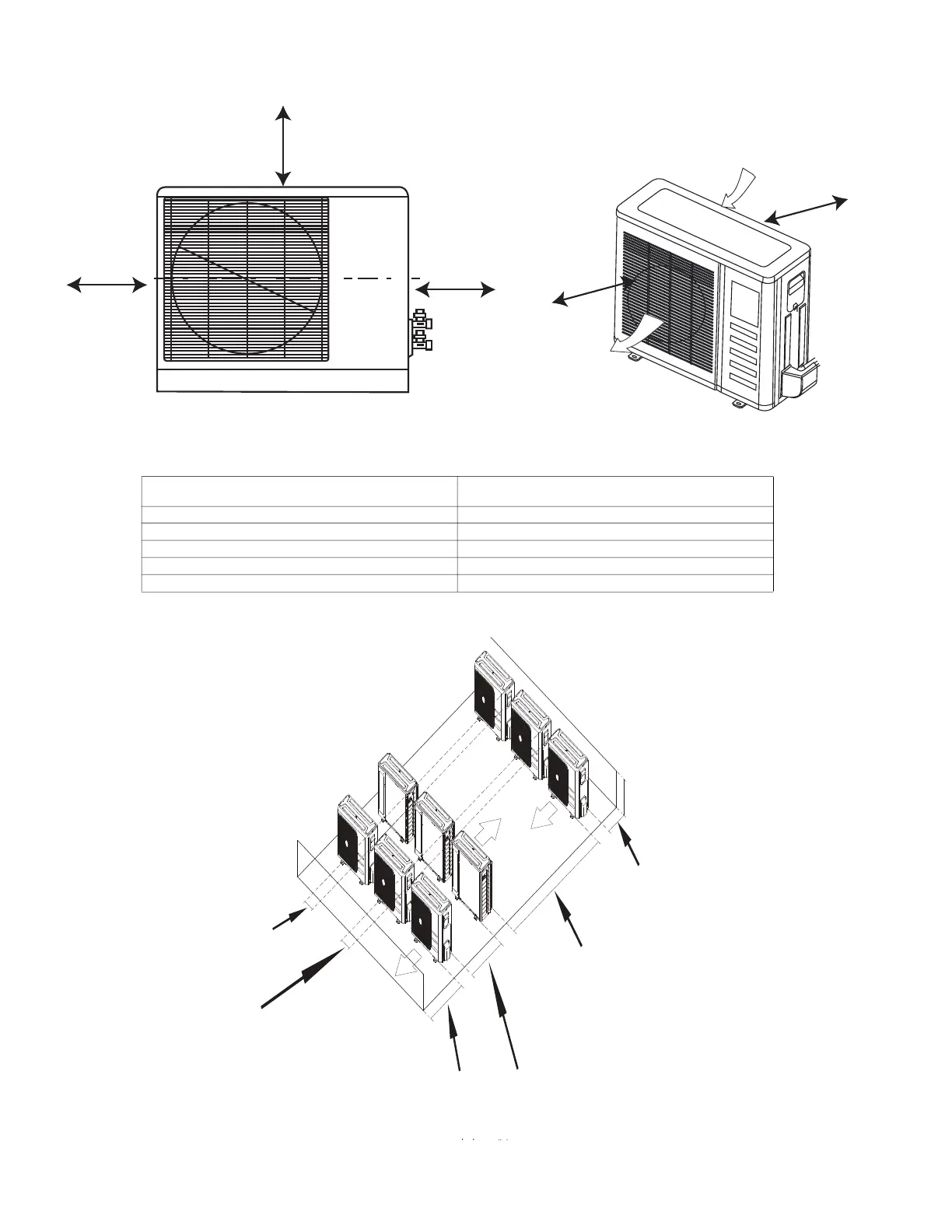

Fig. 6 — Unit Clearances
Table 4 — Unit Clearances
NOTE: The outdoor unit must be mounted at least 2 in. (50mm) above the maximum anticipated snow depth.
Fig. 7 — Clearances for multiple units
UNIT
MINIMUM VALUE
in. (mm)
A 24 (609)
B 24 (609)
C 24 (609)
D 4 (101)
E 6 (152)
A
D
B
Air-outlet
Air-inlet
C
E
59in (150cm)
or more when
facing each other
19in (48cm) or more on
a multiple parallel unit
arrangement 4in (10cm)
or more on a single
parallel unit arrangement
24in (60cm)
or more
59in (150cm)
or more on a
multiple parallel
unit arrangement
24in (61cm) or more
i l ll l
9.8in (25cm) or more for proper airflow
24in (61cm) or more is recommended
for service
9.8in (25cm) or more for proper
airflow 24in (61cm) or more
is recommended for
service
