38MGR-04SM Specifications subject to change without notice. 83
DISASSEMBLY INSTRUCTIONS SIZE 24 (CONT)
2 Fan
assembly

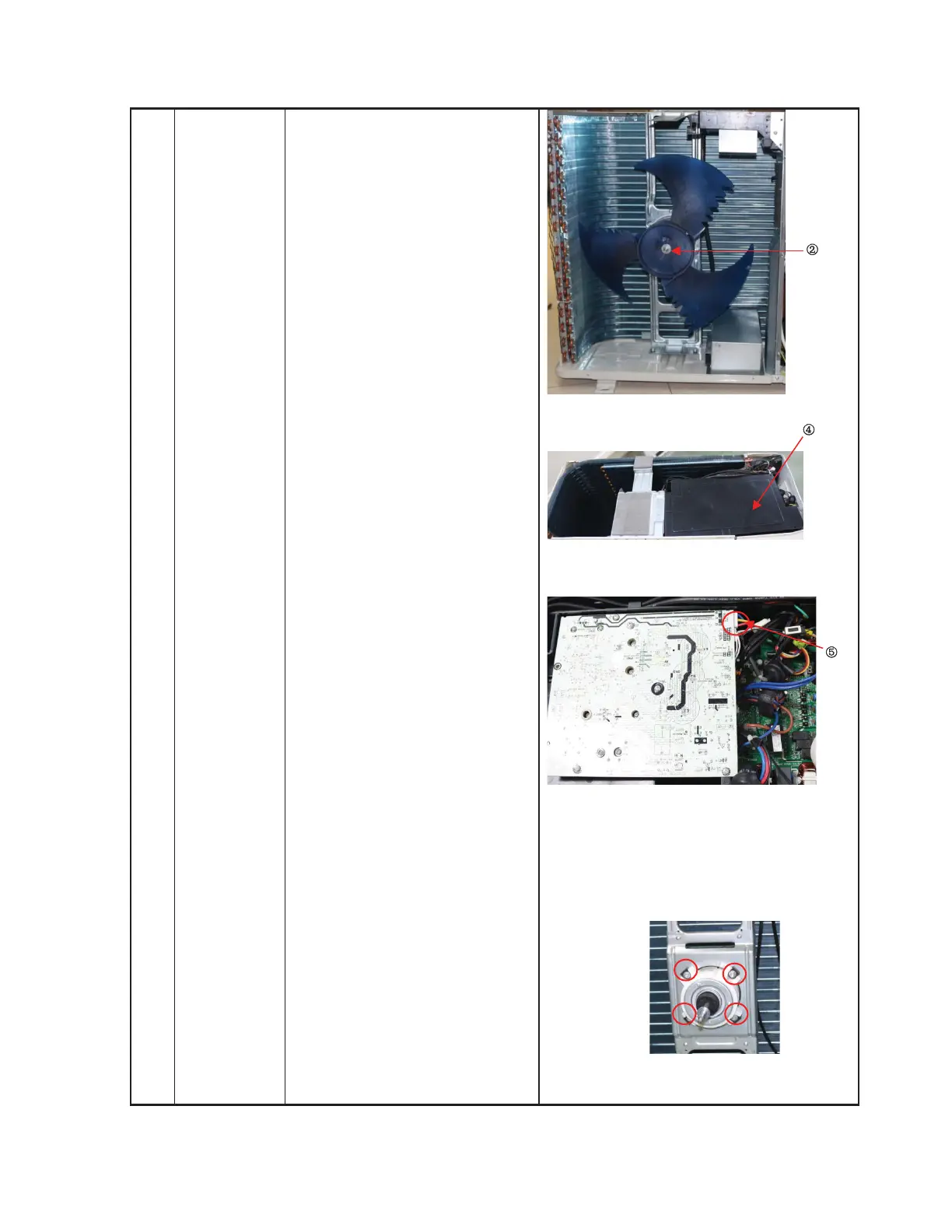

How to remove the fan
assembly.
1)
Remove the top cover, right
front side panel and the
front panel. See “How to
”Remove the Panel Plate.
2) Remove the hex nut
securing the fan.
3) Remove the fan.
4) Remove the electrical
control box.
5) Disconnect the fan motor
connector CN14 (5p,white)
from the IPM board.
6) Remove the screws (4)
securing the fan motor then
remove the fan motor.
