DISASSEMBLY INSTRUCTIONS SIZE 24 (CONT)
4 Compressor How to remove the compressor
1)
Complete steps in the
“Panel Plate, Fan Assembly,
and Electrical Parts sections.
2) Remove the electrical
control box and partition
plate.
3) Extract the refrigerant gas.
4) Remove the sound
insulation material and
crankcase heating cable.
5) Remove the compressor
terminal cover, the
compressor thermo
disconnect wires and the
compressor from the
terminal.

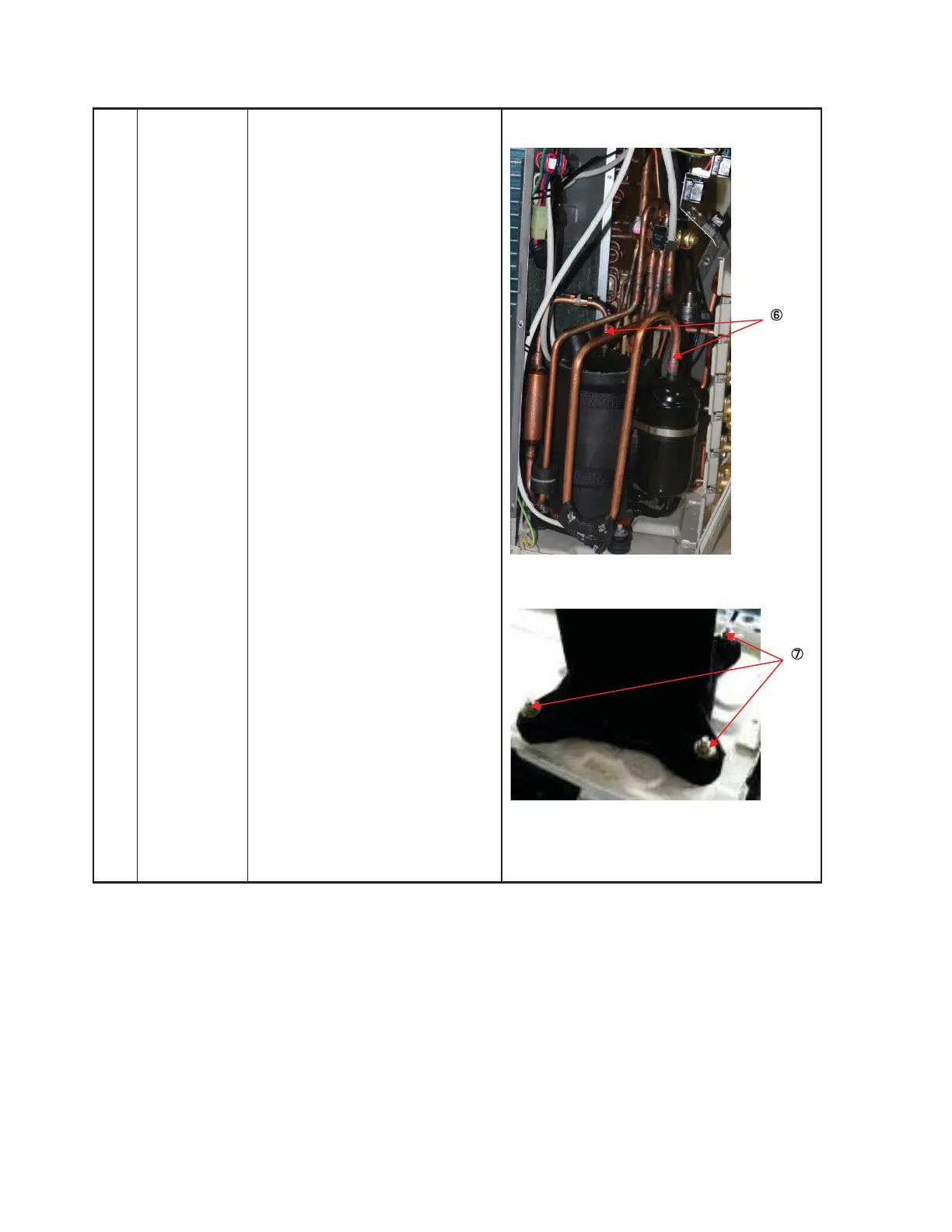

6) Remove the discharge pipe
and the suction pipe with a
burner.
7) Remove the hex nuts and
washers securing the
compressor to the bottom
plate.
8) Lift the compressor.
