Carrier 38MGRQ24C 3 Series - Disassembly Instructions Sizes 36 and 48

96 Specifications subject to change without notice. 38MGR-04SM
DISASSEMBLY INSTRUCTIONS SIZES 36 AND 48
No Part name Procedures Remarks
1 Fan
assembly

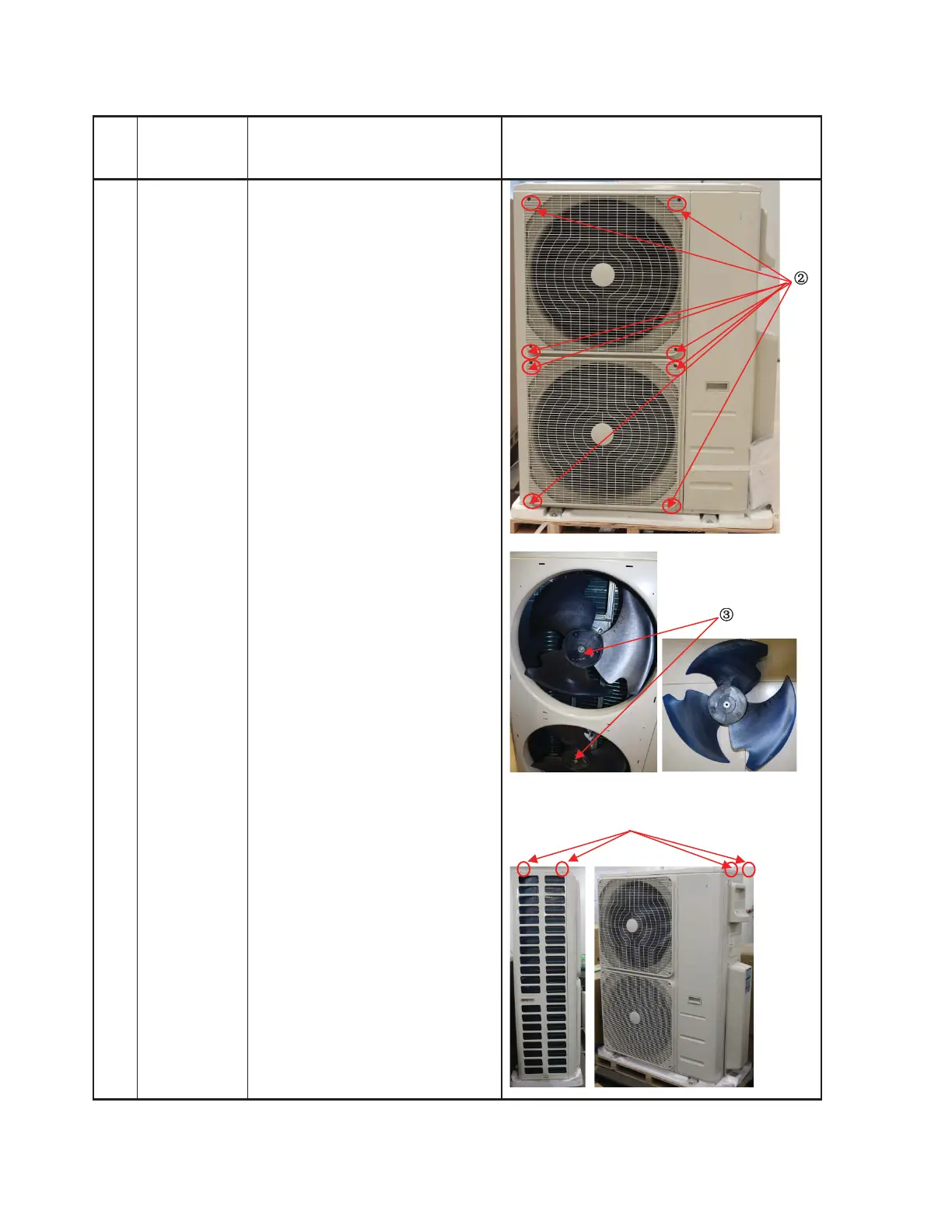

How to remove the fan assembly
1) Turn off the air conditioner.
Turn off the power breaker.
2) Remove the air outlet grille
screws (8).
3) Remove the hex nut
securing the fan.
4) Remove the fan.
5) Remove the top screws (4)
and then remove the top
cover.
Top screws
