DIAGNOSIS AND SOLUTION (CONT)

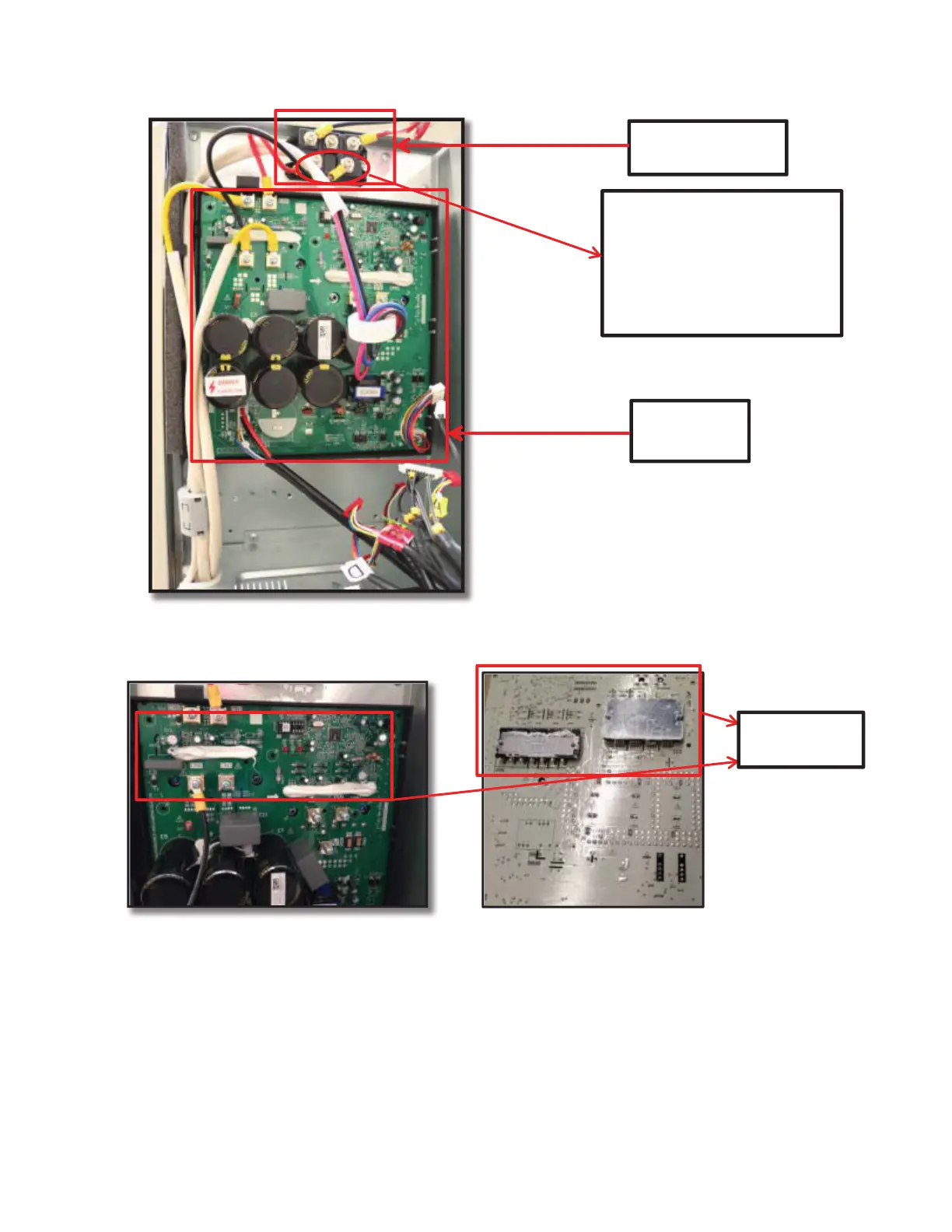

Fig. 56 — Bridge Rectifier (for 5-zone)
Fig. 57 — IPM Module (for 5 - zone)
IPM board
(for 5-zone)
Bridge rectifier
(for 5-zone)
Remark:
Measure the DC voltage
between + and - port.
The normal value should be
190V~250V.
IPM Module
(
for 5-zone
)
