92 Specifications subject to change without notice. 38MGR-04SM

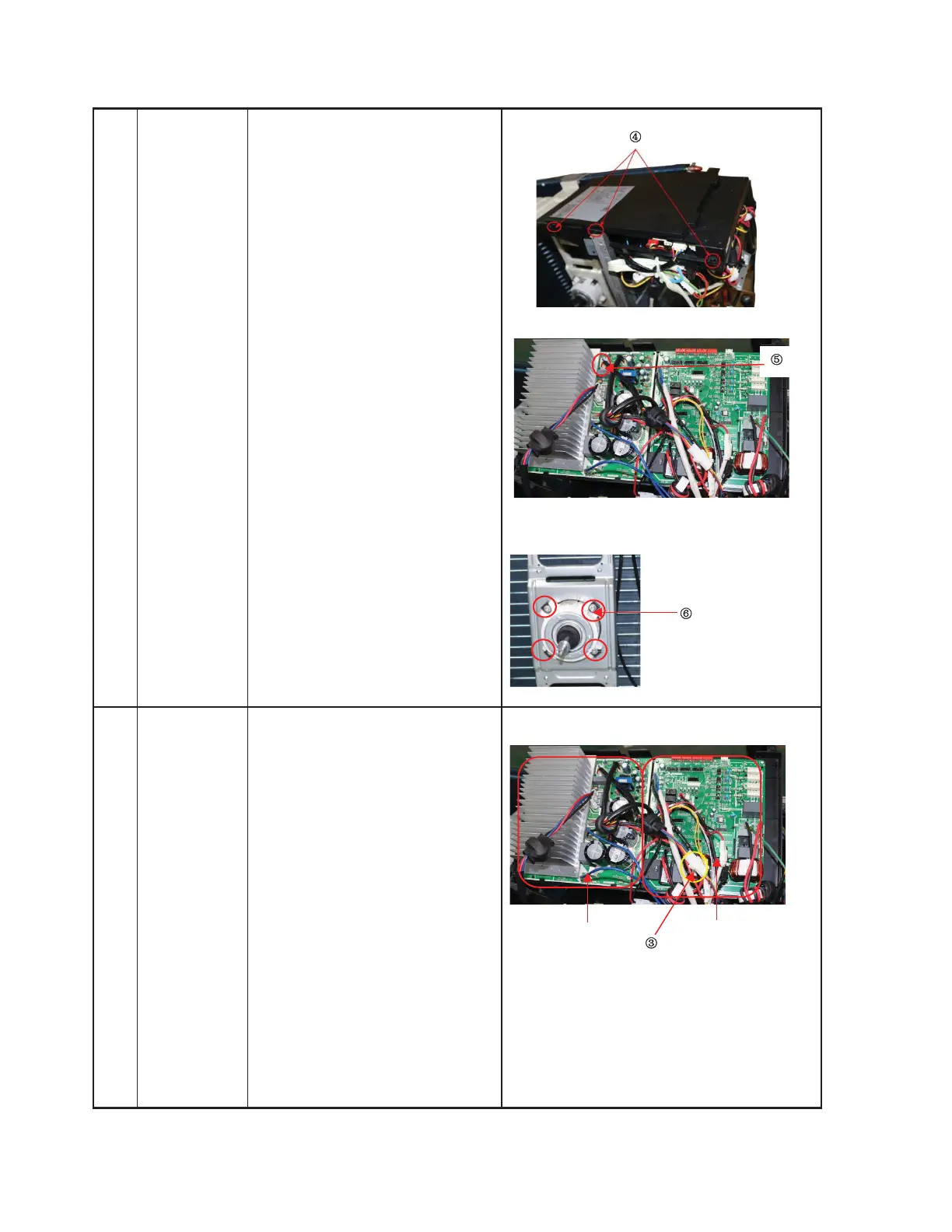

DISASSEMBLY INSTRUCTIONS SIZE 30 (CONT)

3) Remove the fan.

4) Undo the hooks, remove

the screws, and then open

the electrical control box.

5) Disconnect the fan motor

connector CN19 (3P, white)

from the driver board.

6) Remove the screws (4) and

then remove the fan motor.

3 Electrical

parts

How to remove the electrical

parts.

1) Complete the steps in the

“Panel Plate and ”Fan

Assembly” sections.

2) Remove the connector.

Remove the compressor

connector.

4) Remove the PFC inductor

connector.

Driver board

PCB board
