94 Specifications subject to change without notice. 38MGR-04SM

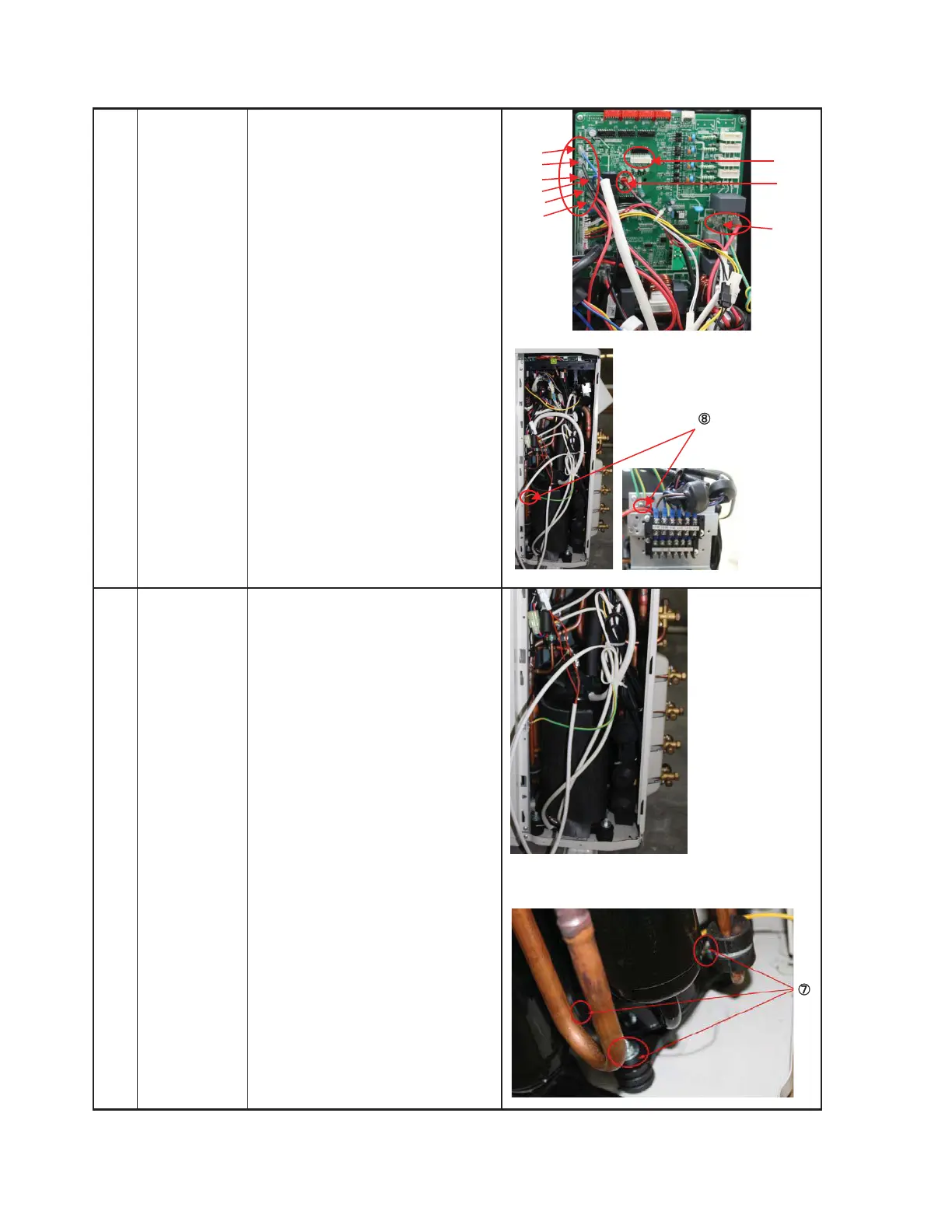

DISASSEMBLY INSTRUCTIONS SIZE 30 (CONT)
cable (black-red)
CN1:L1-IN (red)
CN2:L2-IN (black)
8) Disconnect the grounding
wire (yellow-green) after
removing the right-rear
panel.
9)
4 Compressor How to remove the compressor.
1) Complete the steps in the
“Panel Plate”, “Fan
Assembly”, and “Electrical
Parts” sections.
2) Remove the electrical
control box and the partition
plate.
3) Extract the refrigerant gas.
4) Remove the sound insulation
material and the crankcase
heating cable.
5) Remove the compressor
terminal cover, disconnect
the compressor thermo
wires, and disconnect the
compressor from the
terminal.
CN13
CN33
CN3
CN4
CN10
CN22
CN40
CN44
CN2 CN1
Wires:
CN3/CN22: 4-way valve (blue-blue)
CN4/CN40: Crankcase heating cable
(black-red)
CN10/CN44: Crankcase heating
Remove the PCB board.
