– 15 –

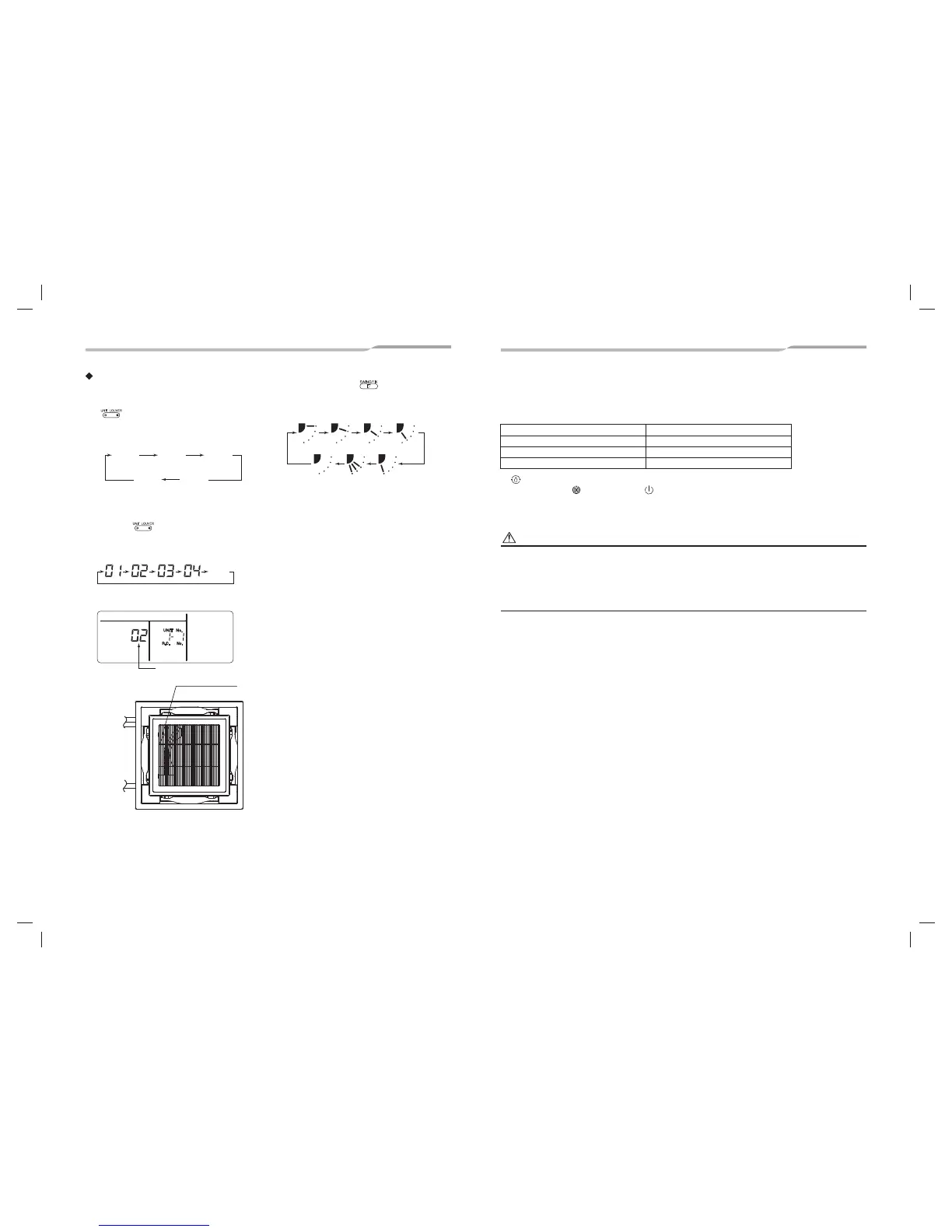

How to set louver wind direction
individually
1 Select an indoor unit to be set by pushing
(left side of the button) during
operation.
• The indoor unit number changes each time you
push the button.
* When no unit number is displayed, all indoor units
are selected.
2 Select a louver you want to adjust change by
pushing
(right side of the button).
• Each time you push the button, the display on
the left of the remote controller changes as
follows:
* When no louver number is displayed, all four louvers
are selected.
3
Determine wind direction of the selected
louver by pushing .
• Each time you push the button, the display
changes as follows:
* During COOL (DRY) mode, (4) and (5) are not
displayed.
Not
display
Unit No.
1-1
Unit No.
1-2
Unit No.
1-3
Unit No.
1-4
Not
display
Louver No.
03
01
0204
Refrigerant
pipe
Drain pipe
Electrical control box
(1) (2) (3) (4)
(7) (6) (5)
6
Self clean mode
This function is provided to dry the inside of the indoor unit by the FAN operation after running the cooling
/ dry / AUTO (cooling) mode to keep the indoor unit clean.
• The self clean time varies with the cooling / dry / Auto (cooling) operation time as follows.
• “ ” is displayed on the remote controller during self clean operation.
• The operation lamp (Orange) lights and (Green) does not light on the signal receiving unit during self clean
operation.
To stop self clean forcibly, press START/STOP button twice in succession.
CAUTION
• The fan continues to run even after START/STOP button is pushed to stop operation in some modes.
This is normal because the self clean mode is in progress.
• The louvers open slightly and are directed horizontally during self clean, and they close when the self clean is
completed.
• The self clean mode (function) cannot clean the room or remove the already existing mold and dust inside the indoor
unit.
• To cancel the self clean function, consult the dealer.
Cooling / dry / Auto (cooling) emit naelc flesemit noitarepo
noitarepo naelc fles oNsetunim 01 naht sseL
ruoh1ruoh 1 naht ssel ot setu
nim 01
sruoh2ruoh 1 naht eroM
30-EN29-EN
