PRESET button
Press this button to change the operation mode to
the preferred operation mode memorized
previously. To memorize the operation mode,
press this button for at least 3 seconds during the
preferred operation mode. is displayed and the
operation mode is memorized.
14
SLEEP button
Press this button to start the OFF timer operation
that automatically adjusts the room temperature
and the fan speed.
You can select the OFF timer time from four
durations (1, 3, 5 or 9 hours).
Names and functions of
indications on wireless
remote controller

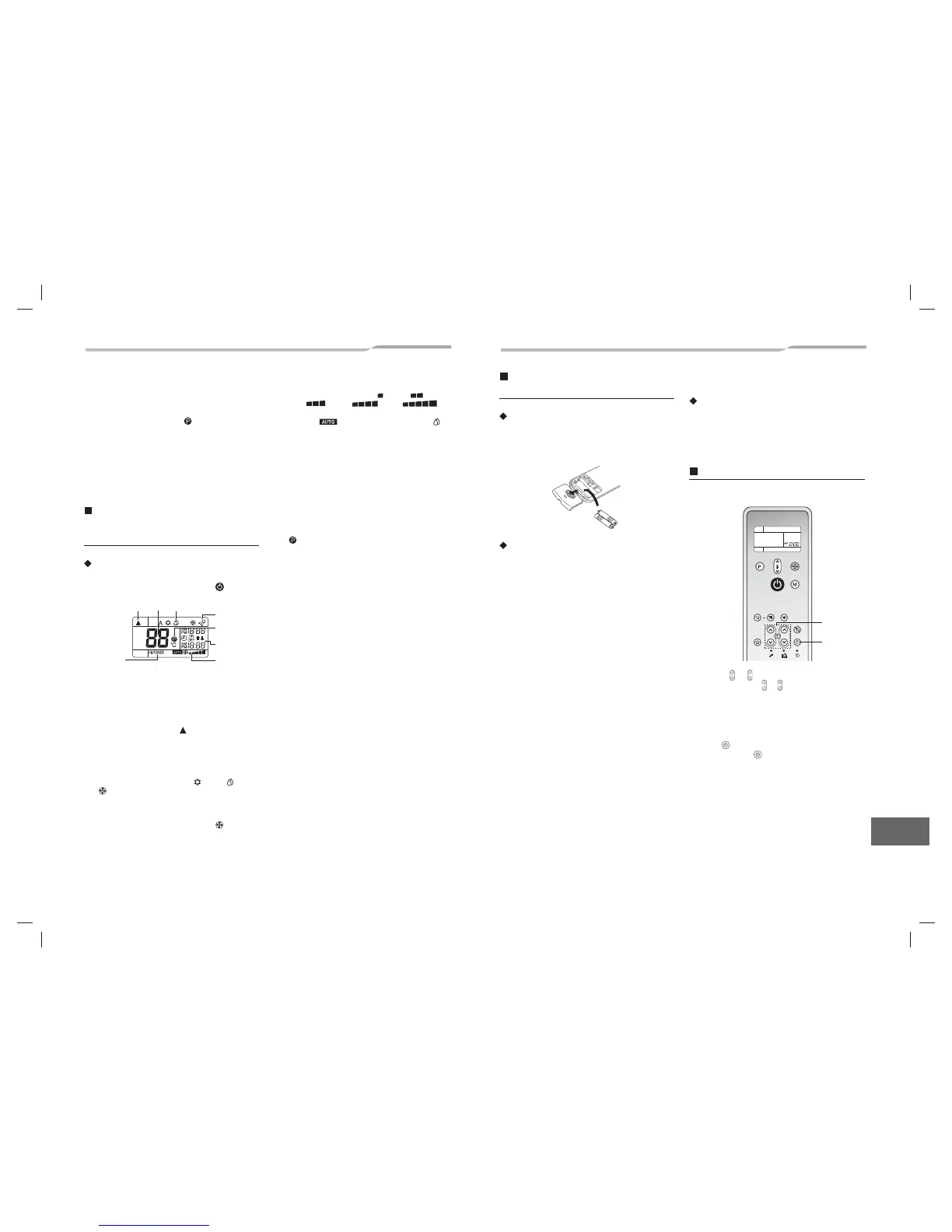

Display
All indications, except for clock time indication, are
indicated by pressing the START/STOP button.
• In the illustration, all indications are indicated for
explanation.
During operation, only the relevant indications will be
indicated on the remote controller.
1 Transmission mark
This transmission mark ( ) indicates when the
remote controller transmits signals to the indoor
unit.
2 Mode display
Indicates the current operation mode.
(A: Auto changeover control, : Cool, : Dry,
: Fan only)
3 Temperature display
Indicates the temperature setting (17 °C to 30 °C).
When you set the operating mode to : Fan only,
no temperature setting is indicated.
4 FAN speed display
Indicates the selected fan speed. AUTO or one of
five fan speed levels (LOW , LOW
+
,
MED , MED
+
, HIGH )
can be indicated.
Indicates when the operating mode is :
Dry.
5 TIMER and clock time display
The time set for timer operation or clock time is
indicated.
The present time is always indicated except for
TIMER operation.
6 Hi POWER display
Indicates when the high power operation starts.
Press the Hi-POWER button to start and press it
again to stop the operation.
7 (PRESET) display
Indicated when memorizing the preferred
operation mode or when it has been memorized.
Also, this icon is indicated when the memorized
preferred operati
on is displayed.
8 Swing display
Indicated during the swinging operation where the
horizontal louver automatically moves up and
down.
Preparation and check before
use
Loading batteries
1
Remove the battery cover.
2 Insert 2 new batteries (R03 [AAA]) following
the (+) and (–) positions.
Batteries
• To replace the batteries, use two new batteries (R03
[AAA]).
• In normal use, the batteries will last about one year.
• Replace the batteries if there is no receiving beep
from the indoor unit or when the air conditioner
cannot be operated using the remote controller.
• To avoid malfunctions by battery leakage, remove
the batteries when not using the remote controller for
more than one month.
3-2. Adjusting clock
Setting the clock
Before you start operating the air conditioner, set the
clock of the remote controller using the procedures
given in this section. The clock panel on the remote
controller will indicate the time regardless of whether
the air conditioner is in use or not.
Initial setting
When batteries are inserted in the remote controller the
clock panel will indicate AM 0:00 and will flash.
1 TIMER or button
Press the TIMER or button to set the current
time.
Each press of the TIMER button changes the time
in one minute steps.
Pressing the TIMER button continually changes
the time in ten minute steps.
2 SET button
Press the SET button.
The current time is indicated and the clock starts.
A
C
L
ON
ON
OFF
OFF
ON OFF
2
1
8
7
5
4
6
12
3
