Carrier 40UV - Page 54

54
2
3
4
1
6
5
FRONT
BRACE
PIPE
CHASE
COIL SECTION
BLOWER SECTION
DAMPER SECTION
COIL SECTION
FILTER DOOR RETAINER
CLIPS (SEE NOTE 3)
COIL BAFFLE
RETURN AIR
TEMPERATURE
SENSOR (OPTIONAL)
OPENING
DISCHARGE AIR
TEMPERATURE
SENSOR (OPTIONAL)
OPENING
MOTOR & COUPLING
SETCREW ACCESS
MOTOR
MOTOR
ELECTRICAL
BOX

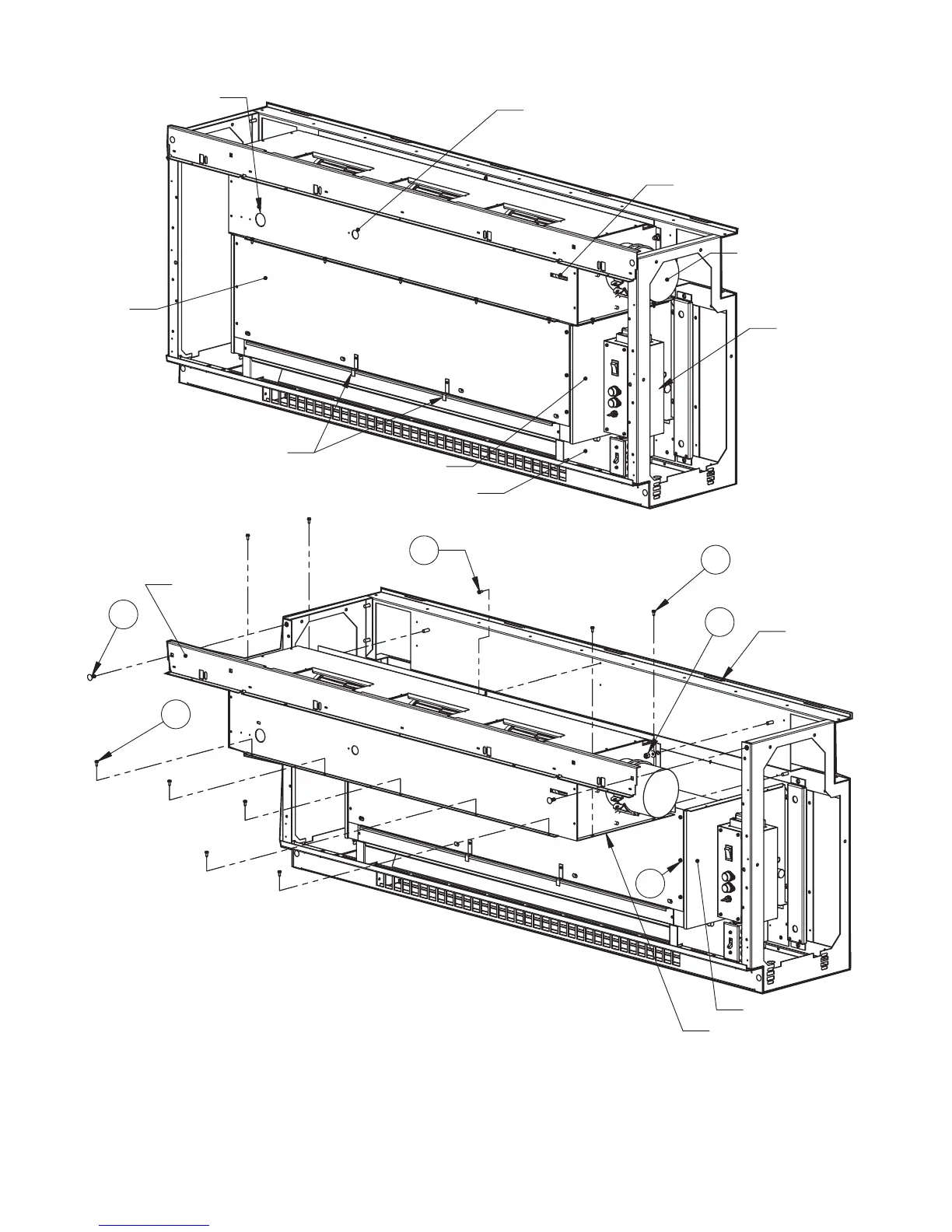

Fig. 37 — 40UV,UH Ventilator Blower Section
NOTES:
1. Unit shown in vertical orientation. Drawing applies
to horizontal and vertical units.
2. Not all components shown for clarity.
3. 40UV,UH125-200 units only.
