Carrier 40UV - Page 60

60
UNIT FRONT (40UV)
UNIT BOTTOM (40UH)
(SEE NOTE 4)
5
4
3
2
6
7
1
12
13
11
10
9
8
LEFT SIDE
VIEW
SEE NOTE 2

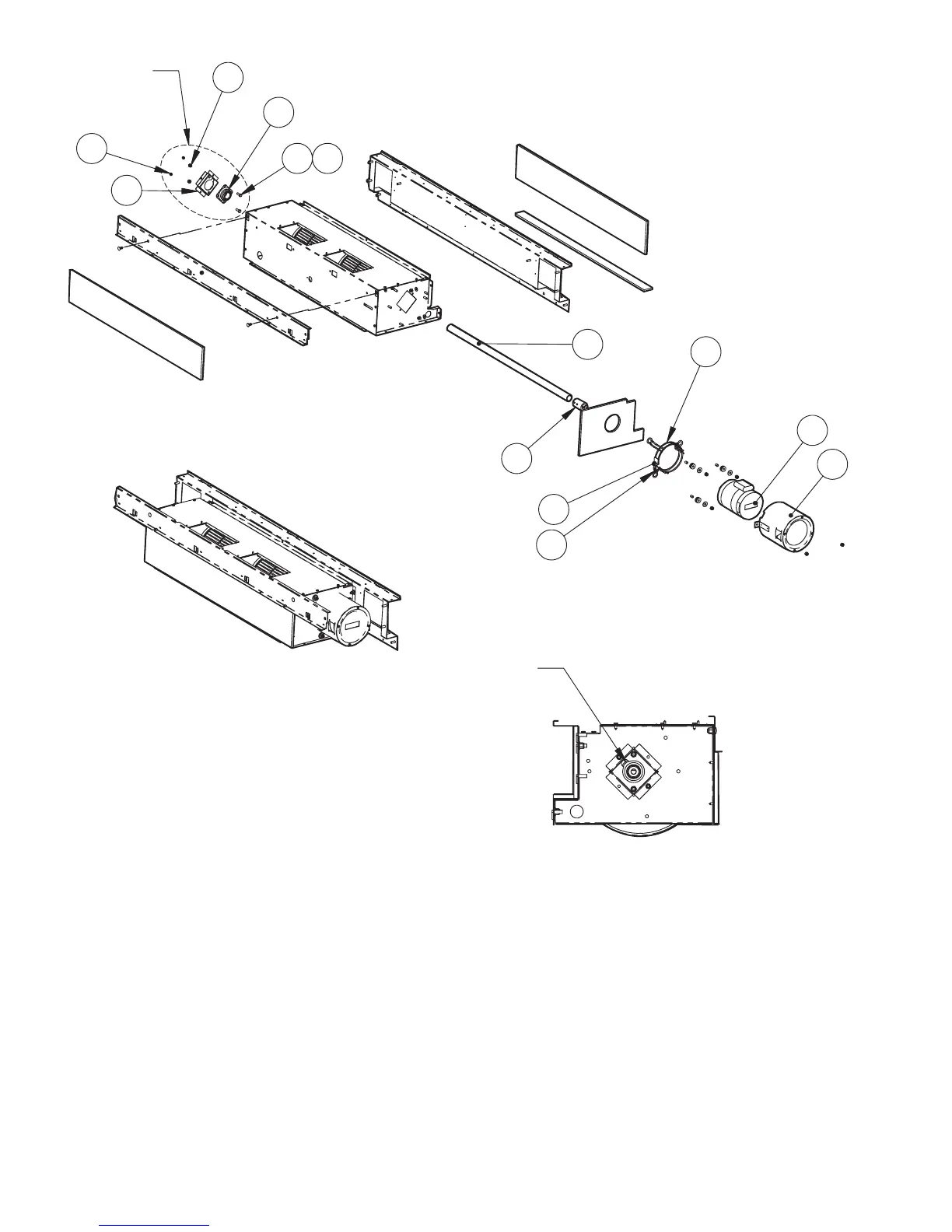

Fig. 42 — 40UV,UH Ventilator Blower Drive Train Assembly —
40UV050-150 and 40UH075-150 Units (ECM Motor)
NOTES:
1. Not all components shown for clarity.
2. Items no. 7, 10 and associated hardware not required for
40UV,UH150. Refer to Fig. 38 for 40UV,UH150 in-board bearing
replacement.
3. Install motor with electrical connections facing front of assembly.
4. Install oil cup facing up and towards the rear of the assembly.
