59
2
3
4
5
6
1
11
12
10
9
SEE NOTE 2
8
7
(SEE NOTE 4)
(SEE NOTE 3)
UNIT FRONT (40UV)
UNIT BOTTOM (40UH)

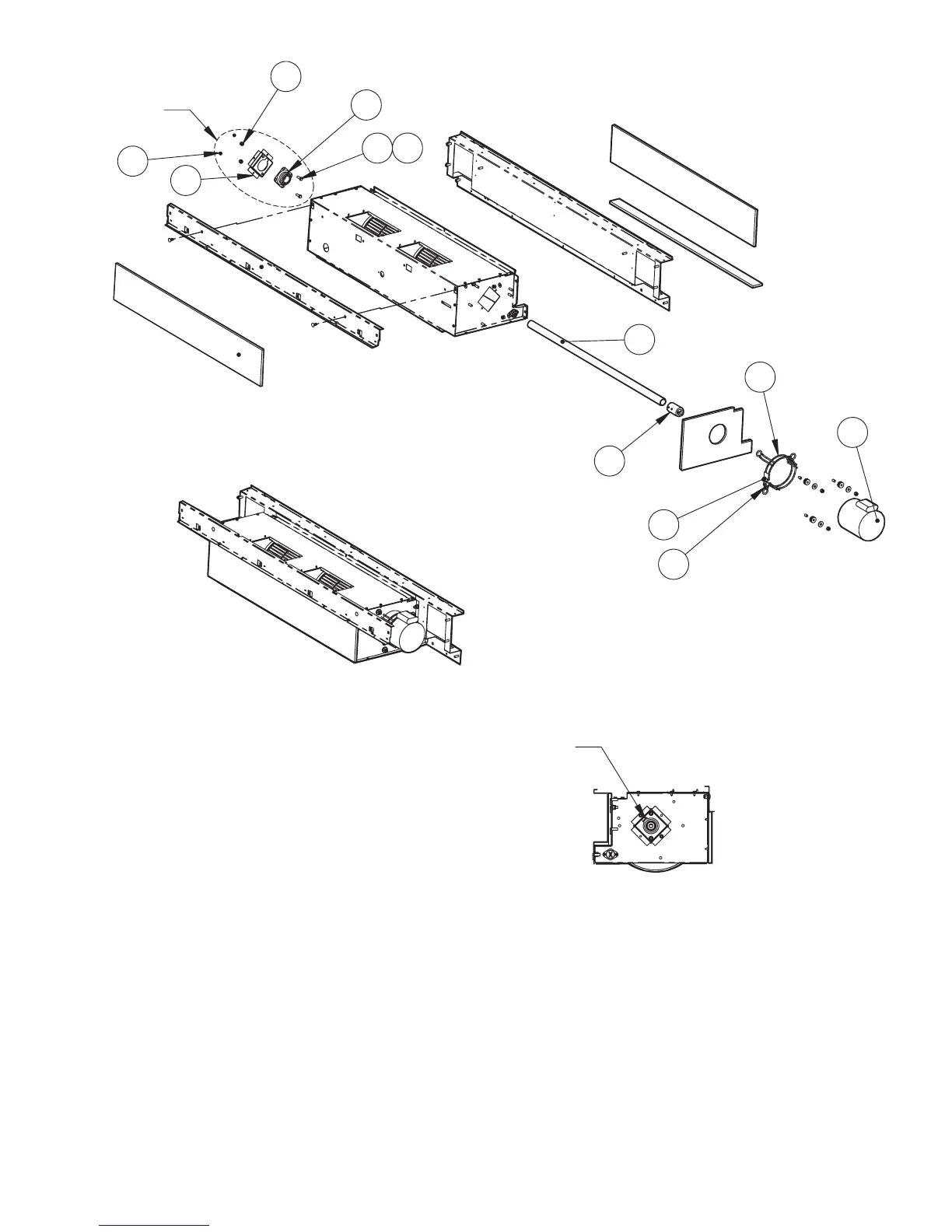

Fig. 41 — 40UV,UH Ventilator Blower Drive Train Assembly —
40UV050-150 and 40UH075-150 Units (PSC Motor)
NOTES:
1. Not all components shown for clarity.
2. Items no. 7, 16 and associated hardware not required for
40UV,UH150. Refer to Fig. 38 for 40UV,UH150 in-board bearing
replacement.
3. Install motor with capacitor facing up.
4. Install sleeve bearing with oil cup facing up and towards the rear of
the assembly.
