120

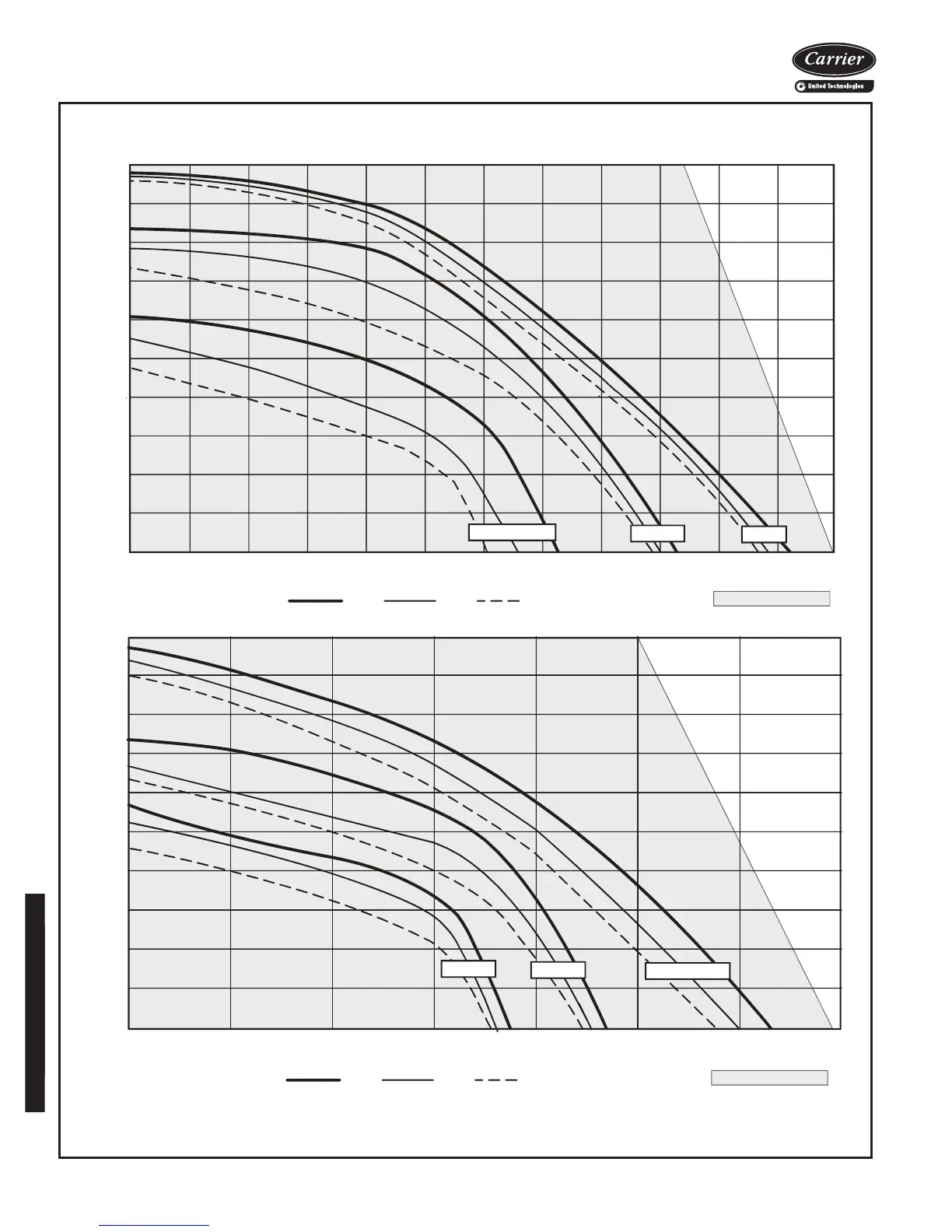

AIR DELIVERY (cont)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
ESP (in. wg)
SCFM
ECM Operating Range:
PSC Motor Fan Curve: 3-Row
5-Row
4-Row
0 100 200 300 400 500 600 700
800 900 1000 1100
1200
Low
Med
High
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
ESP (in. wg)
SCFM
ECM Operating Range:
PSC Motor Fan Curve: 3-Row
5-Row
4-Row
0 200 400 600
800 1000
1200
1400
Low
Med
High
42S SERIES UNIT SIZE 10
42S SERIES UNIT SIZE 12
a42-4363
a42-4364
LEGEND
ECM Electronically Commutated Motor
ESP External Static Pressure
PSC Permanent Split Capacitor
SCFM Square Cubic Feet Per Minute
Performance data (cont)
42S Series Units
