Carrier 42C Series User Manual

70
FRONT VIEW
TOP VIEW
SUPPLY AIR OPENING
ACCESS PANEL
REMOVABLE FRONT
DUCT COLLAR
1" (25) SUPPLY
PLASTIC AUXILIARY 7X7 DRAIN
PAN WITH 3/4" (19) MPT CONNECTION
RETURN AIR OPENING
SUPPLY
AIR
2
(51)
5
(127)
2-1/4
(57)
A
6-1/2
(165)
B
9-1/4
(235)
4
(102)
11-3/4
(298)
25
(635)
3-3/4
(95) *
3-3/4
(95) *
D
MOUNTING HOLES
RIGHT SIDE VIEW
AIR
RETURN
2-7/8
(73)
C
5-1/2
(140)
STD.
OPTIONAL CONTROL BOX
SHOWN (STD IS 2X4 J-BOX)
2
(51)
DRAIN
TROUGH
SUPPLY
& RETURN
WATER
CONNECTIONS
AIR VENT
9 1/4
(235)
1
(25)
8-1/4
(210)
1" (25)
FILTER
14-1/2
(368)
16-1/8
(410)
1/2" (13)
MOUNTING
HOLES
(TYP OF 4)
4
(102)
1/2(2X)
(13)
4-1/2
(114)
(DIMENSION
FROM
INSIDE
CASE LEG)
(DIMENSION
FROM
MOUNTING
HOLE)
STRIP HEATER
HIGH LIMIT
ELECTRIC
STRIP
HEATER
ELEMENT
2-1/2
(64)

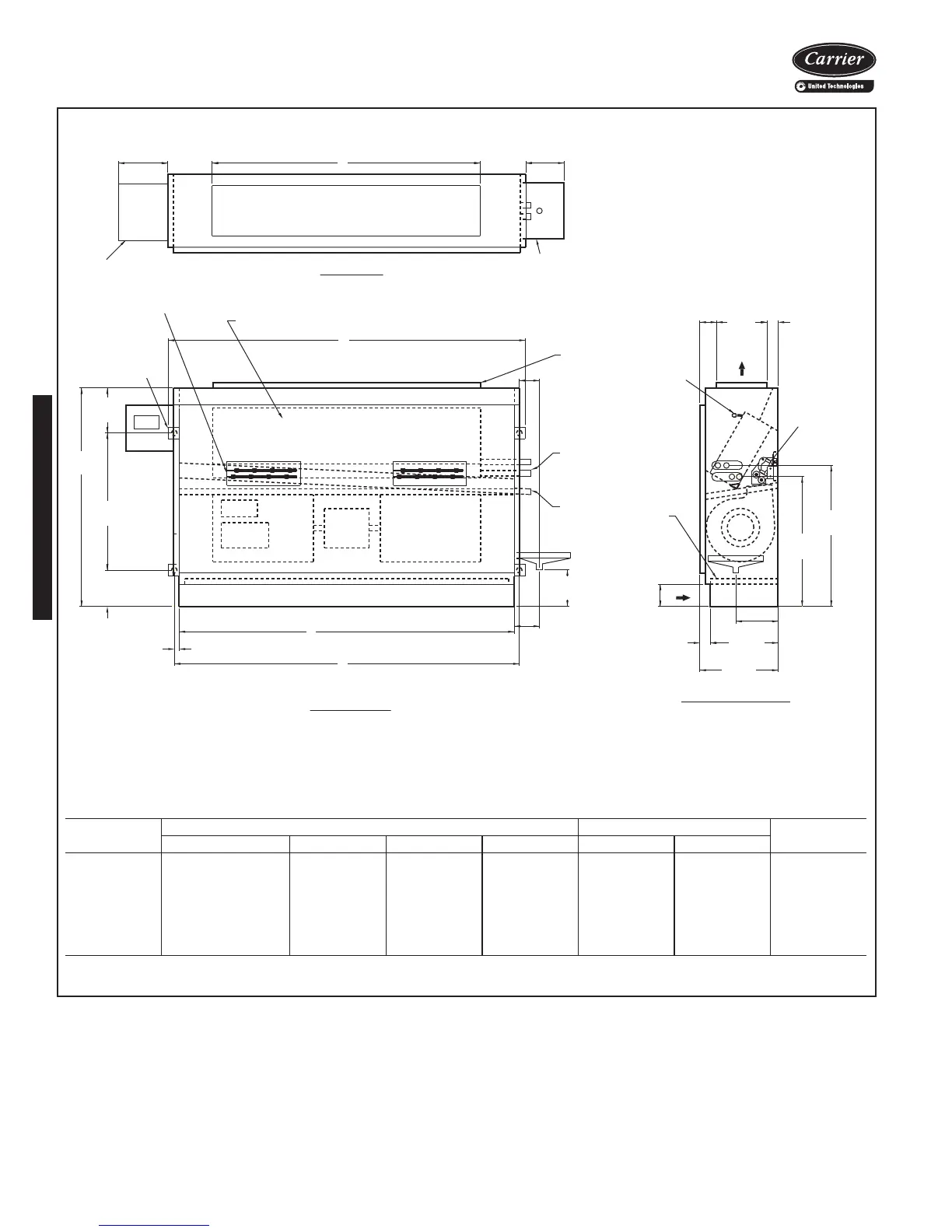

42VA FURRED-IN VERTICAL UNIT WITH ELECTRIC HEATER
*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.
UNIT
SIZE
DIMENSIONS (in.) QTY/UNIT
UNIT WEIGHT*
(lb)
A BCD
Blower Motor
02 24
3
/
16
22 23 16 1 1 42
03 24
3
/
16
22 23 18 1 1 47
04 34
3
/
16
32 33 26 2 1 57
06 44
3
/
16
42 43 36 2 1 77
08 46
3
/
16
44 45 38 2 1 79
10 60
3
/
16
58 59 52 4 2 108
12 68
3
/
16
66 67 60 4 2 127
NOTES:
1. All dimensions are ± 1/4-in. (6).
2. Standard 3-row coil shown.
3. Right hand unit shown, left hand unit is opposite.
4. Dimensions shown in inches (mm).
Base unit dimensions (cont)
42V Series Units

Carrier 42C Series Specifications

General

Brand	Carrier
Model	42C Series
Category	Air Conditioner
Language	English
